0743001143: Description2.00mm; File Size149KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

0743001143 Overview

2.00mm

Preview

Download Datasheet

View All

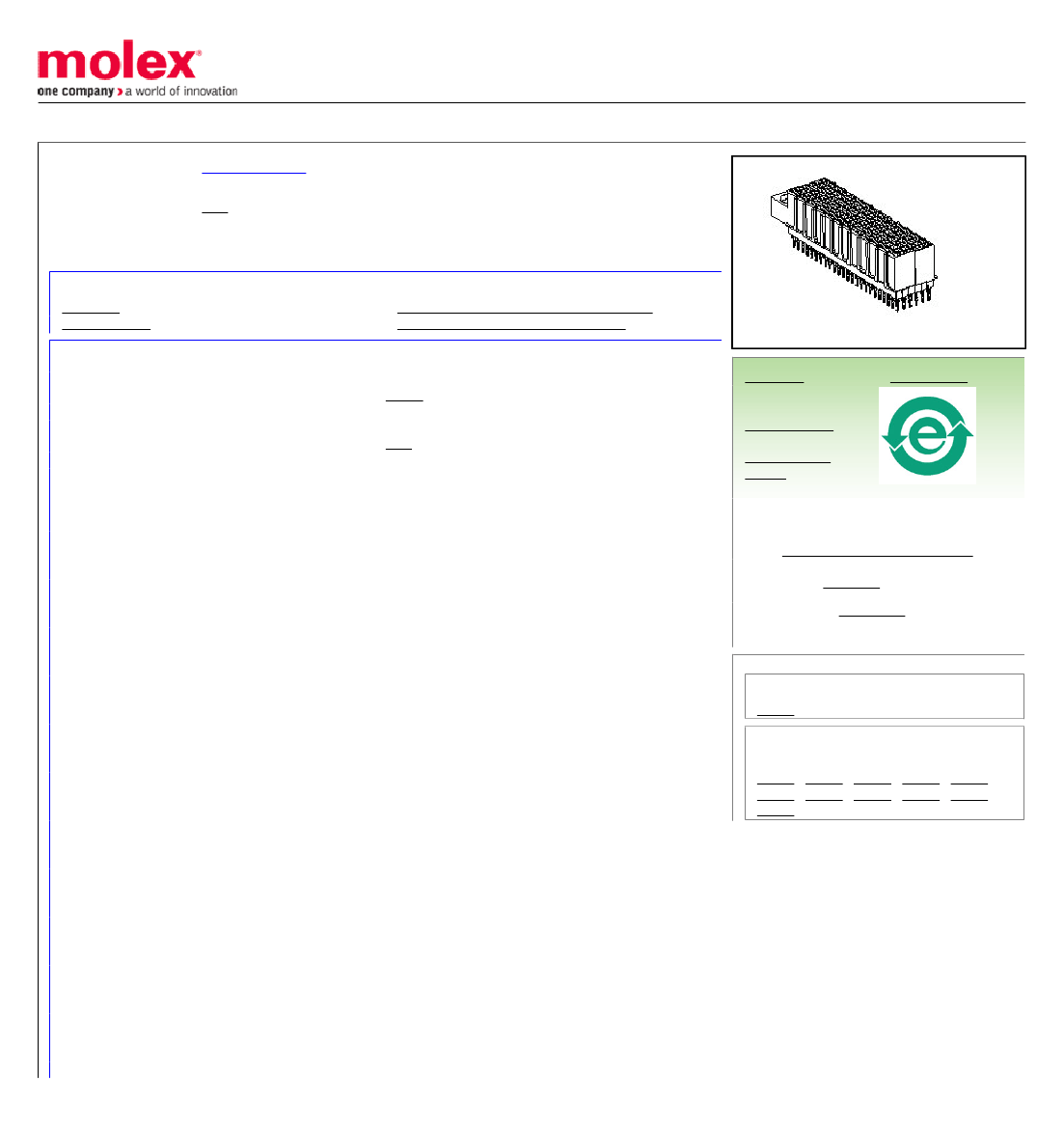

This document was generated on 05/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0743001143

Active

hdm

2.00mm (.079") Pitch HDM® Board-to-Board Daughtercard Receptacle, Vertical, Signal

Module, with Guide, 144 Circuits, Mounted Height 13.00mm (.512"), Press-Fit Pin

Length 3.00mm (.118"), Lead-Free

Documents:

3D Model

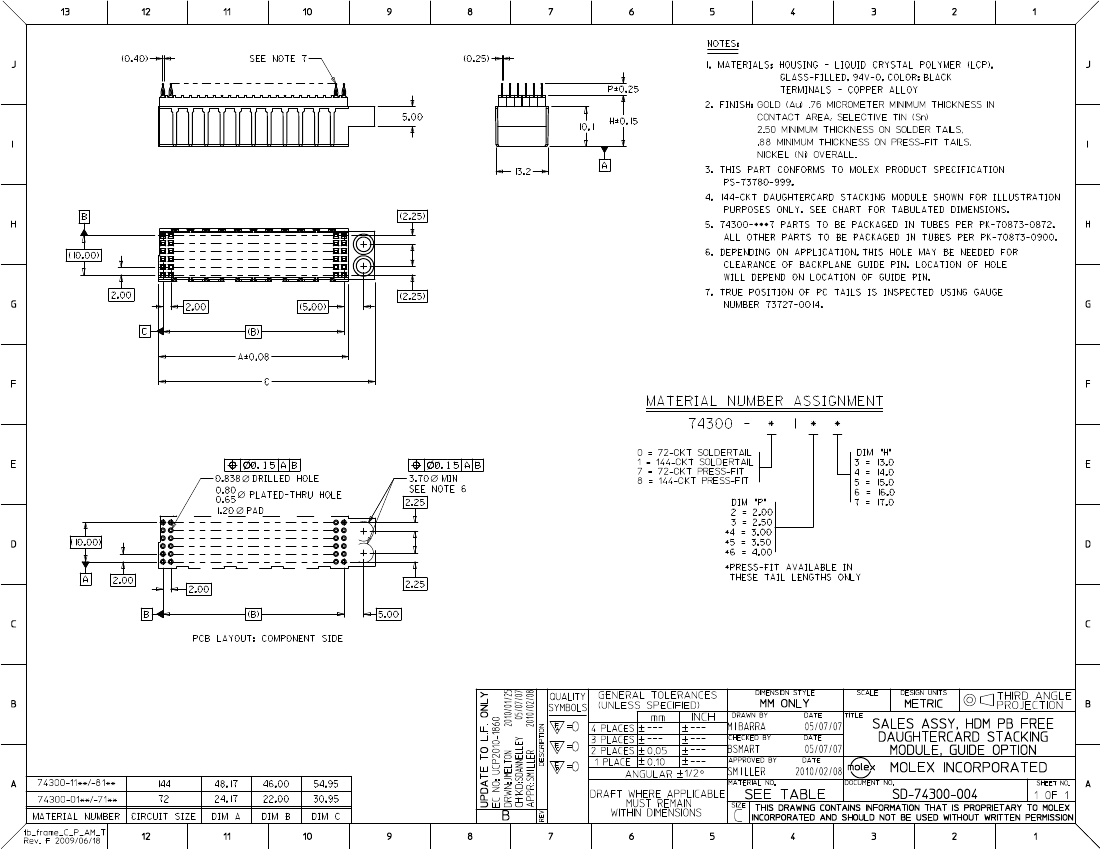

Drawing (PDF)

Product Specification PS-73780-999 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

Backplane Connectors

74300

Daughtercard, Mezzanine

PCB Receptacle

hdm

HDM®

N/A

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

144

Black

250

Yes

None

Copper-Nickel-Tin

Gold

Matte Tin

High Temperature Thermoplastic

Open Pin Field

Vertical

0.118 In

3.00 mm

None

0.063 In

1.60 mm

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.76

100

2.50

Yes

-55°C to +105°C

Through Hole - Compliant Pin

Search Parts in this Series

74300Series

Mates With

HDM® Board-to-Board Backplane Header

73642 , 73643 , 73644 , 74349 , 74428 ,

73769 , 73781 , 73770 , 73782 , 73783 ,

73771
