Part Number:
Status:
Overview:
Description:
0746502503
Active
vhdm__hsd
2.00mm (.079") Pitch 8-Row VHDM-HSD™ Backplane Header, Guide Pin Signal
Module, Pin End Version, 150 Circuits, Pin Length 4.25mm (.167")
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
image - Reference only
EU RoHS
China RoHS
RoHS Compliant by
Exemption
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
General
Product Family
Series
Application
Application Tooling Documents
Comments
Component Type
Overview
Product Name
Style
Backplane Connectors
74650
Backplane
<a href="http://www.molex.com/pdm_docs/ats/
TM-622010999.pdf">Tooling Manual</a>
No Keying Position
PCB Header
vhdm__hsd
VHDM-HSD™
N/A
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Guide to Mating Part
Keying to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Columns
Number of Pairs
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
150
150
Black
200
No
94V-0
Yes
None
Copper-Nickel-Silicon, High Performance Alloy (HPA),
Stainless Steel
Gold
Tin-Lead
High Temperature Thermoplastic
25
Open Pin Field
8
Vertical
0.098 In
2.50 mm
No
None
0.070 In
1.80 mm
Tube
0.079 In
2.00 mm
0.079 In
2.00 mm
30
0.75
30
Search Parts in this Series
74650Series
Mates With
HSD Daughtercards 74680 , 74686
Use With
Daughtercard Modules
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
VHDM® Signal Pin 0622015700
Inserter Repair Tool
VHDM® Insertion
0622020206
Module for Advanced
Mate Signal Header,
6 Row by 25 Wide,
50.00mm (1.97")
Plating min: Termination (µm)
Polarized to PCB
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
0.75
Yes
Yes
Yes
-55°C to +105°C
Through Hole - Compliant Pin
Electrical
Current - Maximum per Contact
Data Rate
Real Signals (per 25mm)
Shield Type
Shielded
Voltage - Maximum
1A
5.0 Gbps
72
Ground Plane Shield
Yes
250V
Material Info
Reference - Drawing Numbers
Packaging Specification

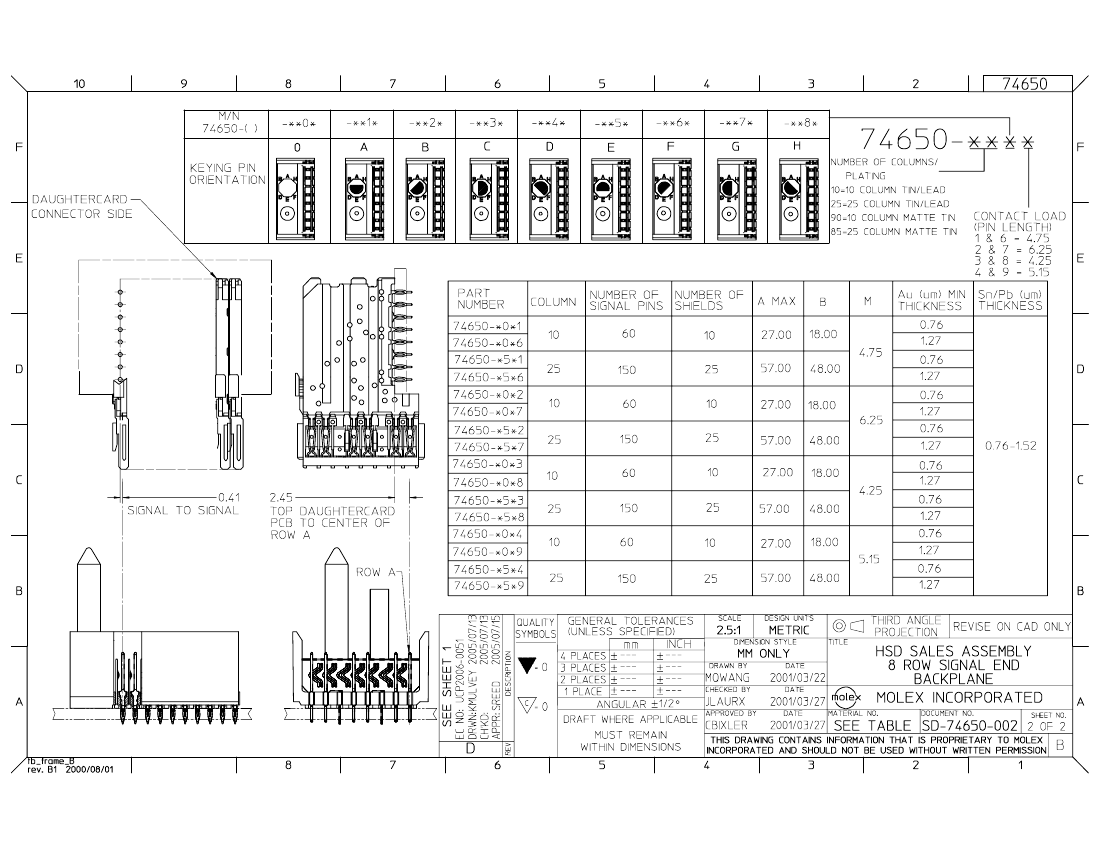

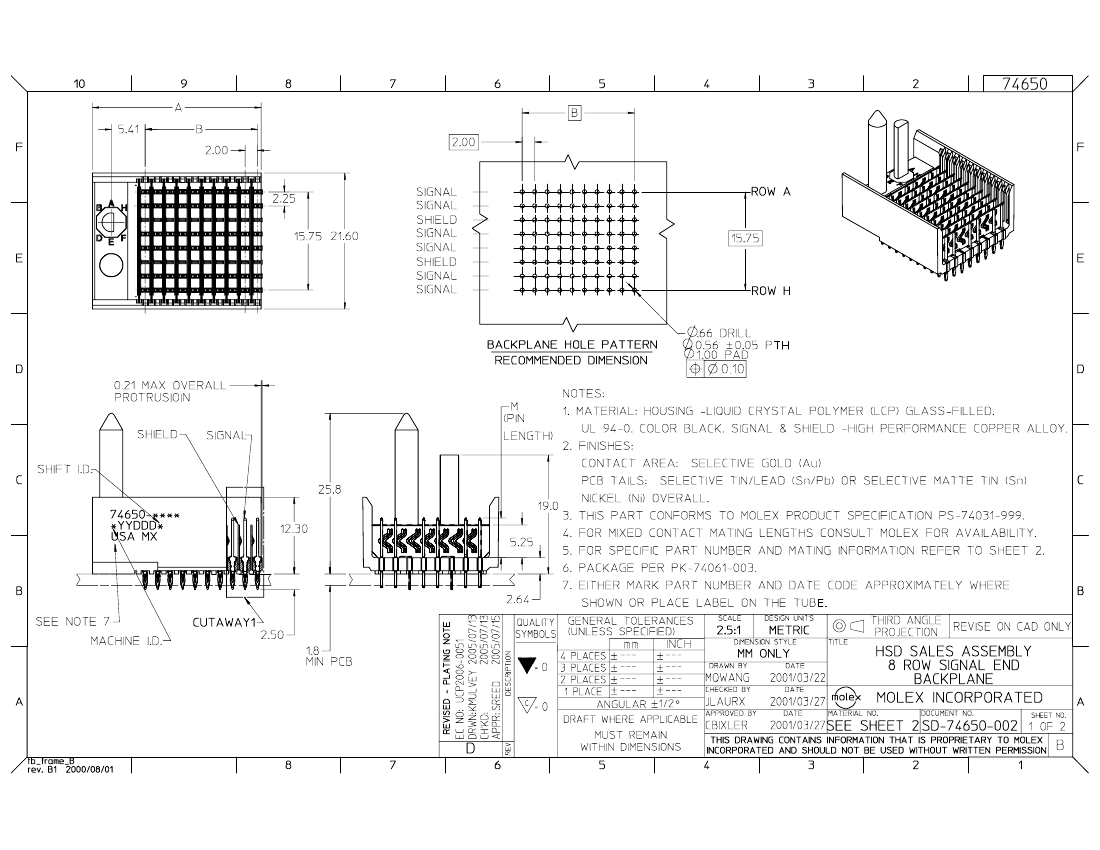

Sales Drawing
VHDM-HSD is a trademark of Amphenol Corporation
PK-74061-003
SD-74650-002
