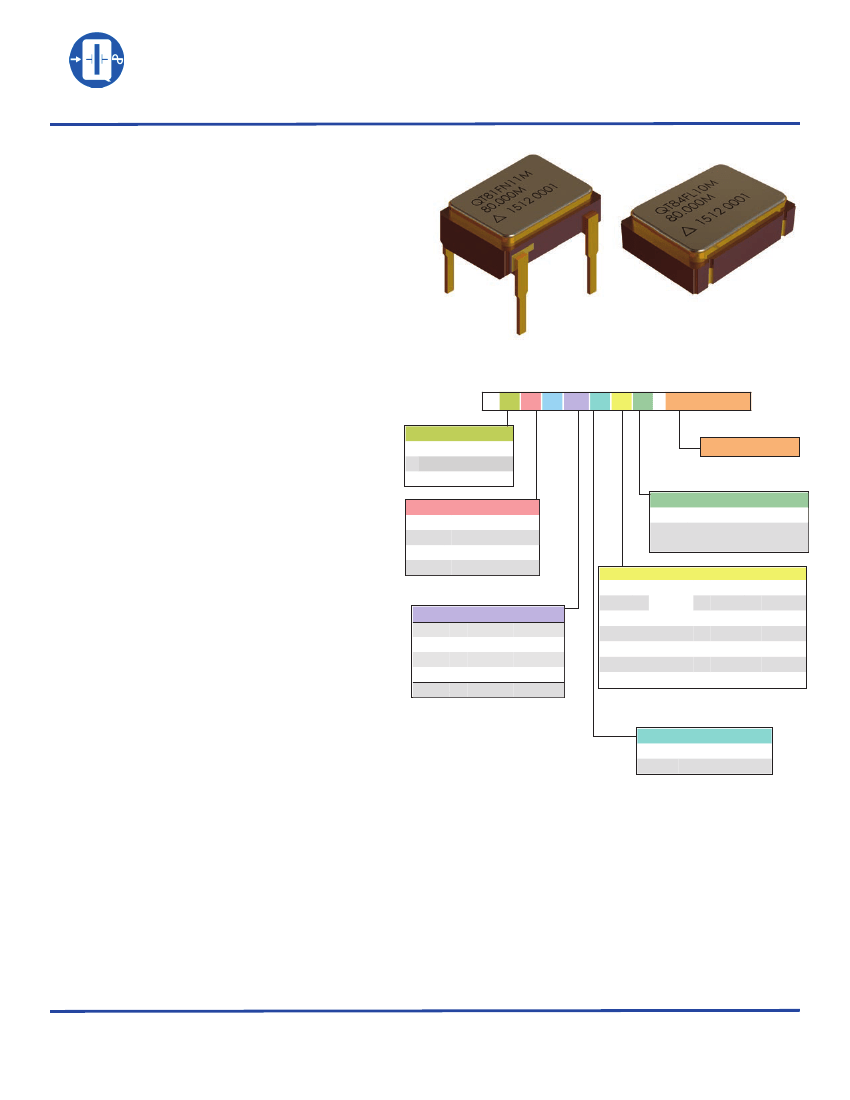

QT81F SERIES
Q-TECH
CORPORATION
5x7mm 4-Point Mount Extreme High Shock Resistant Crystal Oscillator
1.8V, 2.5V, 3.3V, 5Vdc | 500kHz to 156.25MHz
Description
Q-Tech’s 5x7mm low profile extreme high shock
hybrid oscillators consist of an IC operating at various
supply voltages from 1.8V, 2.5V, 3.3V, and 5.0Vdc
and a miniature strip quartz crystal. The series is
offered in various ceramic package configurations
from true Surface-Mount SMT to straight leads and
formed leads. This is the smallest package offered
with a four-point crystal mount for high shock and
high reliability military applications.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Made in the USA
ECCN: EAR99
Innovative Four Point Mount Strip Crystal Resonator
Broad Frequency Range, 500kHz to 156.25MHz
Small Footprint
CMOS, LVHCMOS, TTL Logic
Various Supply Voltages, 1.8Vdc to 5.0Vdc
Wide Operating Temperature Range, -55°C to 125°C
Tri-State Output (Option D)
Hermetically sealed package
Fundamental and 3rd Overtone Designs
Full or Partial Screening per MIL-PRF-55310, Level B
High Shock Resistant Tested Up to 20,000g
Mechanical Shock, Half-Sine, 0.3ms, All Axes
• Tape and Reel Packaging
• Optional Hot Solder Dip, Sn60Pb40 or SAC305
• RoHS Compliant
Solder Dip Options
T = Standard
(*)
S = Sn60Pb40
G = SAC305
Q T 81F L D 10 M - 50 . 0 0 0M H z
Q T 81 F L D 10 M - 100.000MHz
Output Frequency
Screening Option:
Blank = No Screening
= Screening per MIL-
M
PRF-55310, Level B
(Sample part number)
Materials Level
81, 86=Leaded
82, 87=Formed Leads
83, 80=Formed Leads
84, 85=SMT
Logic & Supply Voltage:
HC = HCMOS +5V
T = TTL
+5Vdc
L = CMOS +3.3V
N = CMOS +2.5V
R = CMOS +1.8V
Frequency vs. Temperature Code (***):
7 = ± 75ppm at -55ºC to +125°C
9 = ± 50ppm at -55ºC to +125°C
10 = ± 100ppm at -55ºC to +125°C
11 = ± 50ppm at -40ºC to +85°C
12 = ± 100ppm at -40ºC to +85°C
17 = ± 75ppm at -60ºC to +125°C
18 = ± 100ppm at -60ºC to +125°C
Tristate Option:
Blank = No Tristate
D = Tristate
1/
Please
contact Q-Tech for higher frequencies
Applications
•
•
•
•
•
•
Designed to Meet High Shock Requirements
Missile Launch
Gun-Launched Munitions and Systems
Avionics
Navigation On-Board System
Oil-Drilling and Exploration Equipment
P
ackagingOptions
• Standard ESD packaging
QPDS-0017R- May 2015
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
1 of 13
QT81F SERIES
Q-TECH
CORPORATION
5x7mm 4-Point Mount Extreme High Shock Resistant Crystal Oscillator
1.8V, 2.5V, 3.3V, 5Vdc | 500kHz to 156.25MHz
TABLE I-ELECTRICAL CHARACTERISTICS (+5Vdc
± 10%)
PARAMETERS
LIMITS
Supply Voltage (Vdd)
Maximum Applied Voltage (Vdd max.)
Operating Temperature (Top)
Storage temperature (Tsto)
Supply current (Idd)
Load
Duty Cycle (Sym)
Output Frequency Range (Fo)
Rise and Fall Times (Tr/Tf)
Start-Up Time (Tstup)
Output Voltage High (VOH)
Output Voltage Low (VOL)
Enable/Disable (Tristate Option – D)
Aging at +70°C ± 3°C
±5ppm First Year Max.
±2ppm Max. Each Year Thereafter
Period Jitter 1σ (RMS)
5ps Typ.
By Design; Not Tested
Integrated Phase Jitter
1ps Max.
12kHz to 20MHz
10Hz Offset -78dBc/Hz
QS83HC -40MHz at +5Vdc
100Hz Offset -109dBc/Hz
Typical by Design
1kHz Offset -130dBc/Hz
Phase Noise (Typical)
Not Tested Unless Specified
10kHz Offset -135dBc/Hz
100kHz Offset -145dBc/Hz
100kHz Offset -150dBc/Hz
g-Sensitivity
3ppb/g Typ.
By Design; Not Tested
1/ Consult factory for different load. Capable to drive up to 50pF.
+5Vdc ± 10%
+7Vdc
See Ordering Information
-62°C to +125°C
20mA Max. 500kHz – <16MHz
No Load
25mA Max. 16MHz – <32MHz
35mA Max. 32MHz – 70MHz
15pF//10kΩ or 6TTL to 10TTL
Note 1/
45/55% Max. 500kHz – <16MHz
Measured at ½ Vdd (CMOS)
40/60% Max. 16MHz – 70MHz
or 1.4V (TTL)
6ns Max. for Fo < 40MHz
Measured Between 10% and 90%
3ns Max. for Fo ≥ 40MHz
or 0.8V to 2.0V (TTL)
10ms Max.
0.9*Vdd Min. (CMOS)
2.4Vdc Min. (TTL)
0.1*Vdd Max. (CMOS)
0.4Vdc Max. (TTL)
VIH ≥ 2.2Vdc Oscillation
VIL ≤ 0.8Vdc High Impedance
500kHz – 70MHz
Consult Factory for
Lower and Higher Frequencies
COMMENTS
QPDS-0017R- May 2015
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
2 of 13
QT81F SERIES
Q-TECH
CORPORATION
5x7mm 4-Point Mount Extreme High Shock Resistant Crystal Oscillator
1.8V, 2.5V, 3.3V, 5Vdc | 500kHz to 156.25MHz
TABLE II-ELECTRICAL CHARACTERISTICS (+3.3VdC
± 10%)
PARAMETERS
LIMITS
Supply Voltage (Vdd)
Maximum Applied Voltage (Vdd max.)
Operating Temperature (Top)
Storage temperature (Tsto)
Supply current (Idd)
Load
Output Frequency Range (Fo)
Duty Cycle (Sym)
Rise and Fall Times (Tr/Tf)
Start-Up Time (Tstup)
Output Voltage High (VOH)
Output Voltage Low (VOL)
Aging at +70°C ± 3°C
Enable/Disable (Tristate Option – D)
±5ppm First Year Max.
±2ppm Max. Each Year Thereafter
Period Jitter 1σ (RMS)
5ps Typ.
By Design; Not Tested
Integrated Phase Jitter
1ps Max.
12kHz to 20MHz
10Hz Offset -78dBc/Hz
100Hz Offset -109dBc/Hz
QS83L-32MHz at +3.3Vdc
1kHz Offset -130dBc/Hz
Phase Noise (Typical)
Typical by Design
10kHz Offset -135dBc/Hz
Not Tested Unless Specified
100kHz Offset -145dBc/Hz
100kHz Offset -150dBc/Hz
g-Sensitivity
3ppb/g Typ.
By Design; Not Tested
1/ Consult factory for different load. Capable to drive up to 30pF.
6mA Max. 500kHz – <16MHz
10mA Max. 16MHz – <32MHz
No Load
20mA Max. 32MHz – <70MHz
30mA Max. 70MHz – <100MHz
40mA Max. 100MHz – 156.25MHz
15pF//10kΩ
Note 1/
45/55% Max. 500kHz – <16MHz
Measured at ½ Vdd (CMOS)
40/60% Max. 16MHz – 156.25MHz
or 1.4V (TTL)
6ns Max. for Fo < 40MHz
Measured Between 10% and 90%
3ns Max. for Fo ≥ 40MHz
10ms Max.
0.9*Vdd Min. (CMOS)
0.1*Vdd Max. (CMOS)
VIH ≥ 2.2Vdc Oscillation
VIL ≤ 0.8Vdc High Impedance
+3.3Vdc ± 10%
+5Vdc
See Ordering Information
-62°C to +125°C
500kHz – 156.25MHz
Consult Factory for
Lower and Higher Frequencies
COMMENTS
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
QPDS-0017R- May 2015
3 of 13
QT81F SERIES
Q-TECH
CORPORATION
5x7mm 4-Point Mount Extreme High Shock Resistant Crystal Oscillator
1.8V, 2.5V, 3.3V, 5Vdc | 500kHz to 156.25MHz
TABLE III-ELECTRICAL CHARACTERISTICS (+2.5VdC
± 10%)
PARAMETERS
LIMITS
Supply Voltage (Vdd)
Maximum Applied Voltage (Vdd max.)
Operating Temperature (Top)
Storage temperature (Tsto)
Output Frequency Range (Fo)
6mA Max. 500kHz – <40MHz
15mA Max. 40MHz – <60MHz
Supply current (Idd)
No Load
25mA Max. 60MHz – <85MHz
35mA Max. 85MHz – 133MHz
Load
15pF//10kΩ
Note 1/
45/55% Max. 500kHz – <16MHz
Duty Cycle (Sym)
Measured at ½ Vdd (CMOS)
40/60% Max. 16MHz – 133MHz
6ns Max. for Fo < 40MHz
Rise and Fall Times (Tr/Tf)
Measured Between 10% and 90%
3ns Max. for Fo ≥ 40MHz
Start-Up Time (Tstup)
10ms Max.
Output Voltage High (VOH)
0.9*Vdd Min. (CMOS)
Output Voltage Low (VOL)
0.1*Vdd Max. (CMOS)
VIH ≥ 0.7*Vdd Oscillation
Enable/Disable (Tristate Option – D)
VIL ≤ 0.3*Vdd High Impedance
±5ppm First Year Max.
Aging at +70°C ± 3°C
±2ppm Max. Each Year Thereafter
Period Jitter 1σ (RMS)
5ps Typ.
By Design; Not Tested
Integrated Phase Jitter
1ps Max.
12kHz to 20MHz
10Hz Offset -74dBc/Hz
100Hz Offset -107dBc/Hz
QS81N-80MHz at +2.5Vdc
1kHz Offset -130dBc/Hz
Phase Noise (Typical)
Typical by Design
10kHz Offset -135dBc/Hz
Not Tested Unless Specified
100kHz Offset -145dBc/Hz
100kHz Offset -150dBc/Hz
g-Sensitivity
3ppb/g Typ.
By Design; Not Tested
1/ Consult factory for different load. Capable to drive up to 30pF.
+2.5Vdc ± 10%
+5Vdc
See Ordering Information
-62°C to +125°C
500kHz – 133MHz
Consult Factory for
Lower and Higher Frequencies
COMMENTS
QPDS-0017R- May 2015
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
4 of 13
QT81F SERIES
Q-TECH
CORPORATION
5x7mm 4-Point Mount Extreme High Shock Resistant Crystal Oscillator
1.8V, 2.5V, 3.3V, 5Vdc | 500kHz to 156.25MHz
TABLE IV-ELECTRICAL CHARACTERISTICS (+1.8VdC±10%)
PARAMETERS
LIMITS
Supply Voltage (Vdd)
Maximum Applied Voltage (Vdd max.)
Operating Temperature (Top)
Storage temperature (Tsto)
Output Frequency Range (Fo)
4mA Max. 500kHz – <40MHz
10mA Max. 40MHz – <50MHz
Supply current (Idd)
No Load
20mA Max. 50MHz – <85MHz
25mA Max. 85MHz – 100MHz
Load
15pF//10kΩ
Note 1/
445/55% Max. 500kHz – <16MHz
Duty Cycle (Sym)
Measured at ½ Vdd (CMOS)
40/60% Max. 16MHz – 133MHz
6ns Max. for Fo < 40MHz
Rise and Fall Times (Tr/Tf)
Measured Between 10% and 90%
3ns Max. for Fo ≥ 40MHz
Start-Up Time (Tstup)
10ms Max.
Output Voltage High (VOH)
0.9*Vdd Min. (CMOS)
Output Voltage Low (VOL)
0.1*Vdd Max. (CMOS)
VIH ≥ 0.7*Vdd Oscillation
Enable/Disable (Tristate Option – D)
VIL ≤ 0.3*Vdd High Impedance
±5ppm First Year Max.
Aging at +70°C ± 3°C
±2ppm max. Each Year Thereafter
Period Jitter 1σ (RMS)
5ps Typ.
By Design; Not Tested
Integrated Phase Jitter
1ps Max.
12kHz to 20MHz
10Hz Offset -74dBc/Hz
100Hz Offset -107dBc/Hz
QS81R-80MHz at +1.8V
1kHz Offset -130dBc/Hz
Typical by Design
Phase Noise (Typical)
10kHz Offset -135dBc/Hz
Not Tested Unless Specified
100kHz offset -145dBc/Hz
100kHz Offset -150dBc/Hz
g-Sensitivity
3ppb/g Typ.
By Design; Not Tested
1/ Consult factory for different load. Capable to drive up to 30pF.
+1.8Vdc ± 10%
+5Vdc
See Ordering Information
-62°C to +125°C
500kHz – 100MHz
Consult Factory for
Lower and Higher Frequencies
COMMENTS
QPDS-0017R- May 2015
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-tech.com
5 of 13
