AT-263

Description
0 MHz - 2000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3 dB INSERTION LOSS-MAX
CategoryTopical application    Wireless rf/communication
File Size107KB,3 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric View All

AT-263 Online Shopping

Suppliers Part Number Price MOQ In stock
AT-263 - - View Buy Now

AT-263 Overview

0 MHz - 2000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 3 dB INSERTION LOSS-MAX

AT-263 Parametric

Parameter NameAttribute value
Maximum operating temperature125 Cel
Minimum operating temperature-55 Cel
Maximum input power2.5 W
Maximum operating frequency2000 MHz
Minimum operating frequency0.0 MHz
Processing package descriptionROHS COMPLIANT, HERMETIC SEALED, CERAMIC, CR-12, 16 PIN
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
Maximum voltage standing wave ratio1.6
structureCOMPONENT
terminal coatingNOT SPECIFIED
Impedance characteristics50 ohm
Rated attenuation31 dB
Maximum insertion loss3 dB
Microwave RF TypeVARIABLE

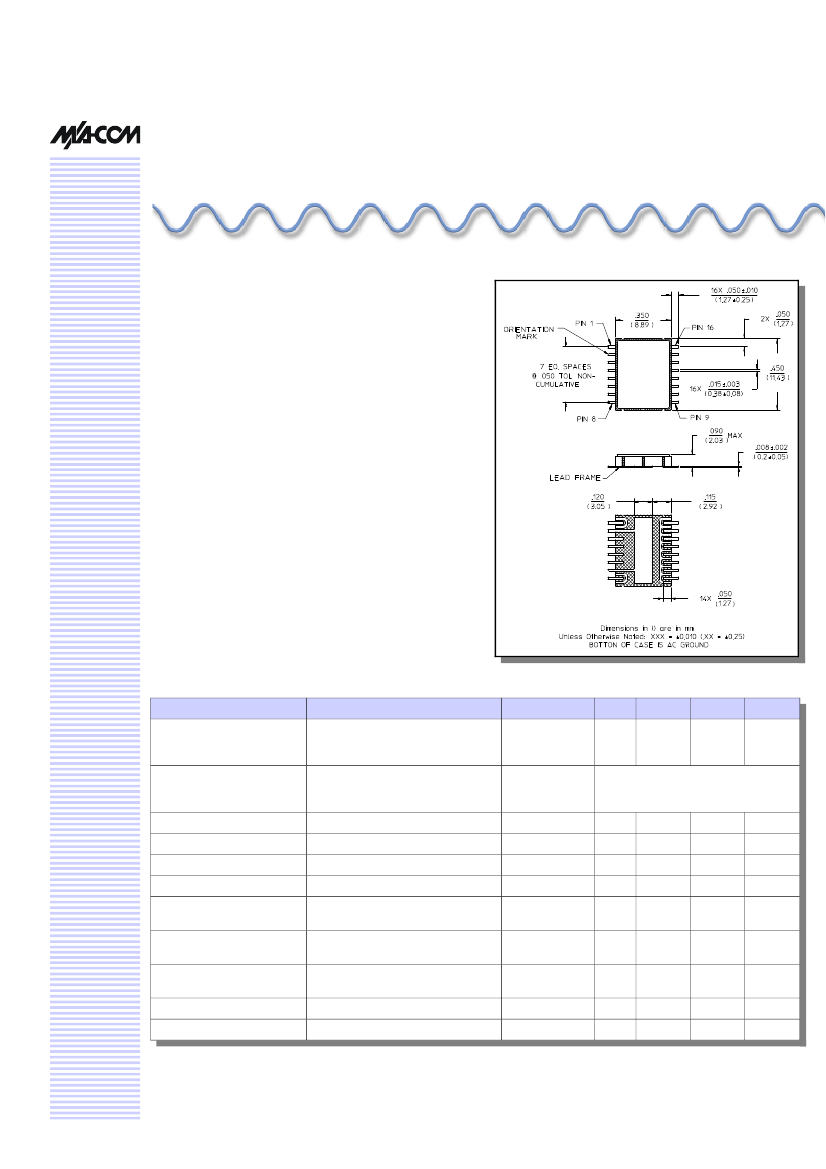

Digital Attenuator, 31 dB, 5-Bit,
TTL Driver, DC - 2 GHz
V 3.00
AT-263
Features
n
Attenuation: 1 dB steps to 31 dB
n
Temperature Stability: ± 0.18 dB from –55°C to +85°C
n
n
n
n
CR-12
Typical
Low DC Power Consumption
Hermetic Surface Mount Package
Integral TTL Driver
50 Ohm Nominal Impedance
Description
M/A-COM’s AT-263 is a GaAs FET 5-bit digital
attenuator with a 1 dB minimum step size and 31 dB total
attenuation. This attenuator and integral TTL driver is in a
hermetically sealed ceramic 16-lead surface mount package.
The AT-263 is ideally suited for use where accuracy, fast
switching, very low power consumption and low
intermodulation products are required. Typical applications
include dynamic range setting in precision receiver circuits
and other gain/leveling control circuits. Environmental
screening is available. Contact the factory for information.
Electrical Specifications
1
(From –55°C to +85°C)
Parameter
Reference Insertion Loss
Test Conditions
Frequency
DC - 0.5 GHz
DC - 1.0 GHz
DC - 2.0 GHz
DC - 1.0 GHz
DC - 2.0 GHz
DC - 2.0 GHz
0.05 GHz
0.5 - 2.0 GHz
0.05 GHz
0.5 - 2.0 GHz
0.05 GHz
0.5 - 2.0 GHz
Units
dB
dB
dB
Min
Typ
Max
2.4
2.8
3.0
Attenuation Accuracy
2
Any Single Bit
Any Combination of Bits
10% to 90%
50% Control to 90/10% RF
In-Band (peak-peak)
Input Power
Input Power
For two-tone Input Power
Up to +5 dBm
For two-tone Input Power
Up to +5 dBm
± (0.25 +3% of atten setting in dB) dB
± (0.25 +3% of atten setting in dB) dB
or ± 0.4 dB, whichever is greater
Ratio
ns
ns
mV
dBm
dBm
dBm
dBm
dBm
dBm
V
V
4.5
-8.0
9
40
30
+20
+28
+40
+48
+45
+68
5.0
1.6:1
5.5
-5.0
VSWR
Trise, Tfall
Ton, Toff
Transients
1 dB Compression
Input IP3
Input IP2
Vcc
Vee
1. All specifications apply when operated with bias voltages of +5V for Vcc and –5.0V for Vee.
2. This attenuator is guaranteed monotonic.
