5114-630/223K275TA

Description
Film Capacitor, Polypropylene, 630V, 0.022uF
CategoryPassive components    capacitor
File Size69KB，2 Pages
ManufacturerTecate Group
Download Datasheet Parametric View All

5114-630/223K275TA Overview

Film Capacitor, Polypropylene, 630V, 0.022uF

5114-630/223K275TA Parametric

Parameter NameAttribute value
MakerTecate Group
package instruction,
Reach Compliance Codecompli
ECCN codeEAR99
capacitance0.022 µF
Capacitor typeFILM CAPACITOR
dielectric materialsPOLYPROPYLENE
high24 mm
length30.5 mm
Manufacturer's serial number5114(630VOLTS)
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package formRadial
method of packingAmmo Pack; Tape
Rated (DC) voltage (URdc)630 V
series5114(630 VOLTS)
Terminal pitch27.5 mm
width15 mm

Preview

Download Datasheet

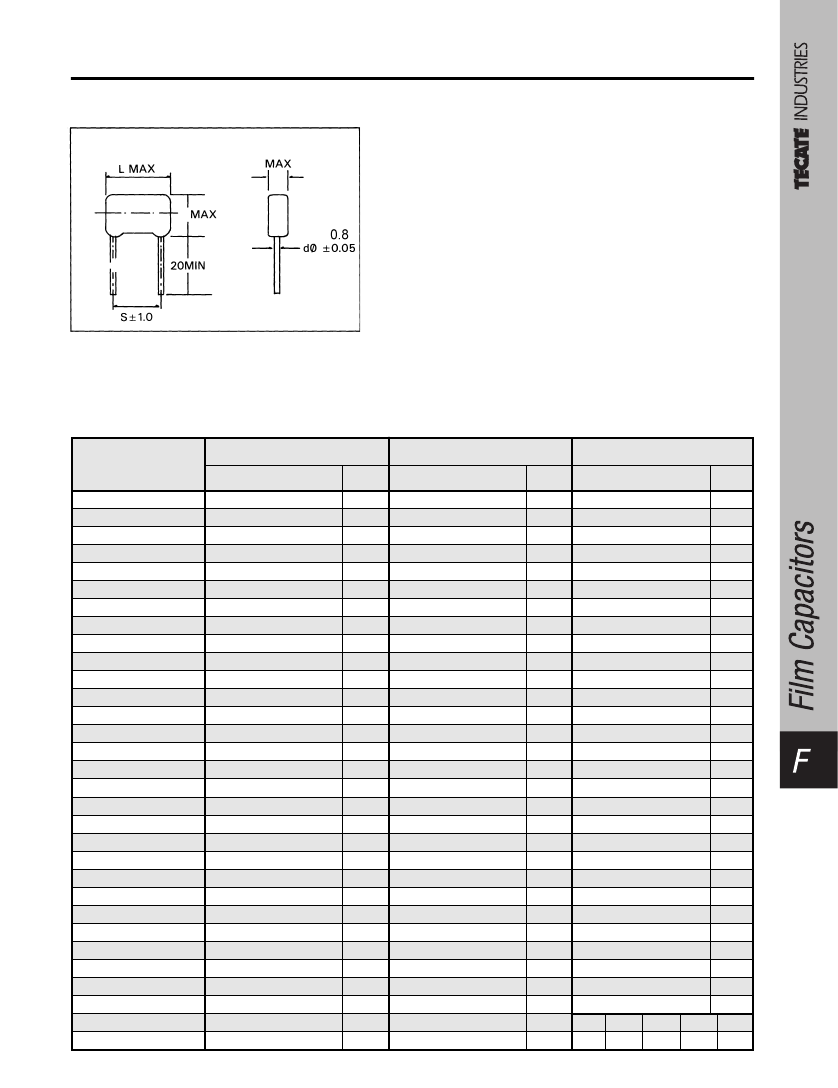

METALLIZED POLYESTER/POLYPROPYLENE
COMBINATION FILM-LOW VOLTAGE
NON-INDUCTIVE, EPOXY DIP COATED, HIGH TEMPERATURE
GENERAL SPECIFICATION
TYPE 5114
Part Number Example: See Page F.2
1.
OPERATING TEMPERATURE RANGE:
-40°C ~ +105°C
2.
WORKING VOLTAGE RANGE:
250, 400, 630 VDC
3.
DIELECTRIC STRENGTH:
150% of W.V. for 1 minute
4.
CAPACITANCE VALUE:
.01 ~ 3.3 mfd.
5.
CAPACITANCE TOLERANCE:
J ± 5%, K ± 10%, M ± 20%
6.
DISSIPATION FACTOR:
0.5% max. at 1KHz, 20°C
7.
INSULATION RESISTANCE:
C < .33 mfd, R >15,000MW
C > .33 mfd, R > 5,000MW mfd.
CAP. (µF)
.01
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
.1
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
250 VDC
L x H xT
12.5 x 8.5 x 4.5
12.5 x 8.5 x 4.5
12.5 x 8.5 x 4.5
12.5 x 8.5 x 4.5
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.5 x 5.5
12.5 x 10.0 x 6.0
12.5 x 10.0 x 6.0
12.5 x 11.0 x 6.0
18.0 x 11.0 x 6.0
18.0 x 12.0 x 6.5
18.0 x 13.0 x 7.0
18.0 x 14.0 x 7.5
18.0 x 14.5 x 8.5
18.0 x 15.0 x 8.5
26.0 x 14.0 x 7.5
26.0 x 15.0 x 8.0
26.0 x 16.0 x 9.0
26.0 x 17.0 x 10.0
26.0 x 18.0 x 11.0
30.5 x 19.0 x 10.0
30.5 x 20.0 x 11.0
30.5 x 21.0 x 12.0
30.5 x 22.0 x 13.0
30.5 x 23.0 x 14.0
S
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
400 VDC
L x H xT
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.0 x 5.0
12.5 x 9.5 x 5.5
12.5 x 9.5 x 5.5
12.5 x 10.0 x 6.0
12.5 x 10.0 x 6.0
12.5 x 11.0 x 6.5
12.5 x 12.0 x 7.0
18.0 x 9.5 x 5.5
18.0 x 11.0 x 6.0
18.0 x 12.0 x 6.5
18.0 x 13.0 x 7.0
18.0 x 14.0 x 7.5
18.0 x 14.5 x 8.0
18.0 x 15.0 x 8.5
26.0 x 14.0 x 7.5
26.0 x 15.0 x 8.0
26.0 x 16.0 x 9.0
26.0 x 17.0 x 10.0
26.0 x 18.0 x 11.0
26.0 x 19.0 x 12.0
30.5 x 19.0 x 10.0
30.5 x 20.0 x 11.0
30.5 x 21.0 x 12.0
30.5 x 23.0 x 14.0
30.5 x 25.0 x 16.0
S
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
630 VDC
L x H xT
12.5 x 9.5 x 5.5
12.5 x 9.5 x 5.5
12.5 x 10.0 x 6.0
12.5 x 11.0 x 6.5
12.5 x 12.0 x 7.0
18.0 x 10.0 x 5.5
18.0 x 11.0 x 6.0
18.0 x 12.0 x 6.5
18.0 x 13.0 x 7.0
18.0 x 14.0 x 7.5
18.0 x 14.5 x 8.0
18.0 x 15.0 x 8.5
26.0 x 14.0 x 7.5
26.0 x 15.0 x 8.0
26.0 x 16.0 x 9.0
26.0 x 17.0 x 10.0
26.0 x 18.0 x 11.0
30.5 x 18.0 x 9.5
30.5 x 19.0 x 10.0
30.5 x 20.0 x 11.0
30.5 x 21.0 x 12.0
30.5 x 22.5 x 13.5
30.5 x 24.0 x 15.0
S
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
S
dø
10.0
0.6
15.0
0.8
22.5
0.8
27.5
0.8
Tecate Industries 858.513.2300 Fax 858.513.2345 E-mail tiinfo@tecategroup.com
F.39
