32349-85 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 32349-85

32349-85: DescriptionGeneral Purpose Inductor, 573uH, 10%, 1 Element; CategoryPassive components inductor; File Size63KB，1 Pages; ManufacturerCoast Advanced Chip Magnetics

Download Datasheet Parametric Compare View All

32349-85 Overview

General Purpose Inductor, 573uH, 10%, 1 Element

32349-85 Parametric

Parameter Name	Attribute value
Maker	Coast Advanced Chip Magnetics
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.3 Ω
Nominal inductance(L)	573 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	32349
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Maximum rated current	1.1 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	10%

Preview

Download Datasheet

View All

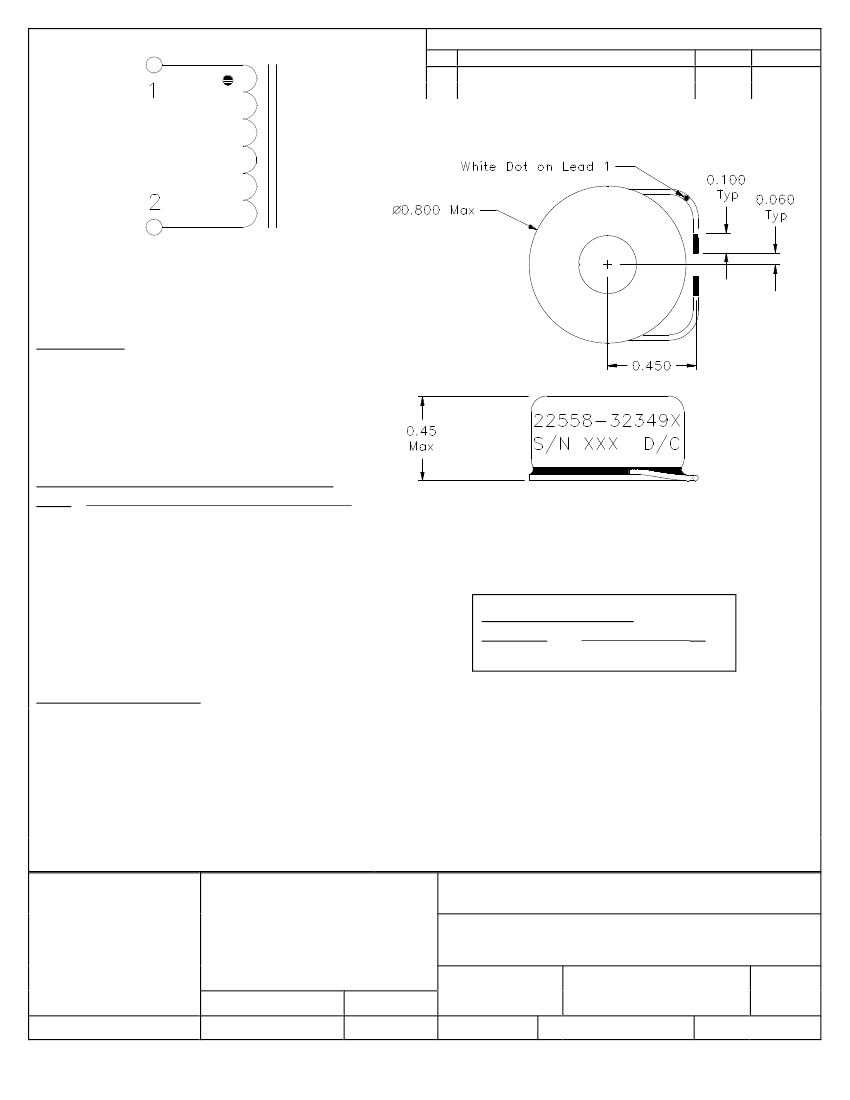

R E V IS IO N S

R EV.

D ES CR IP T IO N

D AT E

Classification

MIL-PRF-27 Grade:

MIL-PRF-27 Class:

Maximum Ambient Temperature:

S (130° C)

105° C

MIL-STD-981 Quality Assurance Provisions

Class Description

Drawing Number

Commercial Parts

32349-30

Group A Inspection 32349-31B

Group A Inspection 32349-31S

Group A Inspection 32349-31S and

Group B Inspection 32349-85

The germane data will ship with the hardware.

LOAD CONDITIONS

Terminals

1-2

1.1 A

P = I

0.36 W

Electrical Characteristics

DC Resistance: (1 - 2) = 300 m

Maximum

Inductance (measured at 1.0V, 10 KHz):

(1 - 2) = 573

H ± 10%, I

= 0

(1 - 2) = 450

H Minimum, I

= 1.1A

These Parts Are Manufactured in Strict Compliance to MIL-STD-981.

The “X” in the part number UNLESS OTHERWISE SPECIFIED:

Dimensions are in inches, and

refers to the Quality Level

tolerances are:

TITLE

Decimals

Angles

(C, B, E or S), see Quality Fractions

Assurance Provisions

above.

DO NOT SCALE DRAWING

±1/64

.X = ± 0.1

.XX = ±0.03

.XXX=±0.010

±1/2°

COAST/ACM

Inductor

DWG. NO

REV.

FSCM

DATE

03/21/03

DRAWN BY

Jim Allen

22558

SCALE: none

MAX. WT.:

32349X

20 grams

SHEET 1 OF 1
