EKMH630LIN822MA45S

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 8200uF, Through Hole Mount, CAN, LEAD FREE
CategoryPassive components    capacitor
File Size129KB，3 Pages
ManufacturerNIPPON CHEMI-CON
Websitehttp://www.chemi-con.co.jp
Environmental Compliance
Download Datasheet Parametric View All

EKMH630LIN822MA45S Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 8200uF, Through Hole Mount, CAN, LEAD FREE

EKMH630LIN822MA45S Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNIPPON CHEMI-CON
package instruction,
Reach Compliance Codeunknow
ECCN codeEAR99
capacitance8200 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter35 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current3 mA
length45 mm
Manufacturer's serial numberKMH
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
Package formSnap-i
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)63 V
ripple current3900 mA
seriesKMH(SNAP-IN)
surface mountNO
Delta tangent0.15
Terminal surfaceTin (Sn)
Terminal shapeSNAP-IN

Preview

Download Datasheet

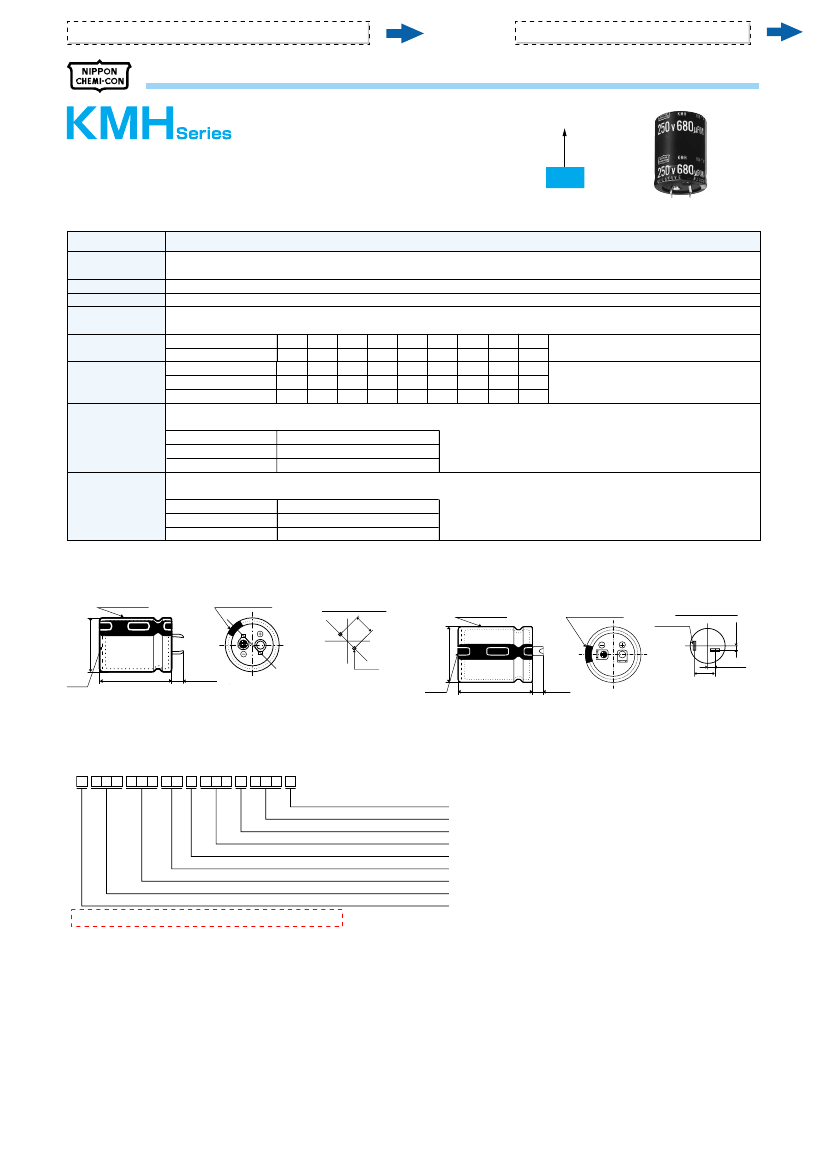

ALUMINUM ELECTROLYTIC CAPACITORS
SMQ-Series(Snap-in)
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
KMM
Standard snap-ins, 105C
@Endurance
with ripple current : 105C 2000 hours
@Non
solvent-proof type
@Pb-free
design
downsized
longer life
KMH
?SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tane)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
-40 to +105C
6.3 to 100V
dc
P20%
(M)
(at 20C, 120Hz)
I=0.02CV or 3mA, whichever is smaller
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
(at 20C after 5 minutes)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Rated voltage (V
dc
)
0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15 0.15
tanE (Max.)
(at 20C, 120Hz)
6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Rated voltage (V
dc
)
2
2
2
2
3
3
4
4
4
Z(-25C)/Z(+20C)
5
5
6
6
8
10
15
15
15
Z(-40C)/Z(+20C)
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 2000 hours at 105C.
Capacitance change
[P20%
of the initial value
D.F. (tanE)
[200%
of the initial specified value
Leakage current
[The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1000 hours at 105C
without voltage applied.
Capacitance change
[P20%
of the initial value
D.F. (tanE)
[150%
of the initial specified value
Leakage current
[The
initial specified value
Characteristics
Shelf Life
?DIMENSIONS
[mm]
@Terminal
Code : VS (F22 to
F35)
: Standard
Sleeve (PET)
FD+1max.
Negative mark
PC board pin-out
10
@Terminal
Code : LI (F35)
Sleeve (PET)
FD+1max.
Negative mark
4.2P0.5
PC board pin-out
2-1.2B6
Vent
LP2
*
4.0P0.5
2-F2
5P0.5
LP2
4.5P1
14.2P1
Vent
*FD=35mm : 3.5P0.5mm
No plastic disk is the standard design
?PART
NUMBERING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
E KMH
A A A
V S N
A A A
M
A A A
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 820MF:821,3300MF:332)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 6.3V:6R3,10V:100,100V:101)
Series code
Category
Please refer to "A guide to global code (snap-in type)"
(1/3)
CAT. No. E1001E
