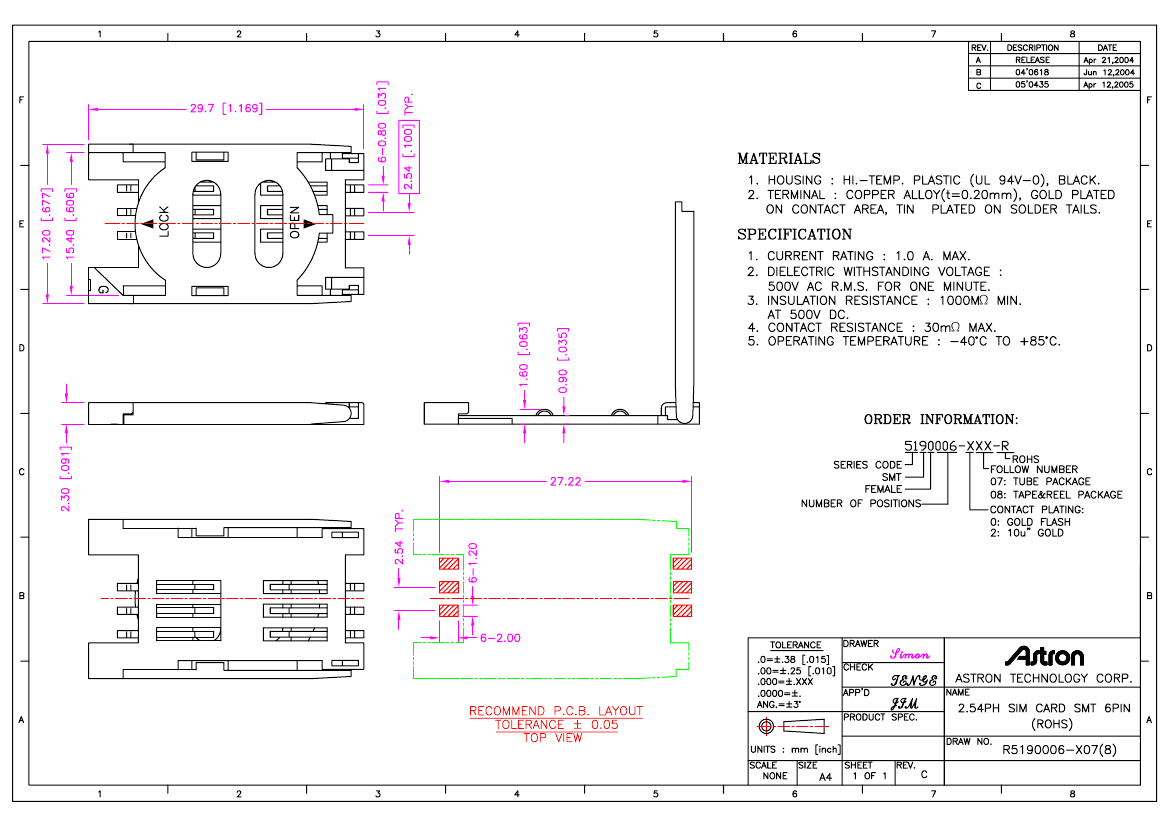

Preview

5190006-208-R: DescriptionPCMCIA Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerAstron; Websitehttp://www.astron.com.tw; Environmental Compliance

Download Datasheet Parametric Compare View All

5190006-208-R Overview

PCMCIA Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

5190006-208-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Astron
Reach Compliance Code	unknow
Other features	TAPE & REEL PACKAGE
body width	1.169 inch
subject depth	0.091 inch
body length	0.677 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	COMPRESSION
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e3
Manufacturer's serial number	51
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	25.2222 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

5190006-208-R Related Products

	5190006-208-R	5190006-007-R	5190006-008-R
Description	PCMCIA Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	PCMCIA Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle	PCMCIA Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Maker	Astron	Astron	Astron
Reach Compliance Code	unknow	unknown	unknown
Other features	TAPE & REEL PACKAGE	TUBE PACKAGE	TAPE & REEL PACKAGE
body width	1.169 inch	1.169 inch	1.169 inch
subject depth	0.091 inch	0.091 inch	0.091 inch
body length	0.677 inch	0.677 inch	0.677 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Contact style	COMPRESSION	COMPRESSION	COMPRESSION
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
JESD-609 code	e3	e3	e3
Manufacturer's serial number	51	51	51
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of ports	1	1	1
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	25.2222 mm	25.2222 mm	25.2222 mm
Plating thickness	10u inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	6	6	6
