HRD1046-340V datasheet, PDF - EEWORLD Datasheet

HRD1046-340V: DescriptionSynchro or Resolver to Digital Converter, Hybrid, CDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, HERMETIC SEALED, DOUBLE WIDTH, DIP-36; CategoryAnalog mixed-signal IC converter; File Size911KB，16 Pages; ManufacturerNatel Engineering Company

Download Datasheet Parametric View All

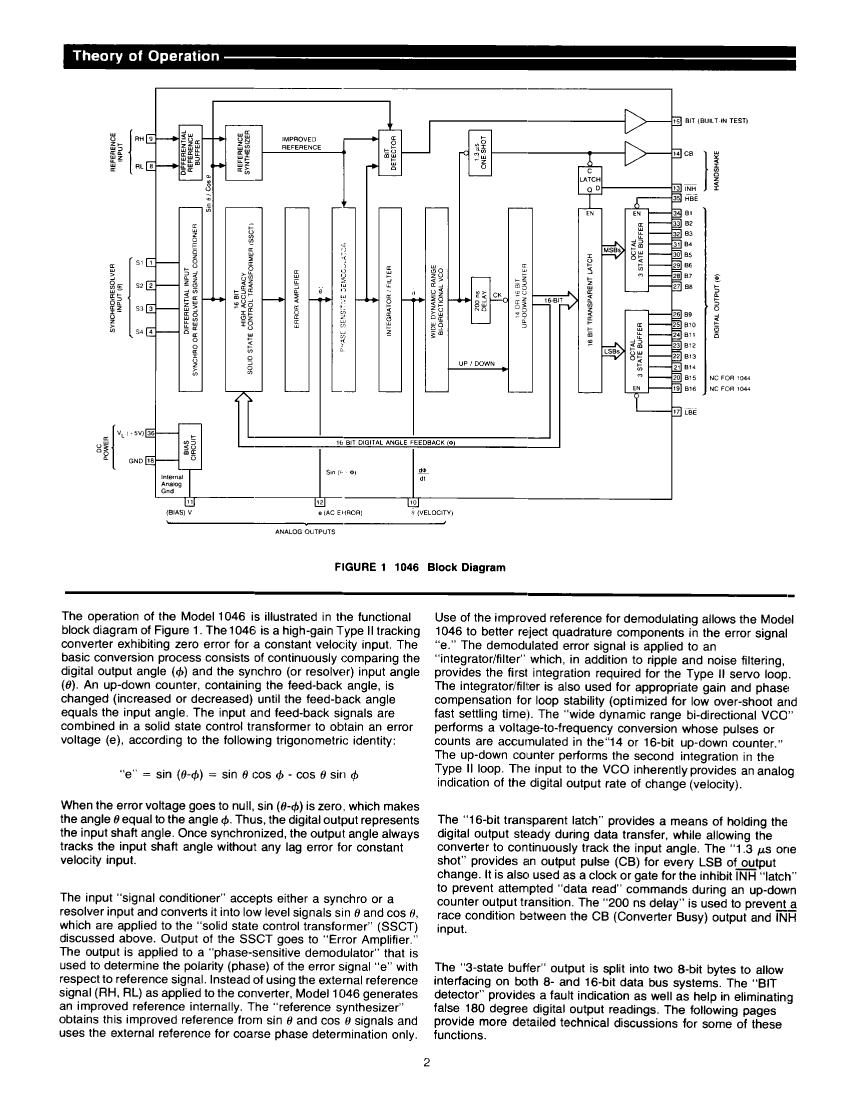

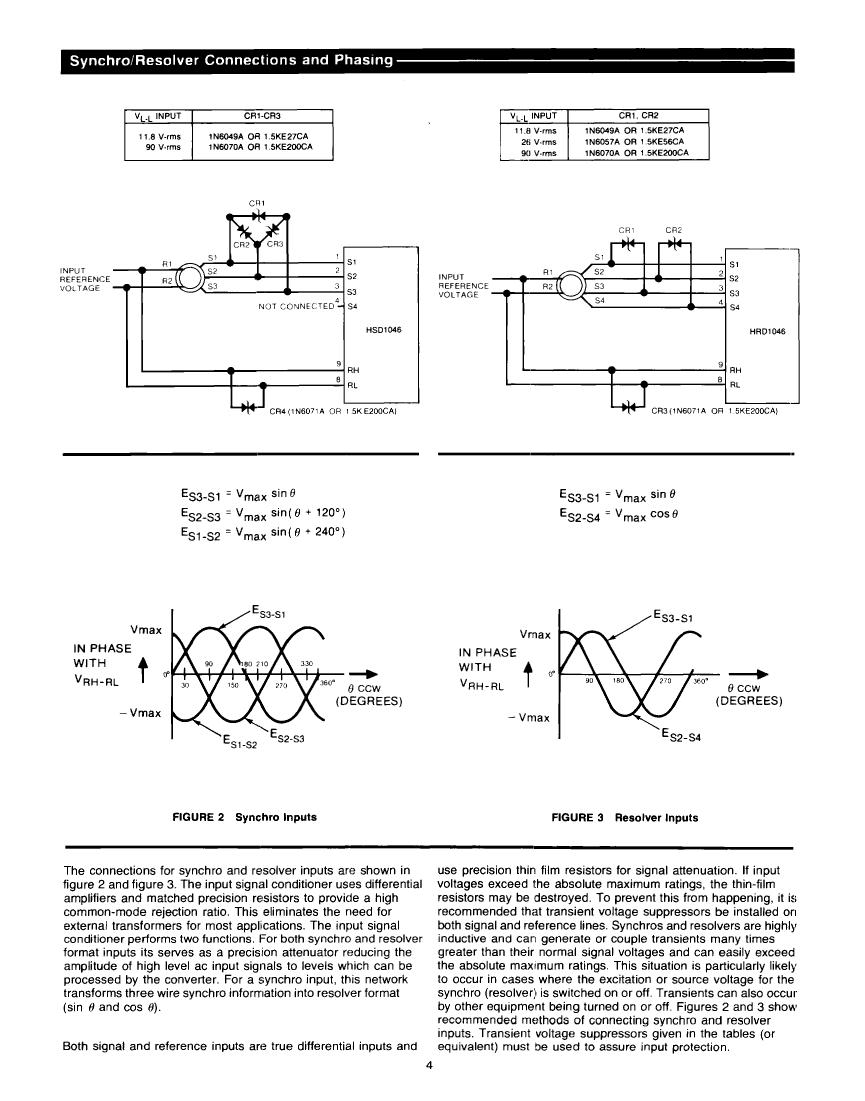

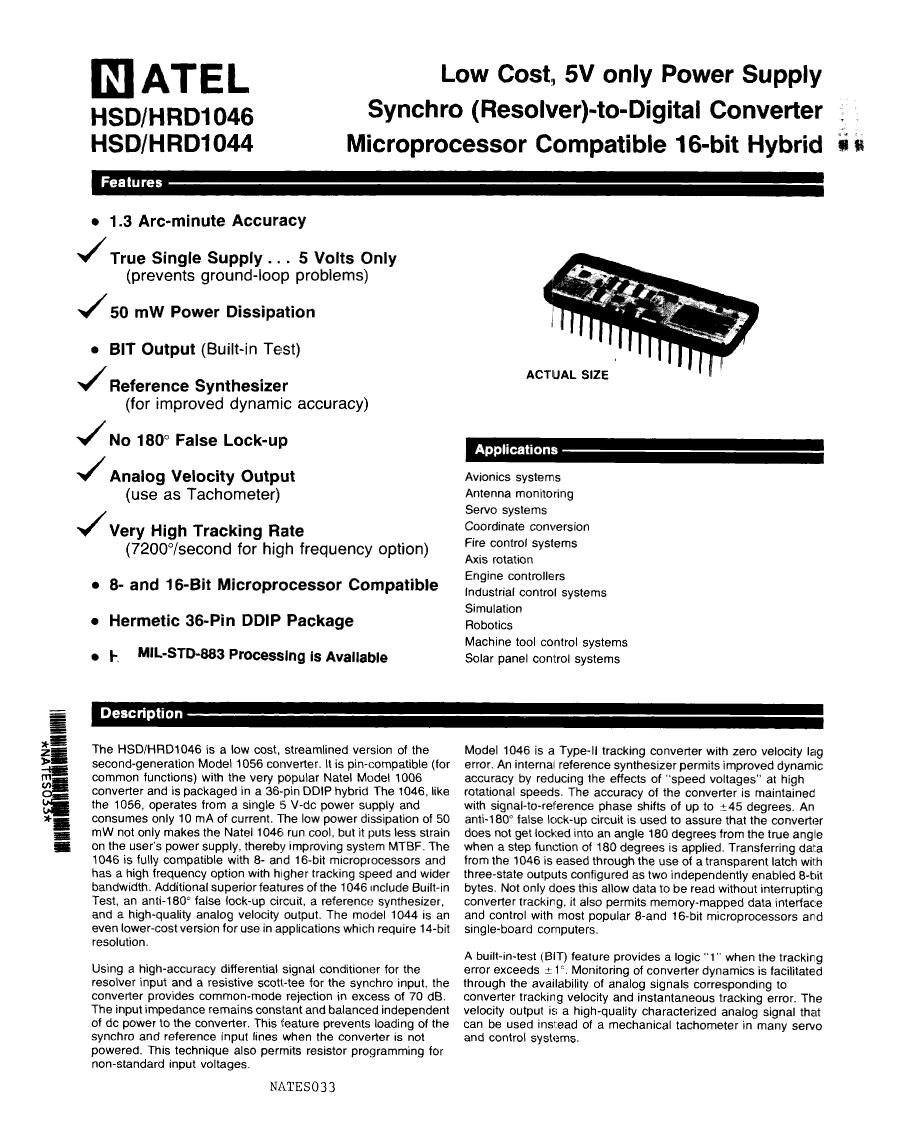

HRD1046-340V Overview

Synchro or Resolver to Digital Converter, Hybrid, CDIP36, 0.780 X 1.900 INCH, 0.210 INCH HEIGHT, HERMETIC SEALED, DOUBLE WIDTH, DIP-36

Parameter Name	Attribute value
Maker	Natel Engineering Company
Parts packaging code	DIP
package instruction	DIP,

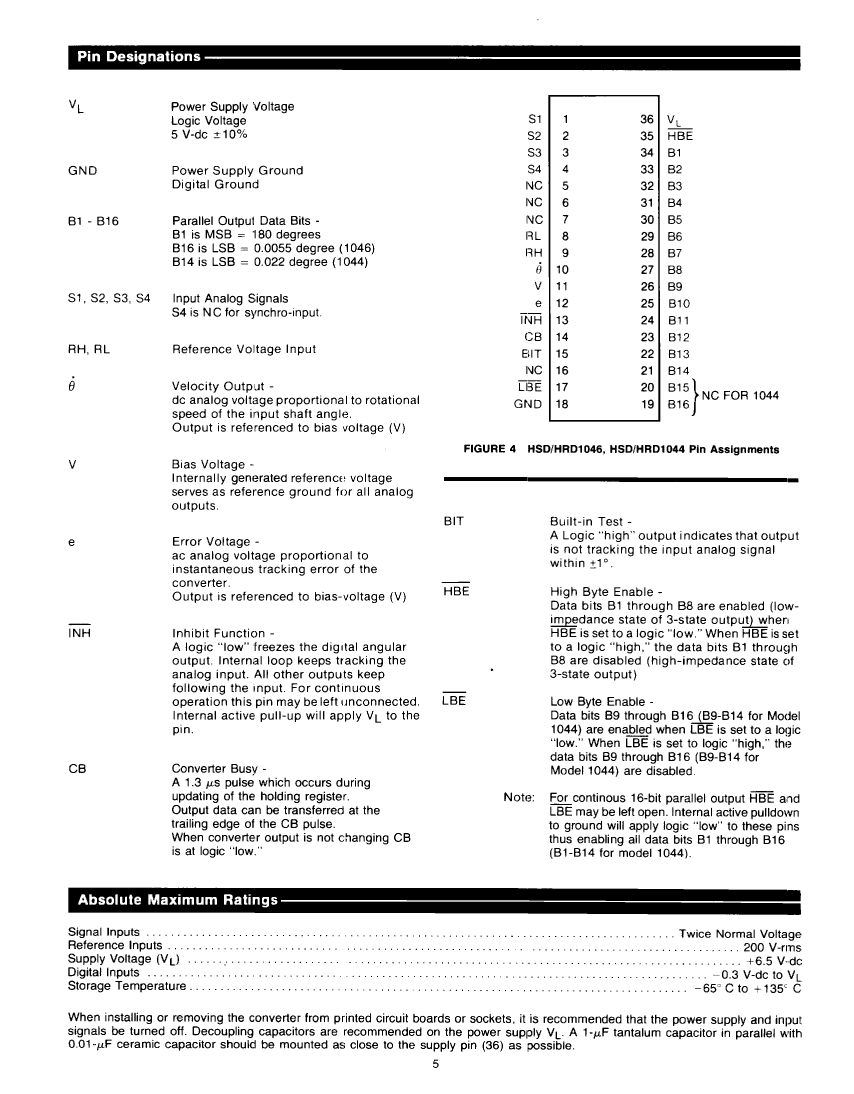

Contacts	36
Reach Compliance Code	unknow
ECCN code	EAR99

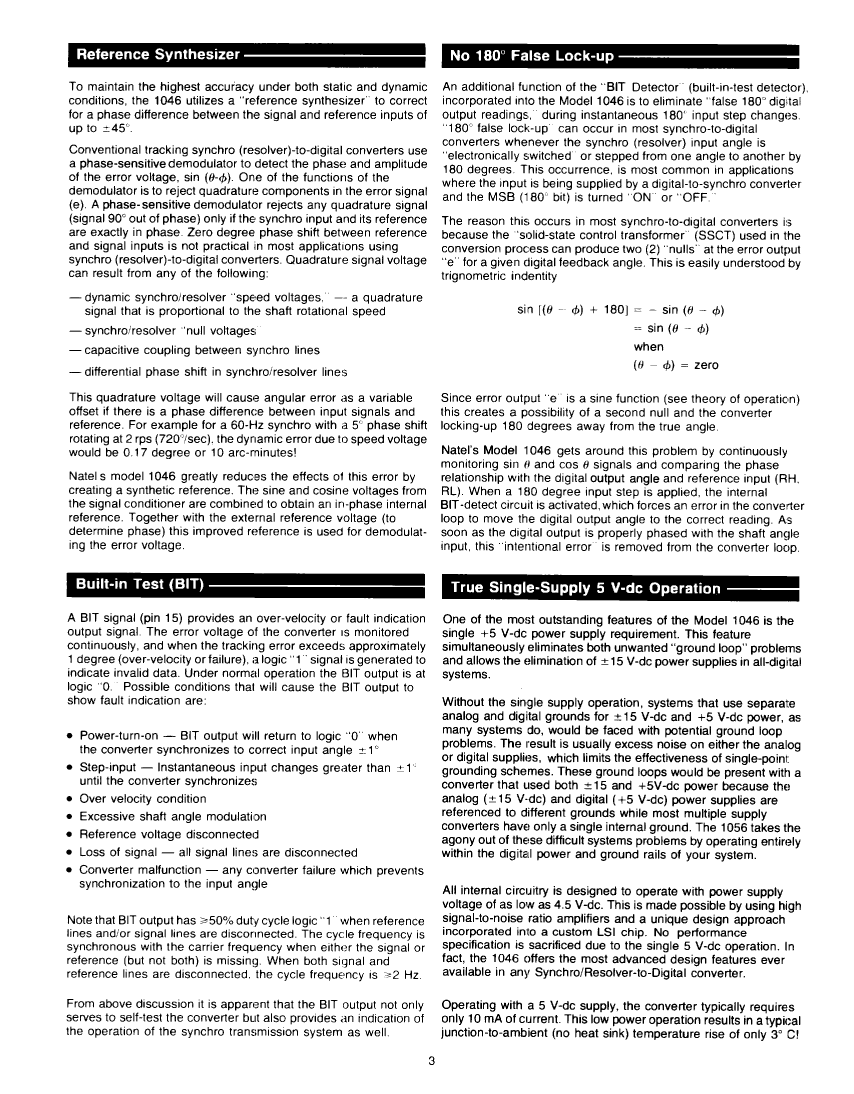

Other features	BUILT-IN-TEST; EXTERNAL SIGNAL TRANSFORMER
Maximum angular accuracy	1.3 arc mi
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDIP-P36
length	48.13 mm
Number of digits	16
Number of functions	1
Number of terminals	36
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.4 mm
Maximum stabilization time	300 µs
Signal/output frequency	1000 Hz
Maximum slew rate	20 mA
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum tracking rate	2.5 rps
width	15.24 mm
