QTLCC-11A3: DescriptionNTC Thermistor, 5000ohm, Chassis Mount, ROHS COMPLIANT; CategoryPassive components The resistor; File Size30KB，1 Pages; ManufacturerQTI Sensing Solutions; Websitehttps://www.qtisensing.com; Environmental Compliance

Download Datasheet Parametric View All

QTLCC-11A3 Overview

NTC Thermistor, 5000ohm, Chassis Mount, ROHS COMPLIANT

QTLCC-11A3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	QTI Sensing Solutions
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	QTLC
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature
Package shape	DISK PACKAGE
resistance	5000 Ω
Resistor type	NTC THERMISTOR
surface mount	NO
Terminal location	RADIAL
Terminal shape	FLEXIBLE WIRE
Thermistor Applications	TEMPERATURE SENSING

Preview

Download Datasheet

View All

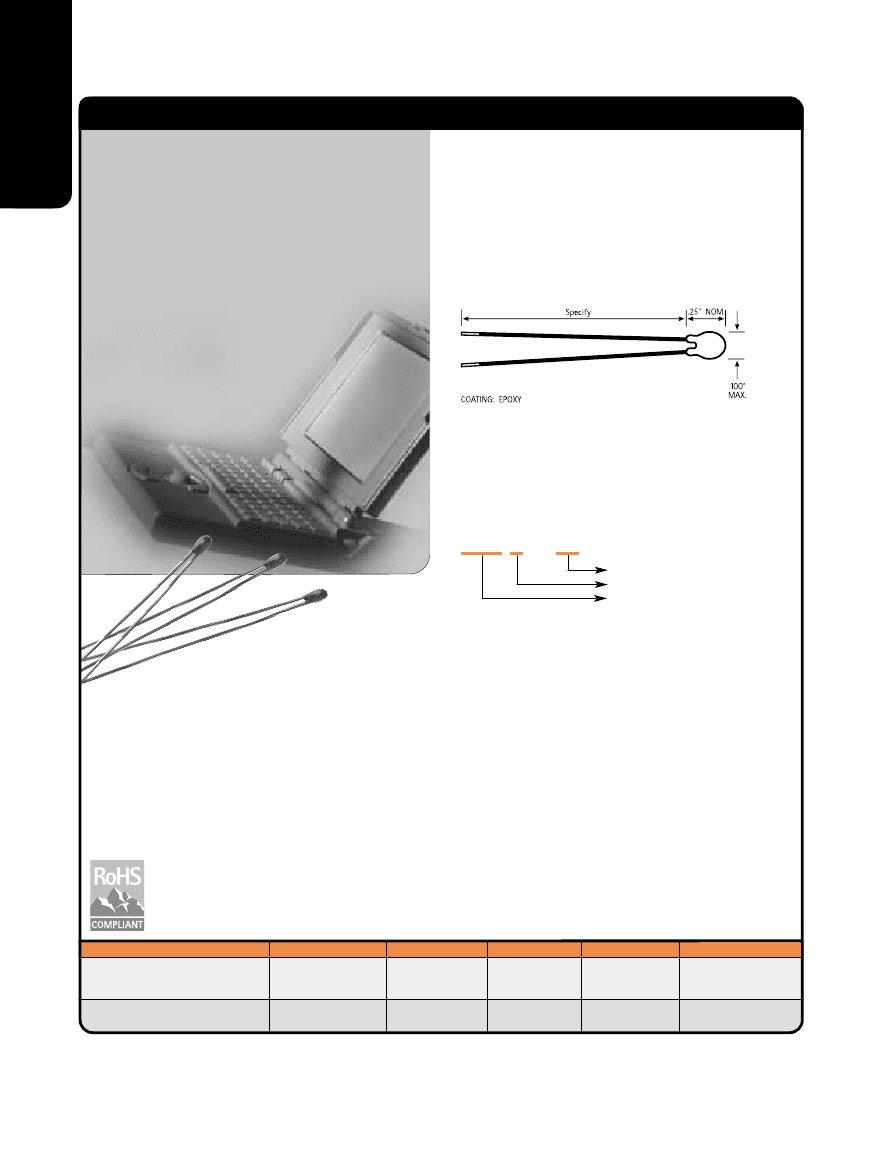

NTC THERMISTORS

NTC Leaded Thermistors

Interchangeable w/Insulated Leads

Leaded

The QTI interchangeable thermistor with insulat-

ed leads is a proven design for precision tem-

perature measurement.

QTI’s Industry Standard Curve-Tracker

Standard Configuration

The designation name “interchangeable” is given to ther-

mistors which have ultra-tight tolerances

guaranteed to track a specific

resistance-temperature

curve.

Ordering Information

QTLC A-14C3

Curve Tracking Code Suffix

Lead Type

Part Number

Lead Options:

A = #28 AWG Kynar 2" Long

B = #28 AWG Kynar 6" Long

C = #28 AWG Kynar 12" Long

Curve Tracking:

D3 = +/– .1°C (0°C–70°C)

C3 = +/– .2°C (0°C–70°C)

B3 = +/– .5°C (0°C–70°C)

A3 = +/–

1°C (0°C–70°C)

RESISTANCE @ 25°C (OHMS)

2,252

5,000

10,000

100,000

PART NUMBER

QTLC__-7

QTLC__-11

QTLC__-14

QTLC__-82

QTLC__-88

R-T CURVE

Z

S

W

LEAD DIA.

.013"

.013”

BEAD DIA. (IN)

.100

COATING

EPOXY

10
