154266: DescriptionD Subminiature Connector, 37 Contact(s), Female, Solder Terminal, #4-40, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size125KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

154266 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	154266	-	-	View	Buy Now

154266 Overview

D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, #4-40, Plug, ROHS COMPLIANT

154266 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.524 inch
body length	2.728 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.2804 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

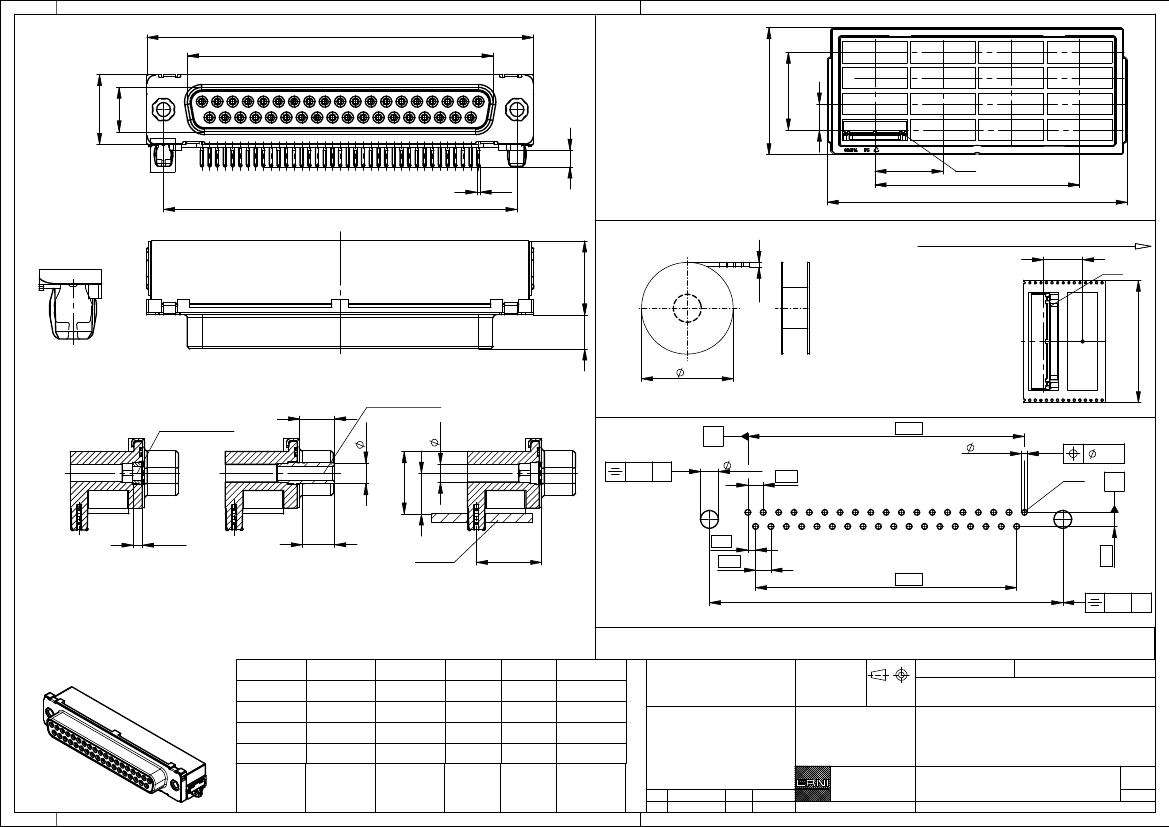

69,5
