164008 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 164008

164008: DescriptionD Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric View All

164008 Overview

D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Receptacle, LEAD FREE

164008 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	LEAD FREE
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	2.736 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	7.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal pitch	2.7686 mm
Termination type	SURFACE MOUNT
Total number of contacts	37
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 24 St.

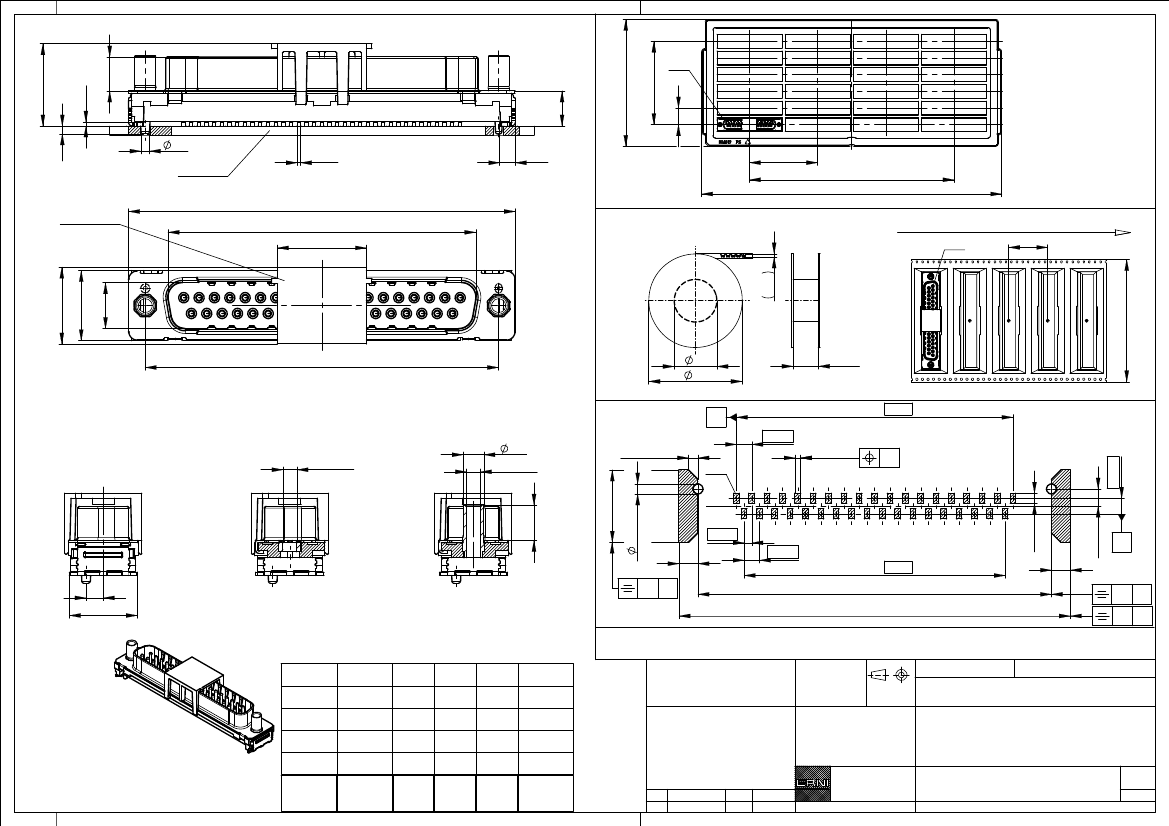

+0,3

6,3

5 x 18 = 90

0,7

max. 138

Pin 1

tray packaging

packaging unit 24 pcs

14,8

5,8

1,4

1,5

Leiterplatte

0,6

2,8

73,5

3 x 73,5 = 220,5

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

pcb

69,5

-0,4

+0,2

hood

Ansaughaube

55,3

+0,2

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 120 Stück -

Packaging unit: 120 pcs

Abspulrichtung -

Reel off Direction

Pin 1

12,6

±0,3

13,8

8,25

+0,2

17,1

63,5

±0,1

150

330

88,5

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

ohne /

without

thread depth max. 5,0 mm

max. Einschraubtiefe 5,0 mm

Gewinde

/ thread

/ #4-40

Mutter /

nut

Bolzen /

bolt

max. Einschraubtiefe 5,5 mm

Layoutvorschlag:

1,7 x 45° (4x)

thread depth max. 5,5 mm

3,7

recommended layout:

Pin 1

18 x 2,76 = 49,68

2,76

(37x)

2,84

3,1

±0,05

3,4

0,1

Scale

All Dimensions

in mm

Gewinde

/ thread

/ #4-40

0,1

Bohrung

/ hole

1,8

±0,05

6,4

3,4

2,76

17 x 2,76 = 46,92

63,5

±0,05

70,3

±0,2

3,1

12,2

Beschriftung nach Bedruckungsvorschrift 174538

0,1

M 1:1

Part marking according to specification 174538

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications please see the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

194265

Anschlussbereich verzinnt

174388

164016

164012

164008

164004

Ident.-Nr.

#4-40

ohne

without

Mutter

Information:

Tolerances

2:1

194266

194267

194268

194269

Ident-Nr.

part-no.

tape &reel

terminal area tin plating

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Koplanarität der Anschlüsse

≤

0,1 mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

14.04.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 37-SMD-6,3-BA8

TMC-P 37-SMD-6,3-type 8

class: 2

part-no.

tray

thread

Bolzen Bemerkung

www.ERNI.com

Class

bolt

remark

144892

TMCP

1,8

1,38
