174446: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

174446 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT

174446 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.524 inch
body length	2.087 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.2804 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .125-.137
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Rated current (signal)	4.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.278 N

Preview

Download Datasheet

View All

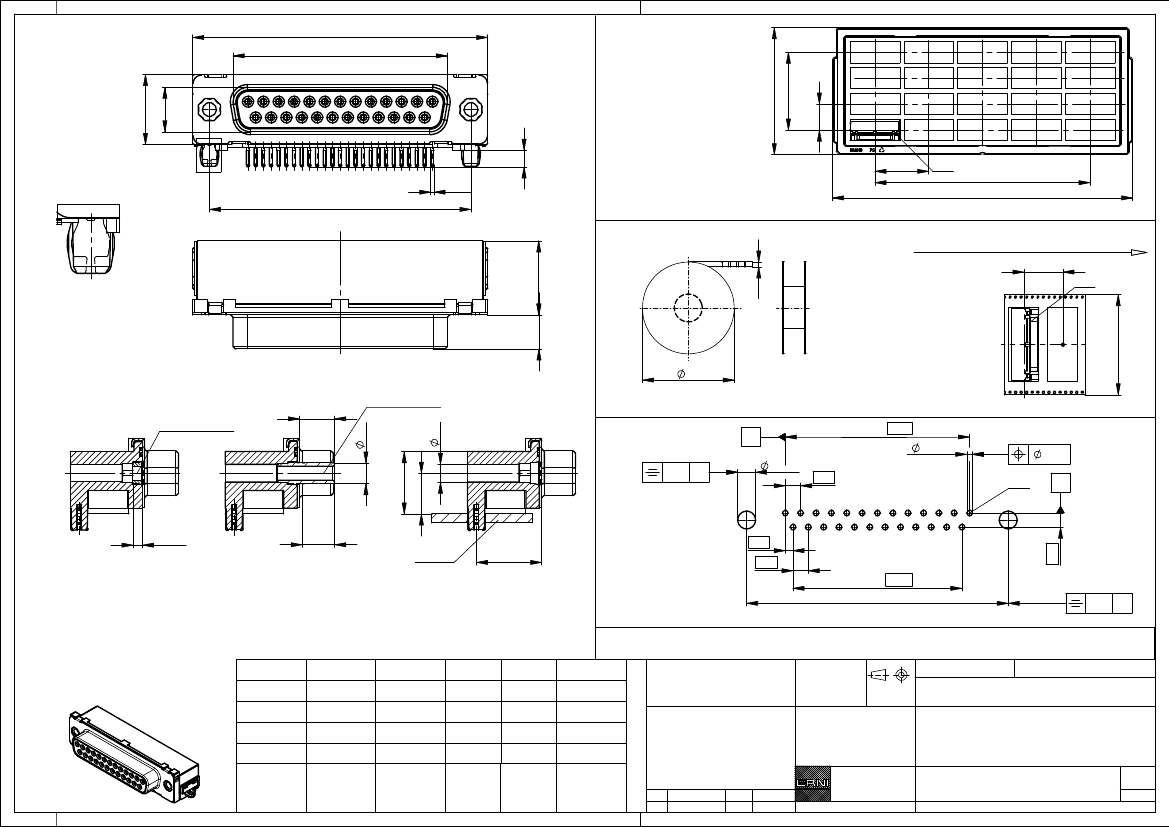

53

-0,4

+0,2

38,5

-0,2

12,6

±0,3

8

-0,2

DETAIL X

M5:1

assembly with force

Bestückung mit Kraft

3

28

tray packaging

packaging unit 20 pcs

138

max.

3 x 28 = 84

Verpackt in Tray

Verpackungseinheit 20 Stück

X

0,6

47

±0,2

58

Pin 1

4 x 58 = 232

325

max.

Sonstige Angaben siehe Zeichnung 204629 /

additional indications according to drawing 204629

Verpackt in Gurtverpackung

-

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

13,3

Abspulrichtung -

Reel off Direction

28

Pin 1

6,3

-0,25

17,6

330

Mutter /

nut

Gewinde /

thread

M3 /

#4-40

Bolzen /

bolt

6,4

3,7

Gewinde /

thread

M3 /

#4-40

3,2

ohne / without

Sonstige Angaben siehe Zeichnung 204655 /

additional indications according to drawing 204655

Layoutvorschlag

0,05

B

recommended layout

11,2

7,3

±0,1

A

3,2

±0,1

12 x 2,76 = 33,12

1

-0,06

2,76

+0,09

0,05

Pin 1

B

1,65

Gewindetiefe /

depth of thread

6

Gewindetiefe /

depth of thread

LP /

PCB

11,7

2,76

11 x 2,76 = 30,36

47

±0,05

Sonstige Angaben siehe Zeichnung 204626 /

additional indications according to drawing 204626

Anschlussbereich verzinnt

terminal area tin plating

Anforderungsstufe: 2

2,54

1,38

0,05

72

A

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to production documentation

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

class: 2

174446

154262

154261

154260

154259

Ident-Nr.

Ø

3,2

#4-40

M3

#4-40

M3

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

part-no.

Gurt

Ident-Nr.

part-no.

Tray

tape on reel

tray

without

ohne

Mutter

nut

Bolzen

bolt

Bemerkung

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

b

Index

21.11.2011

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S-25-THR-Standard-BA8

remark

www.ERNI.com

Class

144857

TMCS

I

A3

174446 Related Products

	174446	154259	154260	154262
Description	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Hole .125-.137, Plug, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, M3, Plug, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, #4-40, Plug, ROHS COMPLIANT	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, #4-40, Plug, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH	Provertha Connectors Cables & Solutions GmbH
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.524 inch	0.524 inch	0.524 inch	0.524 inch
body length	2.087 inch	2.087 inch	2.087 inch	2.087 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
maximum insertion force	3.2804 N	3.2804 N	3.2804 N	3.2804 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	YES	YES	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation option 1	HOLE .125-.137	M3	#4-40	#4-40
Installation option 2	LOCKING	THREADED	THREADED	SCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Rated current (signal)	4.5 A	4.5 A	4.5 A	4.5 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	3/B	3/B	3/B
Terminal length	0.114 inch	0.114 inch	0.114 inch	0.114 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N
