TCKIA106AT-LF

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 10uF, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size402KB,6 Pages
ManufacturerCal-Chip Electronics
Environmental Compliance
Download Datasheet Parametric View All

TCKIA106AT-LF Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 10uF, SURFACE MOUNT, 1206, CHIP, ROHS COMPLIANT

TCKIA106AT-LF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCal-Chip Electronics
package instruction, 1206
Reach Compliance Codecompli
ECCN codeEAR99
capacitance10 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR2000 mΩ
high1.6 mm
JESD-609 codee3
leakage current0.001 mA
length3.2 mm
Manufacturer's serial numberTC
Installation featuresSURFACE MOUNT
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, EMBOSSED PLASTIC, 7/13 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)10 V
seriesTC
size code1206
surface mountYES
Delta tangent0.06
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrie
Terminal shapeWRAPAROUND
width1.6 mm
Cal-Chip
Electronics, Incorporated
TC S
ERIES

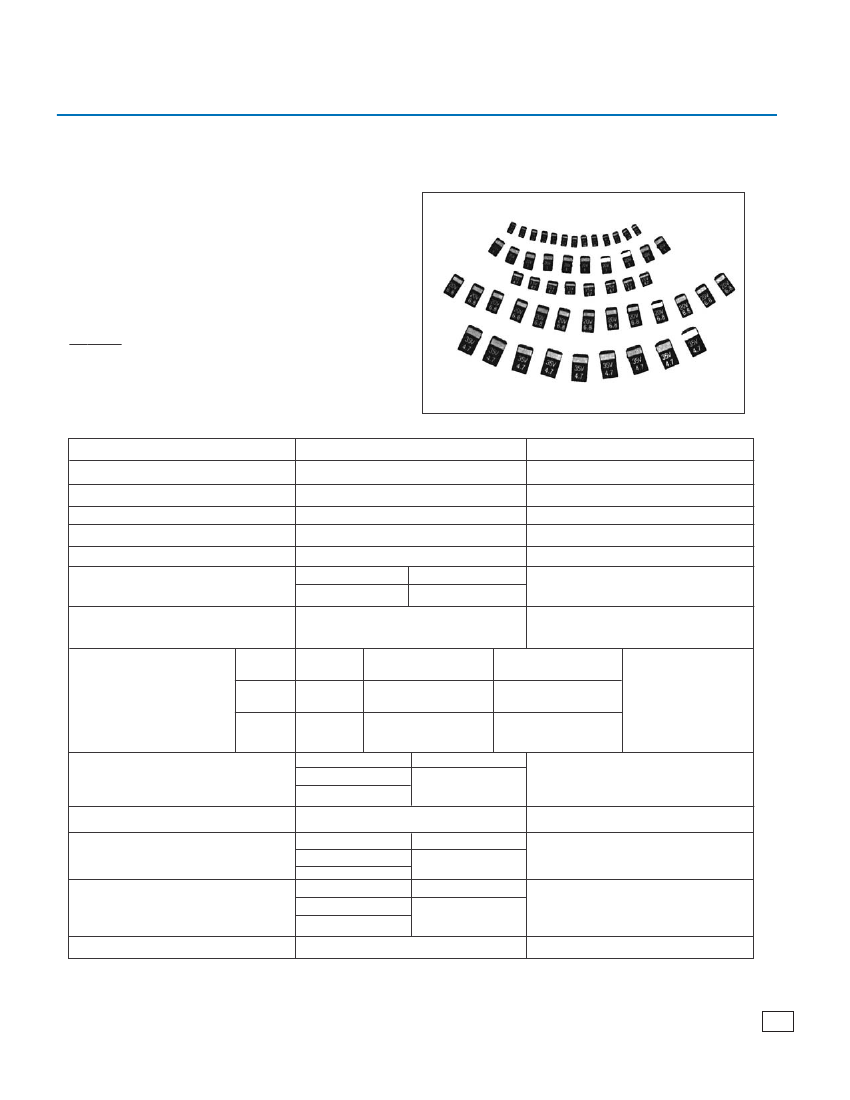

TC Series Tantalum Solid Electrolytic Capacitors -
Resin Molded Chip Type, Standard Type
TC S
ERIES
:
The TC Series is designed for hybrid circuit
and low profile printed circuit board applications where
inductance is to be minimized, or where substrate space is
at a premium. They can be attached to substrates or circuit
boards by dipsoldering, welding, re-flow soldering or other
conventional methods. These units have the further advan-
tage of being compatible with automatic assembly equip-
ment-minus the problems associated with flexible terminal
lead wires. Our chip tantalums meet all EIA sizes.
R
ATINGS
Capacitance Range:
Tolerance Range:
Rated Voltage:
0.1µF to 220µF
M(±20%), K(±10%)
4V to 50V
I
TEMS
Operating Temperature Range
Maximum Working Temperature
Rated Voltage Range
Capacitance Range
Standard Capacitance Tolerance
Dissipation factor (tan
δ)
Leakage Current
Temperature
Stability
-55°C
+125°C
Temp.
S
PECIFICATIONS
, P
ERFORMANCE
-55°C~+85°C(+125°C)
+85°C (+125°C with derating)
4 VDC ~ 50 VCD
0.1µF ~ 220µF
±20% (M) ±10%(K)
0.1~1.0µF
1.5~100µF
4.0%
6.0%
T
EST
C
ONDITIONS
See Table of Standard Ratings
JIS-C-5102 20°C 120Hz
JIS-C-5102 20°C 120Hz
JIS-C-5102 20°C (5 minutes)
(after rated voltage applied)
Max. Leakage Current
NA
0.125CV or 6.25µA
whichever is greater
Procedure:
1. 20±2°C
2. -55+0 °C Stabilized
-3
3. 20±2°C 15 min.
4. +125+3 °C 2 hrs.
-0
JIS-C-5140 and 5102 85°C
Not more than 0.01CV or
0.5µA, whichever is greater
C
Max
±12%
Max.
±15%
Max. tan
δ
0.1 ~ 1.0µF 6.0%
1.5 ~ 100µF 8.0%
0.1 ~ 1.0µF 6.0%
1.5 ~ 100µF 8.0%
Less than ±5%
Less than
specified value
Surge Voltage
Solder Heat Resistance
Humidity Test
Capacitance Change
Dissipation Factor
Leakage Current
Surge voltage applied, 1000 times with series
resistance of 1000Ω for 30 seconds at intermittent
intervals of 5 minutes

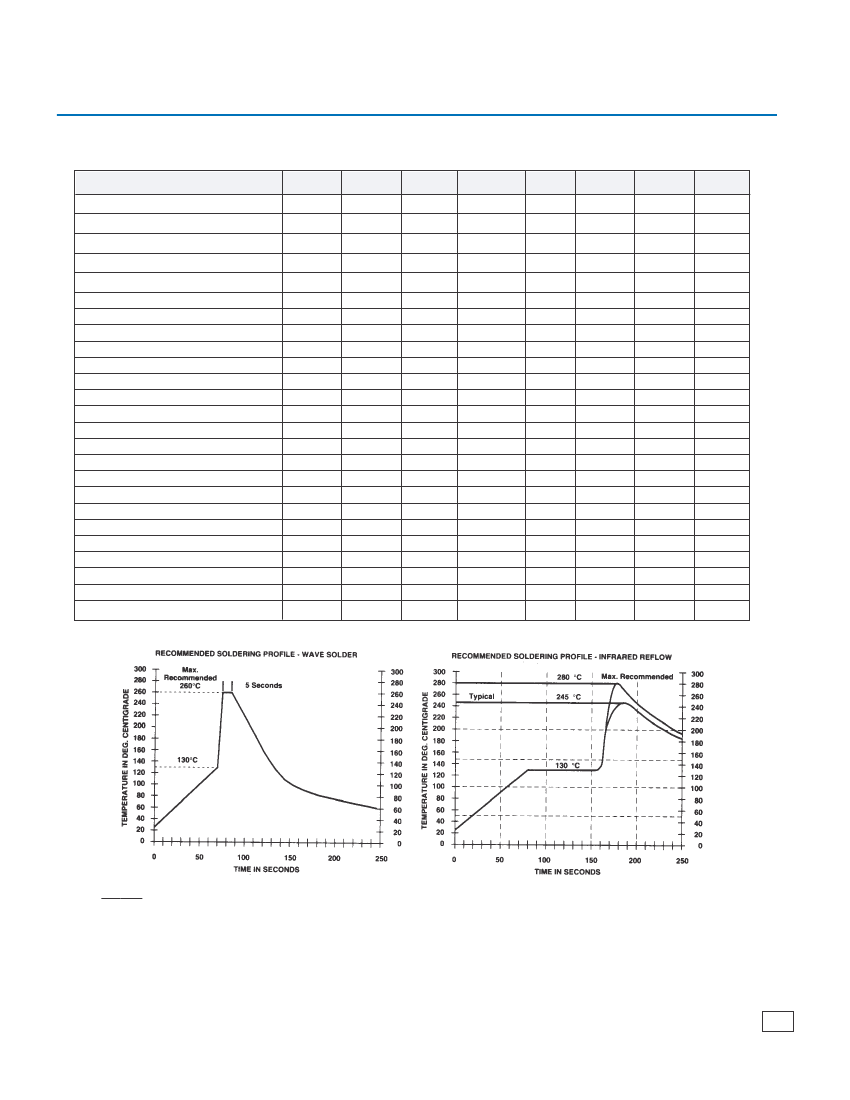

Withstand solder immersion 5 seconds at
260°C or reflow 10 seconds at 260°C

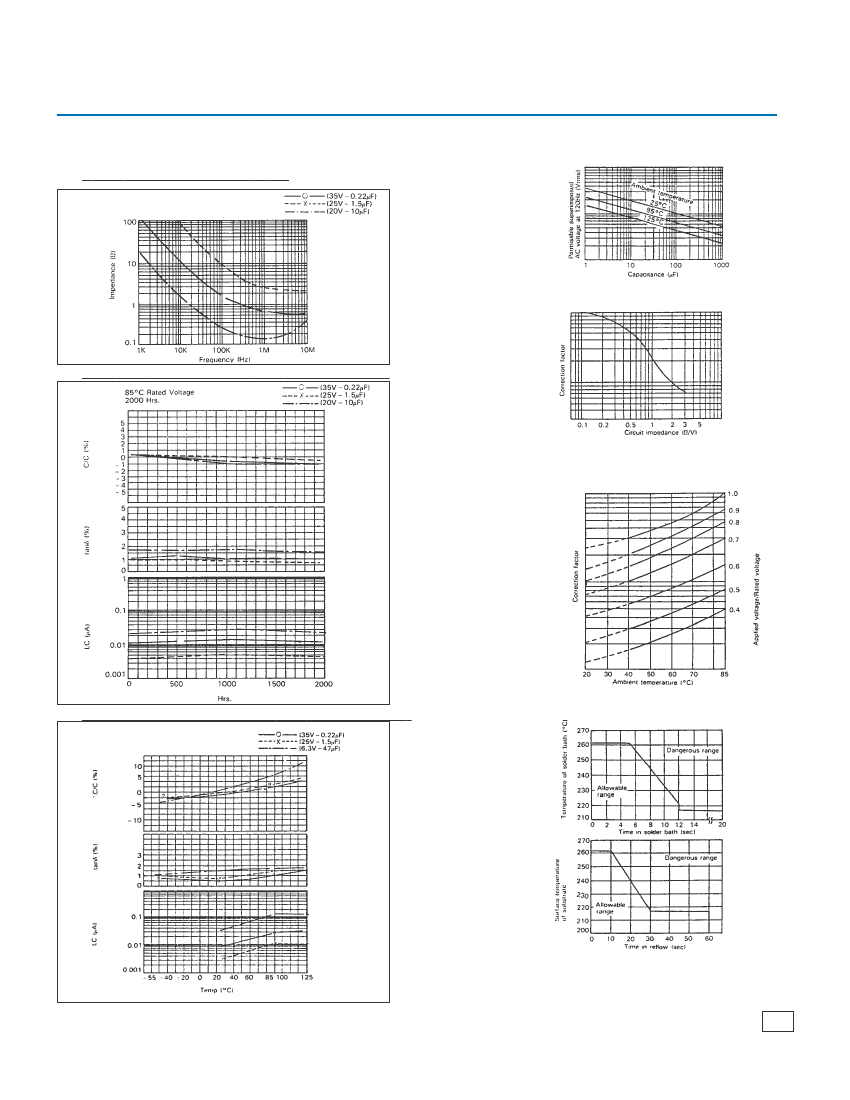

High Temperature Test
Failure Rate at 85°C
Capacitance Change
Dissipation Factor
Leakage Current
Capacitance Change
Dissipation Factor
Leakage Current
Less than ±5%
Less than initial
specified value
Less than ±10%
Less than initial
specified value
JIS-C-5102
at 60°C humidity 90% ~ 95% RH,
500 Hours
JIS-C-5102
85°C, Rated voltage 2000 hours or 125°C
Derating voltage 1000 hours with circuit
resistance of 1Ω/V
1% per 1,000 hours
MTBF 5 X 10
4
Hr.
