Cavity Filters High Frequency, Medium Bandwidth — FV Series
x

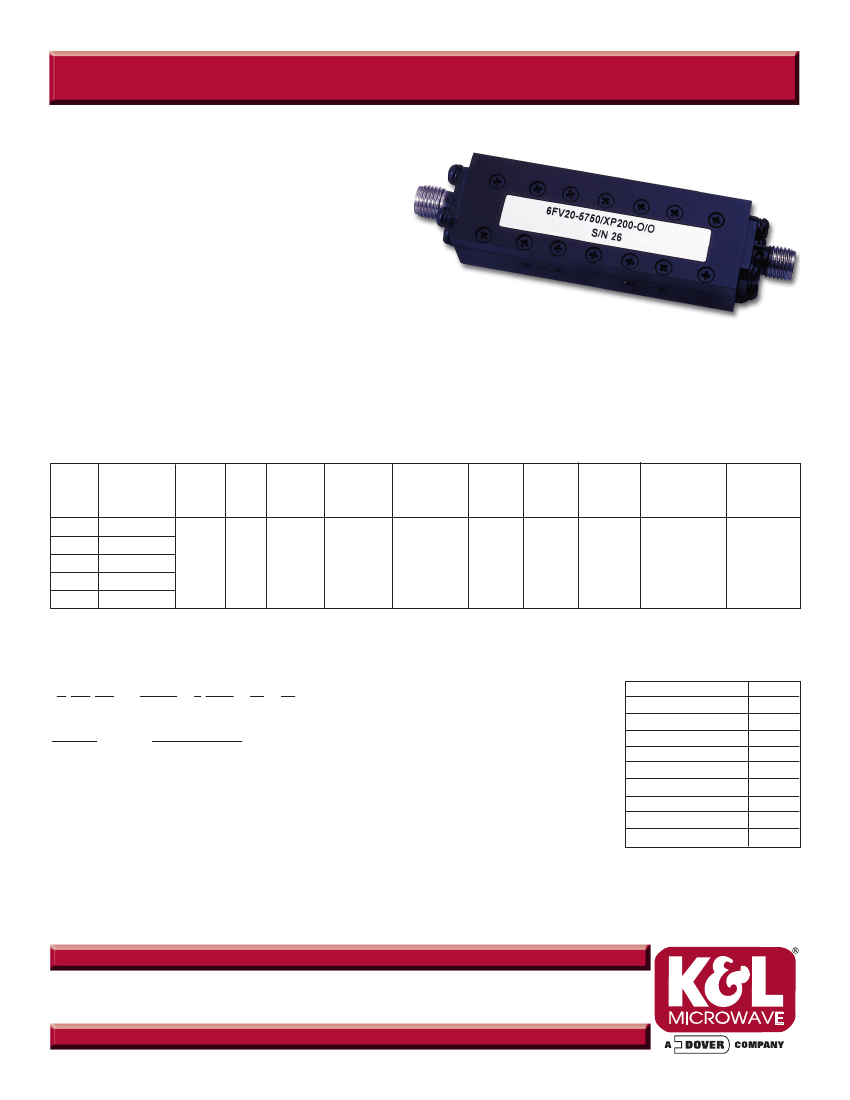

Features:
•
Small Package Design, High “Q” Response
•
Ruggedized Package Design
•
Covers the 500 MHz to 40 GHz Frequency Range
•
Combline Design Results in Low Insertion Loss Performance
•
3 dB BW Available from 3-18%
•
Designs Available in 2-17 Sections
•
Custom Package Designs Available
x
Specifications:
Insertion Passband
No. of
Model Frequency 3 dB % VSWR Loss
Return Impedance Sections Shock Vibration Temperature
(GHz)
BW
(Ohms)
FV-50
FV-40
FV-30
FV-20
FV-10
.5-2
2-5
3-8
4-10
7-18
0.1 dB
per
1.5:1 section >=3.5 X
f
0
@
BW>=5%
20 G’s, 10 G’s,
1/2 Sine, 10 Hz- -55 to +85 °C
11 Ms 2000 Hz
Relative
Humidity
3-18
50
2-17
0-95%
x
To Order:
x
Connectors:
Connector
Code
O
SMA Female
OP
SMA Male
N*
N Female
NP*
N Male
T*
TNC Female
TP*
TNC Male
P
RF Pins
Removable SMA RO
OB
Blind Mate
*Requires .75 W and .75 H
5 FV 20 — 6575 / T 750 - O / O
1 2 3
4
5 6
7 8
Code
1
2
3
4
5
6
7
8
Description
Number of Sections
Series (FV-Combline)
Package Designator 20 Series
Center Frequency (MHz)
Supplemental Codes (See Page 13)
Bandwidth (MHz)
Input Connector
Output Connector
Filtering Solutions for Your Global Market
USA
Phone: 410-749-2424
FAX:
410-749-5725
Email: sales@klmicrowave.com
EUROPE
Phone: +44-(0)-1908-547920
FAX:
+44-(0)-1908-695284
Email: sales@kleurope.com
TM
Order On-Line @ www.klmicrowave.com
Cavity Filters High Frequency, Medium Bandwidth — FV Series
x
Attenuation:

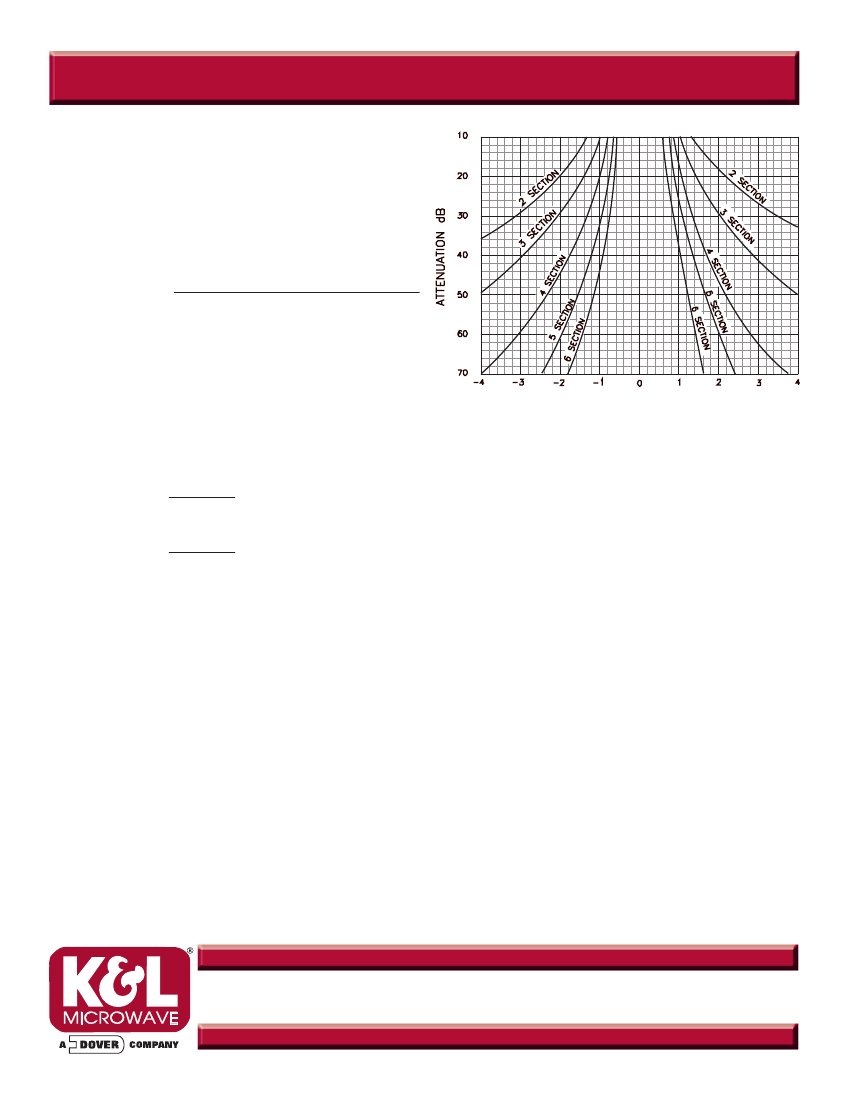

The adjacent curve is used to determine the out-of-
band or stopband attenuation for K&L’s combline
filters. This curve shows the attenuation as multiples of
the 3 dB bandwidth for filters up to 13 sections. The
formula for approximate stopband attenuation:
3 dB BW from
f
0 =
Reject Frequency-Center Frequency
3 dB BW
Example:
Center Frequency = 6575 MHz
3 dB Bandwidth = 750 MHz
Number of Sections = 7
Find the attenuation at 5600 MHz and 7550 MHz by
substituting in the formula:
3 dB BW from
f
0
= 5600-6575 = -1.3 BW
750
3 dB BW from
f
0
= 7550-6575 = +1.3 BW
750
From the 7 section curves -1.3 BW and +1.3 BW yield
approximately 56 dB
x
Mechanical:
The mechanical dimensions and mounting hole locations are dependent upon the design parameters
specified by the customer. Contact K&L Microwave for details.
