164A13089X: DescriptionD Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size180KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

164A13089X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	164A13089X	-	-	View	Buy Now

164A13089X Overview

D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

164A13089X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compli
ECCN code	EAR99
Other features	MNT BKT & GND CLIP
body width	0.509 inch
subject depth	0.606 inch
body length	1.228 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	16
Plug contact pitch	0.109 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.15 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	3.336 N

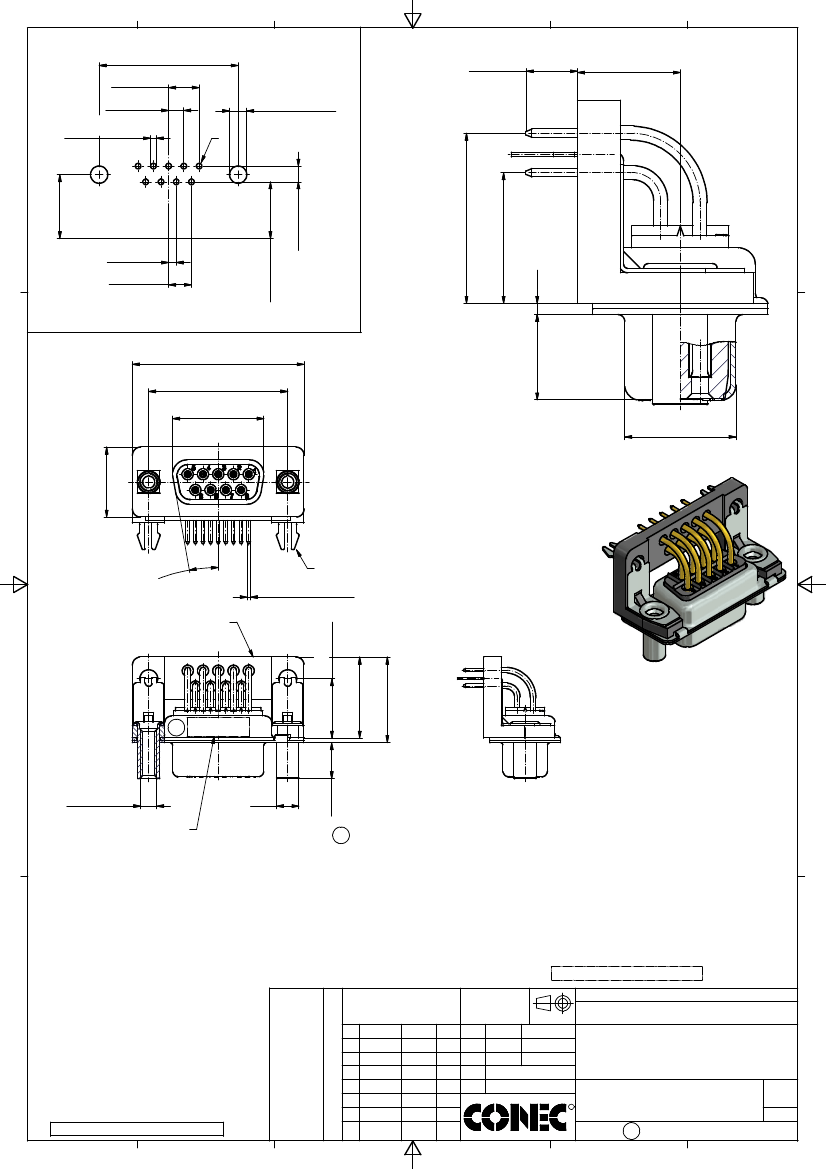

Preview

Download Datasheet

View All

F

E

D

C

B

A

25

+ 0,13

-

5,49

`

0,1

2,74

`

0,1

n

1

+ 0,1

(9x)

-0

D

0,12

3,7

+ 0,6

- 0,2

n

3,1

`

0,1

(2x)

7,4

`

0,3

1

(5:1)

D

2,84

`

0,1

12,24

`

0,3

11,5

P.C.B EDGE

P.C.B. HOLE DRILLINGS

(P.C.B. TOP SIDE)

30,88

+ 0,31

- 0,45

25

+ 0,13

-

16,41

+ 0,05

- 0,2

C

0,12

6,13

+ 0,17

- 0,08

0,8

4,11

`

0,1

10,2

`

0,1

1,37

`

0,1

9,4

`

0,3

8

+ 0,02

- 0,23

C

12,6

+ 0,33

- 0,43

10°

GROUNDING CLIP

n

0,6

`

0,05

(9x)

10,7

`

0,2

MOUNTING BRACKET

14,6 max.

B

b

164

o

13089X

CONEC ABC

15,4

B

6,5

THIS DRAWING MAY NOT BE COPIED OR

REPRODUCED IN ANY WAY, AND MAY NOT

BE PASSED ON TO A THIRD PARTY WITHOUT

WRITTEN PERMISSION.

OWNERSHIP AND COPYRIGHT OF CONEC GmbH

4-40 UNC

SEE NOTE 8

n

4

NOTES:

1. METALSHELLS: STEEL; min. 315µin TIN over 40-80µin NICKEL

2. INSULATORS: PBT GF UL 94 V-0, BLACK

b

3. CONTACTS: COPPER ALLOY; PLATING (SEE PART NO.):

o

PLEASE ADD A for GOLD FLASH over NICKEL (PREFERRED TYPE)

o

PLEASE ADD B for 20µin HARD GOLD over min. 50µin NICKEL

o

PLEASE ADD C for 30µin HARD GOLD over min. 50µin NICKEL

4. MOUNTING BRACKET: PBT GF UL 94 V-0, BLACK

5. THREADED LOCKS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

6. GROUNDING CLIPS: COPPER ALLOY; min. 200µin TIN over 80µin NICKEL

PCB-HOLE:

n

3.1

`

0.1; PCB THICKNESS 1.6mm

7. MAXIMUM TORQUE VALUE FOR THREAD: 6 in.LB

8. CONNECTOR IS PART MARKED: 164

o

13089X CONEC ABC (see note 3)

DO NOT ALTER CAD DRAWING BY HAND

tolerance

dim. in mm

date

drawn

25.02.09

appd.

norm

d-old

scale:

material:

name

2:1 (5:1)

SEE NOTES

A

title:

Lehmenkühler

Fischer

D-SUB FEMALE 90°

9pos. SOLDER PIN ANGLED 0.370inch

thread lock,mounting bracket,grounding clip

dwg no:

DIN-

25.02.09

16K2A1148

R

3xb

a

Ä5273

Original

10.07.2014 K.H.

16K1A1148

part no:

A3

sh: 1

Directive 2002/95/EC RoHS compliant

F

E

rev. description

D

date

name

C

b

164

o

13089X

(see note 3)

A

B
