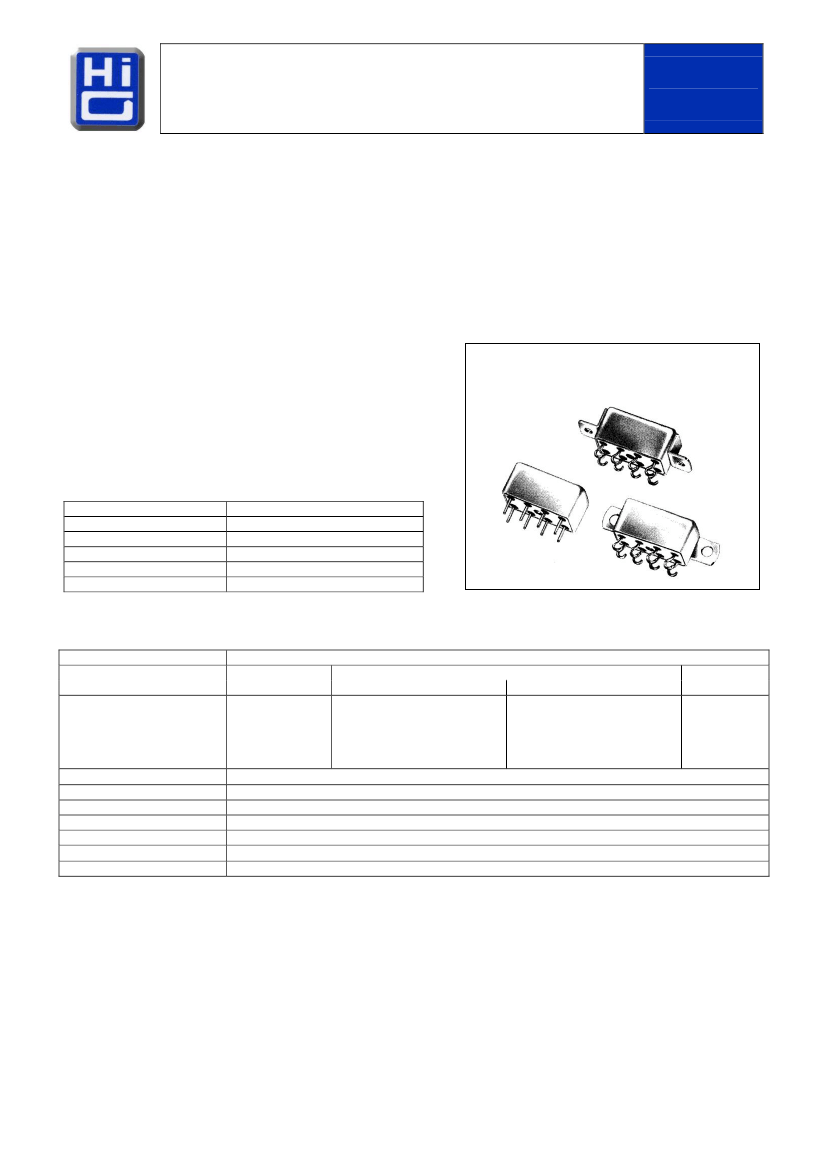

1/5 SIZE CRYSTAL CAN RELAY
2 AMPERE DPDT, .150 GRID
Product Description
Series
2G-7400
A complete series of 1/5 crystal can hermetically sealed relays manufactured in compliance to the referenced Military specification.
The leading relay design in military and commercial application is represented in Hi-G 2G-7400 series relay. The product advanced
design provides superior performance in the environmental and operational requirements of today’s sophisticated equipment.
The following construction features ensure the highest reliability in extreme environments:
-
All welded relay construction
-
Cleaning and sealing techniques ensures maximum internal cleanliness
-
Low level to 2 amperes switching
-
2 form C, DPDT contacts, special metal alloy with gold plating
-
Frame, armature designs and force / mass ratio provides exceptional immunity to shock and vibration.
Series Type
-
2G-7400
2 form C, DPDT
COMPLIANT TO
M39016/13
Environmental and Physical Specifications
Temperature (Ambient)
Shock
Vibration (sinusoidal)
Acceleration
Sealing
Weight
- 65°C to + 125°C
100 g, 6 ms.
20 g, 10 to 3000 Hz
50 g
All welded, Hermetic
0,17 oz. (5,29 grams) max.
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Coil Data
Contact Rating
(Note: All ratings with grounded
case)
See Typical Characteristics chart
Cycles min.
High Level
Low Level
Resistive
2 A / 28 Vdc
100.000
10 to 50
A
/ 10 to 50 mV
0,3 A / 115 Vac, 60 and 400 Hz N/A
100.000
Overload
4 A / 28 Vdc
100
N/A
Inductive
1 A / 28 Vdc (200 mH)
100.000
N/A
Lamp
0,1 A / 28 Vdc
100.000
N/A
0,05
max. initial, 0,1
max. after life high level, 0,15
max. after low level
4,0 ms. Max.
4,0 ms. Max.
2,0 msec. max.
750 Vrms min., 60 Hz, all points, 500 Vrms min. between open contacts and coil to case, at sea level
10.000 M min. all points at 500 Vdc
135 milliwatts at 25 °C
Type Load
Contact Load
Contact Resistance
Operate Time
Release Time
Contact Bounce
Dielectric Strength
Insulation Resistance
Sensitivity
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
REV. 0/2012
1/5 SIZE CRYSTAL CAN RELAY
2 AMPERE DPDT, .150 GRID

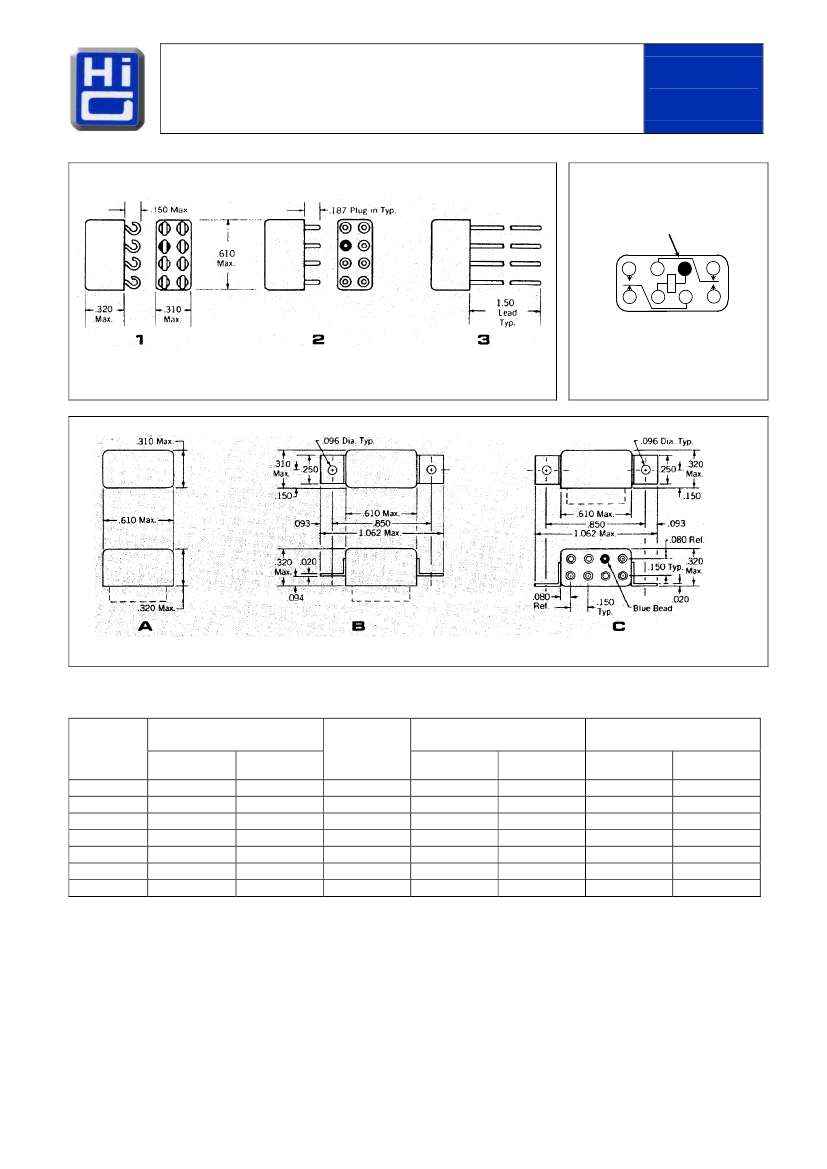

Terminal Styles
Series
2G-7400
Schematic Diagram
Blue Bead
B1
A2
X1 A3
B3
X2
B2
A1
Note:
- Dimensions are shown in inches (millimetres)
- Terminal spacing is .150. Terminal diameter is .020
Note:
- Schematic are viewed from terminals
Mounting Styles
Note:
- Dimensions are shown in inches
Electrical Characteristics
(over the Temperature range. Unless otherwise noted)
Voltage
Code
105
106
109
112
118
126
136
Coil Voltage
(Vdc)
Nom.
5
6
9
12
18
26,5
36
Max.
7
8
12
16
24
35
46
DC Coil
Resistance
(ohms ±10%
@ 25°C)
Max. Pick-UpVoltage
(Vdc)
25°C
2,4
2,7
4,4
5,4
9,5
13,5
17,1
125°C
3,3
3,8
6,0
7,4
12,8
18,0
23,0
Min. Drop-out Voltage
(Vdc)
25°C
0,26
0,30
0,50
0,60
1,00
1,50
1,90
125°C
0,16
0,18
0,30
0,36
0,60
0,90
1,20
44
56
140
210
650
1350
2245
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
REV. 0/2012
1/5 SIZE CRYSTAL CAN RELAY
2 AMPERE DPDT, .150 GRID
Products Cross Reference
M39016
/13
Dash #
055
056
057
058
059
060
061
062
063
064
065
066
067
068
069
070
071
072
073
074
075
076
077
078
079
080
081
082
083
084
085
086
Hi-G
Header Style
2
2
2
1
1
1
3
3
3
1
1
1
3
3
3
2
2
2
2
3
2
3
2
3
3
3
3
2
3
1
3
2
Hi-G
Enclosure
Style
A
A
A
C
C
C
C
C
C
B
B
B
B
B
B
B
B
B
A
A
A
A
A
A
A
A
A
A
A
C
C
B
Voltage
Code
106
112
126
106
112
126
106
112
126
106
112
126
106
112
126
106
112
126
105
106
109
112
118
126
105
109
118
136
136
136
136
136
M39016
/13
Dash #
087
088
089
090
091
092
093
094
095
096
097
098
099
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
Hi-G
Header Style
1
3
1
1
1
2
1
3
2
1
3
1
2
2
1
3
2
1
3
1
2
2
1
3
2
1
3
1
2
2
1
Series
2G-7400
Hi-G
Enclosure
Style
B
B
A
A
A
C
C
C
B
B
B
A
C
C
C
C
B
B
B
A
C
C
C
C
B
B
B
A
C
C
A
Voltage
Code
136
136
106
112
126
105
105
105
105
105
105
105
106
109
109
109
109
109
109
109
112
118
118
118
118
118
118
118
126
136
136
How to Order, (Part Numbering System)
2G-7400
-
057
A
Series Type
Reliability levels A or B
Dash number (see cross reference
table)
Note:
Failure rate reliability level
Military
Suffix
L
M
Hi-G
Suffix
A
B
FR
% / 10000
cycles
3,0
1,0
- Relays compliant to M39016/13 are designated 2G-7400 and applicable dash numbers
coincide with Hi-G dash numbers
High Generation S.r.l.
Tel: + 39 06 96873136
Fax: + 39 06 94443060
REV. 0/2012
