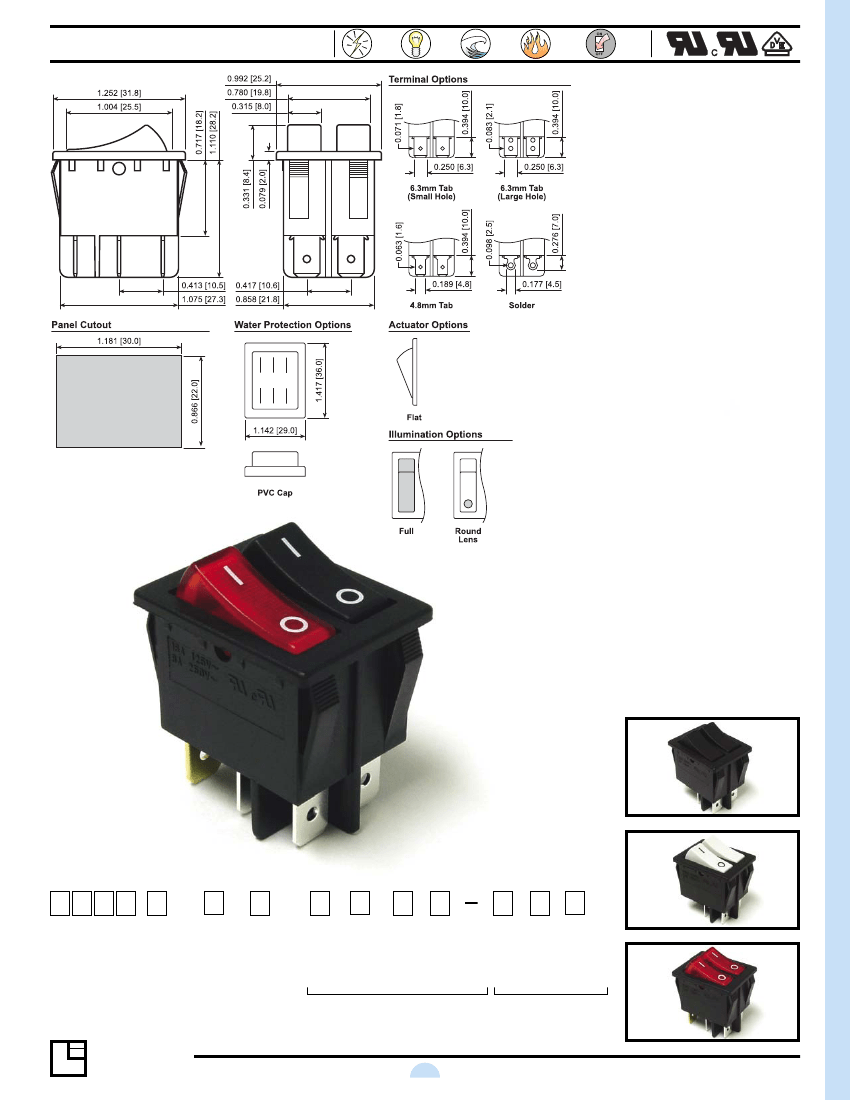

RB4-Series
High
Amperage
Illuminated
Water
Protection
High
Temperature
Front
Panel Mount
The
RB4-Series
is the dual actuator
version of the RB1-Series. This industry
standard 22mm x 30mm rocker switch
features crisp and clean actuation as
well as various terminal, actuator, and
illumination options making this switch
quite versatile. A PVC cap is also avail-
able to provide IP54 water protection.
SPECIFICATIONS:
R
ATING
:
16A 125VAC [UL, cUL]
8A 250VAC [UL, cUL]
16(4)A 250V~ 1E4 T125 [VDE]
E
LECTRICAL
L
IFE
:
10,000 Cycles
W
ITHSTAND
V
OLTAGE
:
1,500VAC for 1 Minute
I
NSULATION
R
ESISTANCE
:
100MΩ at 500VAC
C
ONTACT
R
ESISTANCE
:
35mΩ at 50VAC
MATERIALS:
B
ODY
:
Polyamide 6/6, UL 94V-2
A
CTUATOR
:
Polyamide 6/6, UL 94V-2
Polycarbonate, UL 94V-2
C
ONTACTS
:
Silver Plated Copper
T
ERMINALS
:
Silver Plated Copper
EXAMPLE PART NUMBERS:
RB4B1C1(021-116+121):
Photo A
Left Side:
Off-On, 6.3mm tab terminals
with large holes, black body, fully illumi-
nated red actuator, 125V neon bulb, white
vertical I/O marking.
Right Side:
Off-On, 6.3mm tab terminals
with large holes, black actuator, white
vertical I/O marking.
RB441C1100:
Photo B
Left and Right Sides:
Off-On, 6.3mm tab
terminals with small holes, black body and
actuator, no markings.
RB4B(1C1211+3C1200):
Photo C
Left Side:
Off-On, 6.3mm tab terminals
with large holes, black body, white actua-
tor, black vertical I/O marking.
Right Side:
On-On, 6.3mm tab terminals
with large holes, white actuator, no mark-
ing.
RB4B1C1021-116:
Photo D
Left and Right Sides:
Off-On, 6.3mm tab
terminals with large holes, black body,
fully illuminated red actuator, 125V neon
bulb, white vertical I/O marking.
A
B
Series
Terminal
Function
Rating
Body
Color
Actuator
Color
Marking Marking
Color
Type
Lens
Style
Lens
Color
Lamp
Voltage
RB4
- Curved
RB4F
- Flat
1
- 4.8mm Tab
4
- 6.3mm Tab
(Small Hole)
5
- Solder
B
- 6.3mm Tab
(Large Hole)
1
- Off-On
3
- On-On
C
- 16A 125VAC
1
- Black
8A 250VAC
2
- White
16(4)A 250V~
3
- Almond
4
- Grey
8
- Green
9
- Red
0
- Full Illum.
1
- Black
2
- White
3
- Almond
4
- Grey
5
- Orange
8
- Green
9
- Red
0
- None
1
- Black
2
- White
8
- Red
0
- None
1
- I/O Vert.
3
- On/Off Vert.
4
- On/Off Horiz.
R
- I/O Horiz.
1
- Full
0
- Clear
2
- Round
1
- Red
2
- Amber
3
- Green
4
- Blue
5
- Yellow
1
- 2V
3
- 6V
4
- 12V
5
- 24V
6
- 125V
7
- 250V
8
- 125/250V
C
Custom Colors and Markings Available upon Request
Include Illumination Options
on Illuminated Switches Only
Usage Note: Options are for each actuator. If the two actuators differ, include differing options in parentheses. See Example Part Numbers for details.
LAMB
INDUSTRIES
D
Portland, OR USA
