0850090452 datasheet, PDF - EEWORLD Datasheet

0850090452: Description2.54mm (.100) Pitch DIN 41612/EIC 603-2 Mixed Layout Connector, Male Style M, Right Angle, Through Hole, 0.6Î¼m (24Î¼) Selective Gold (Au); File Size148KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

0850090452 Overview

2.54mm (.100) Pitch DIN 41612/EIC 603-2 Mixed Layout Connector, Male Style M, Right Angle, Through Hole, 0.6Î¼m (24Î¼) Selective Gold (Au)

Preview

Download Datasheet

View All

This document was generated on 05/17/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0850090452

Active

din_41612

2.54mm (.100") Pitch DIN 41612/EIC 603-2 Mixed Layout Connector, Male Style M,

Right Angle, Through Hole, 0.6µm (24µ ") Selective Gold (Au), with First-Mate-Last-

Break Pins, 64 Circuits

Documents:

3D Model

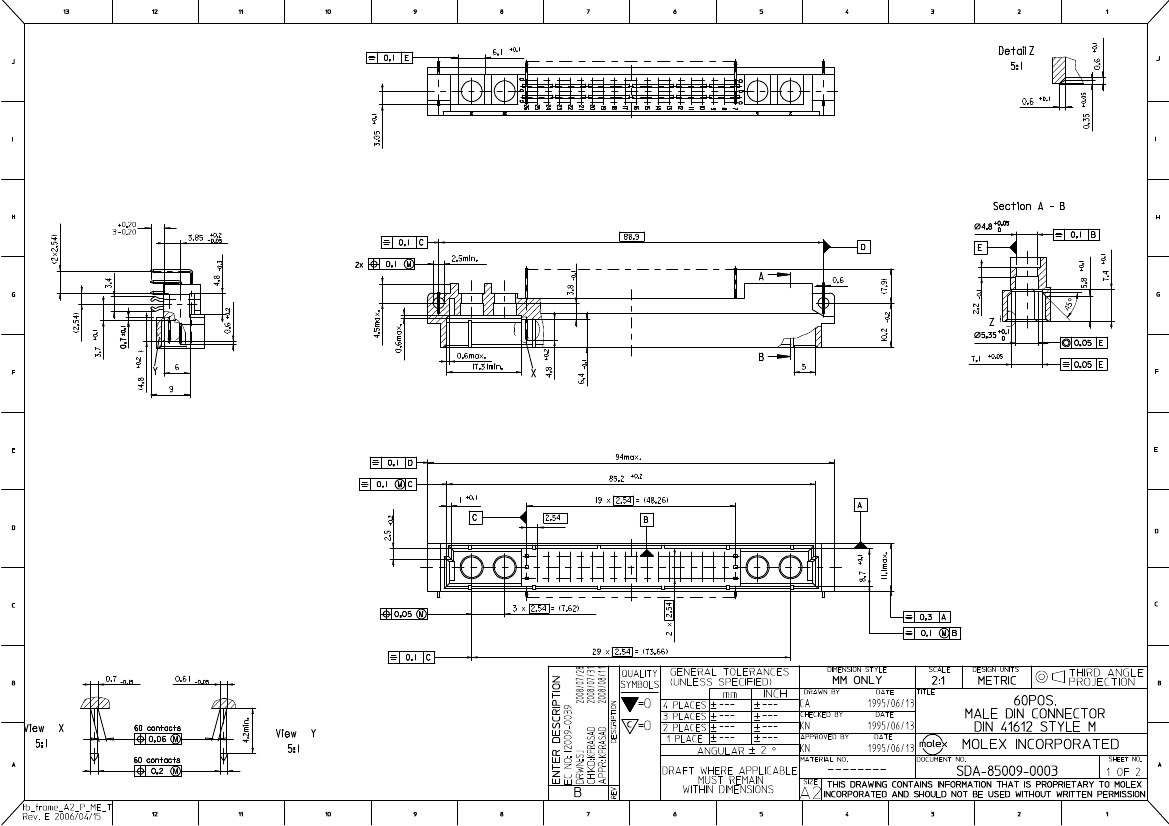

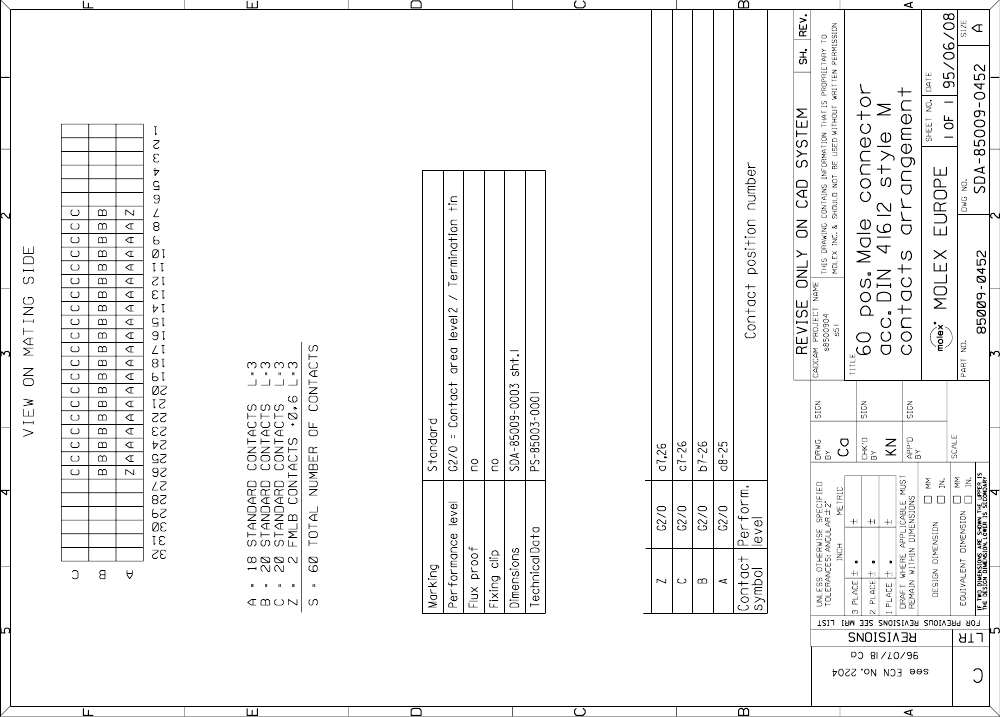

Drawing (PDF)

Product Specification PS-85003-0001 (PDF)

RoHS Certificate of Compliance (PDF)

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

85009

Backplane

Mixed Layout

PCB Header

din_41612

IEC 603-2/DIN 41612

Search Parts in this Series

85009Series

Mates With

85048 , 85056

Use With

85023

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Flammability

Keying to Mating Part

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Temperature Range - Operating

60 + 4

400

Yes

94V-0

Yes

Open Pin Field

Right Angle

0.118 In

3.00 mm

None

0.062 In

1.60 mm

Tray

0.100 In

2.54 mm

0.100 In

2.54 mm

-55°C to +125°C

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

1.5A

622.0 Mbps

250V AC (RMS)

Material Info

0850090452 Related Products

	0850090452	85009-0452
Description	2.54mm (.100) Pitch DIN 41612/EIC 603-2 Mixed Layout Connector, Male Style M, Right Angle, Through Hole, 0.6Î¼m (24Î¼) Selective Gold (Au)	2.54mm (.100) pitch din 41612/eic 603-2 mixed layout connector, male style M, right angle, through hole, 0.6??m (24??) selective gold (Au)
