0872632803 datasheet, PDF - EEWORLD Datasheet

0872632803: Description2.00mm (.079) Pitch Milli-Gridâ¢ Receptacle, Surface Mount, Bottom Entry, 0.38Î¼m (15Î¼) Gold (Au) Selective, 28 Circuits, with Pick-and-Place Cap, Tube, Leadfree; File Size358KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

0872632803 Overview

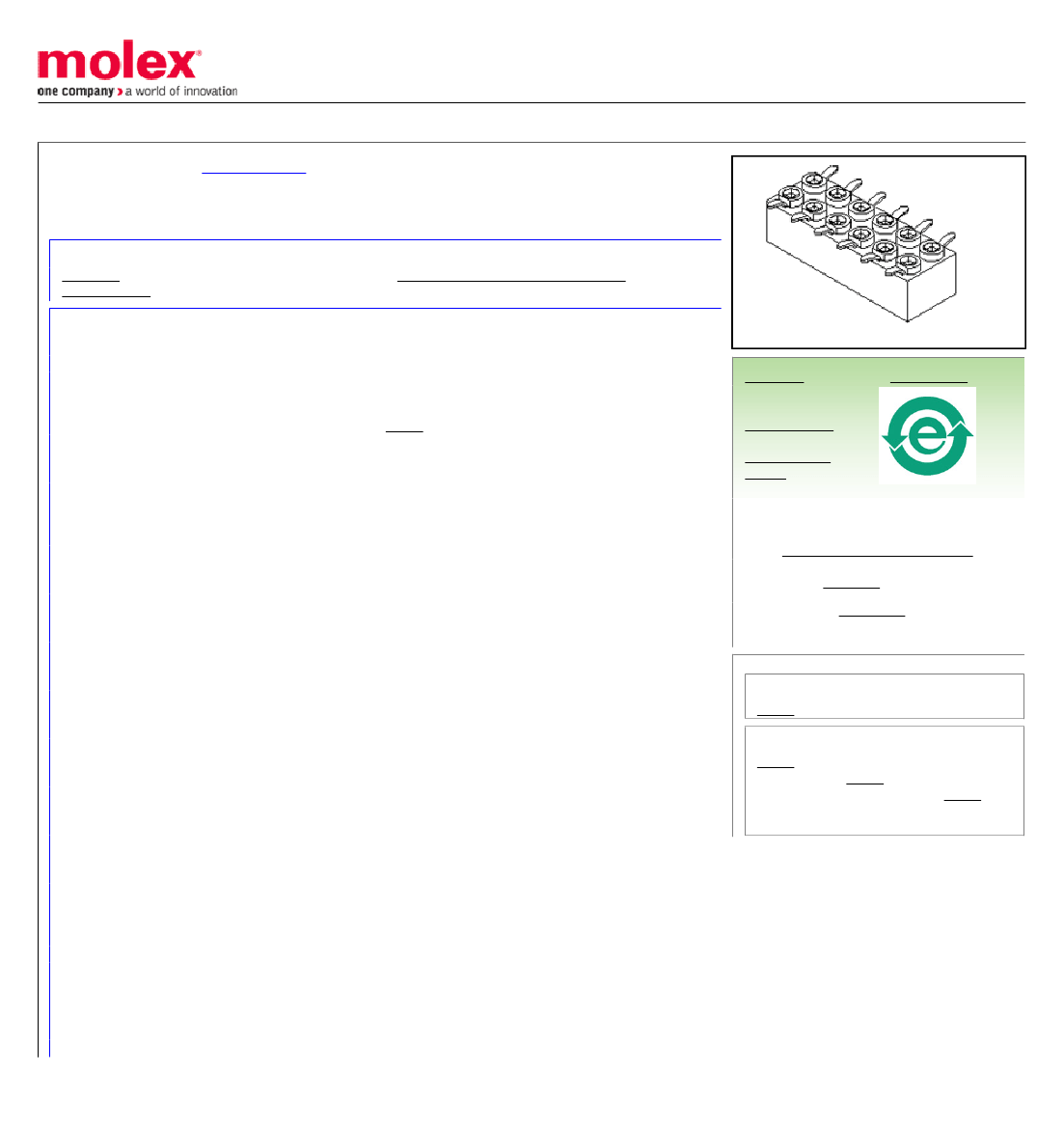

2.00mm (.079) Pitch Milli-Gridâ¢ Receptacle, Surface Mount, Bottom Entry, 0.38Î¼m (15Î¼) Gold (Au) Selective, 28 Circuits, with Pick-and-Place Cap, Tube, Leadfree

Preview

Download Datasheet

View All

This document was generated on 04/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0872632803

Active

2.00mm (.079") Pitch Milli-Grid™ Receptacle, Surface Mount, Bottom Entry, 0.38µm

(15µ") Gold (Au) Selective, 28 Circuits, with Pick-and-Place Cap, Tube, Leadfree

Documents:

3D Model

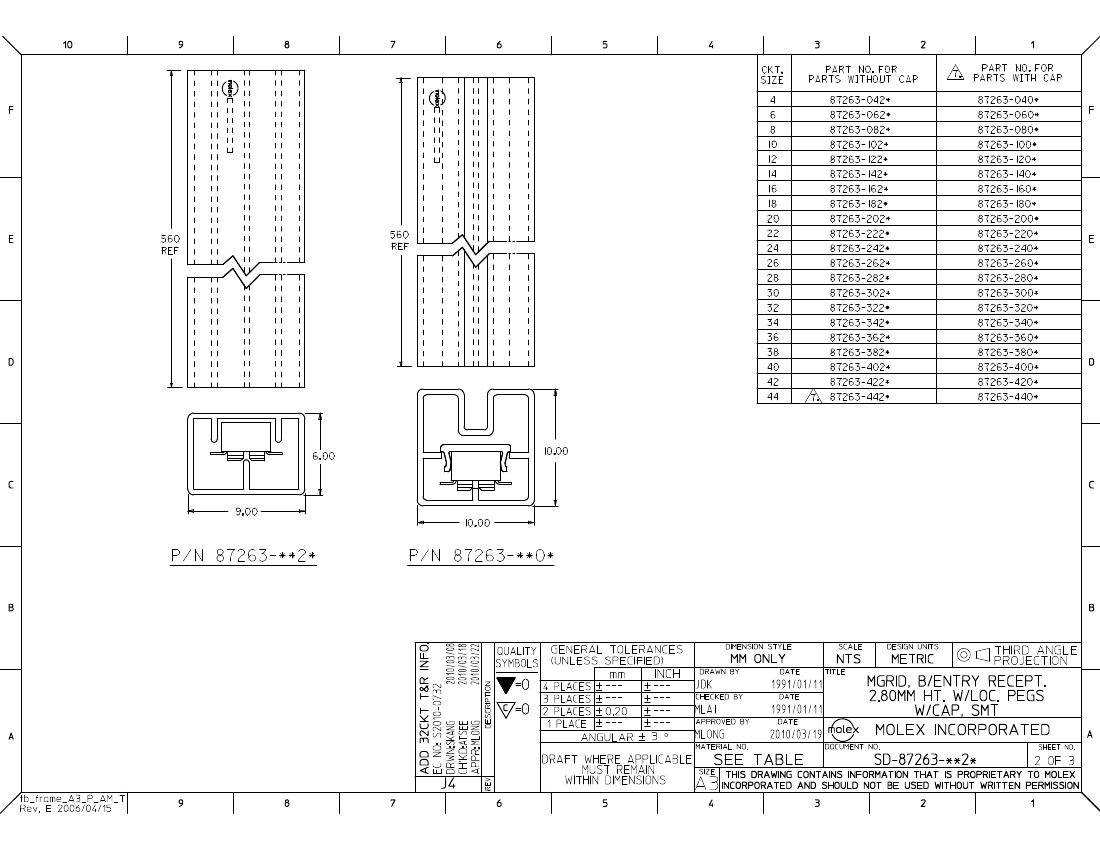

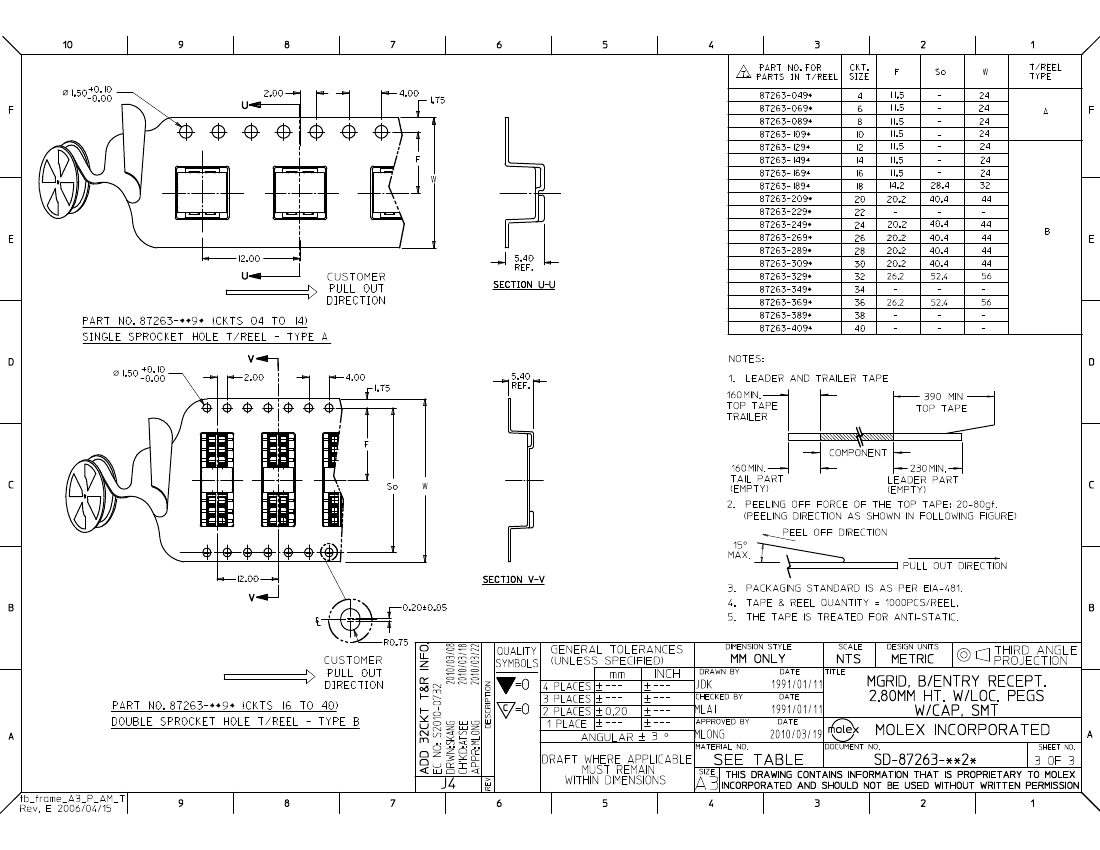

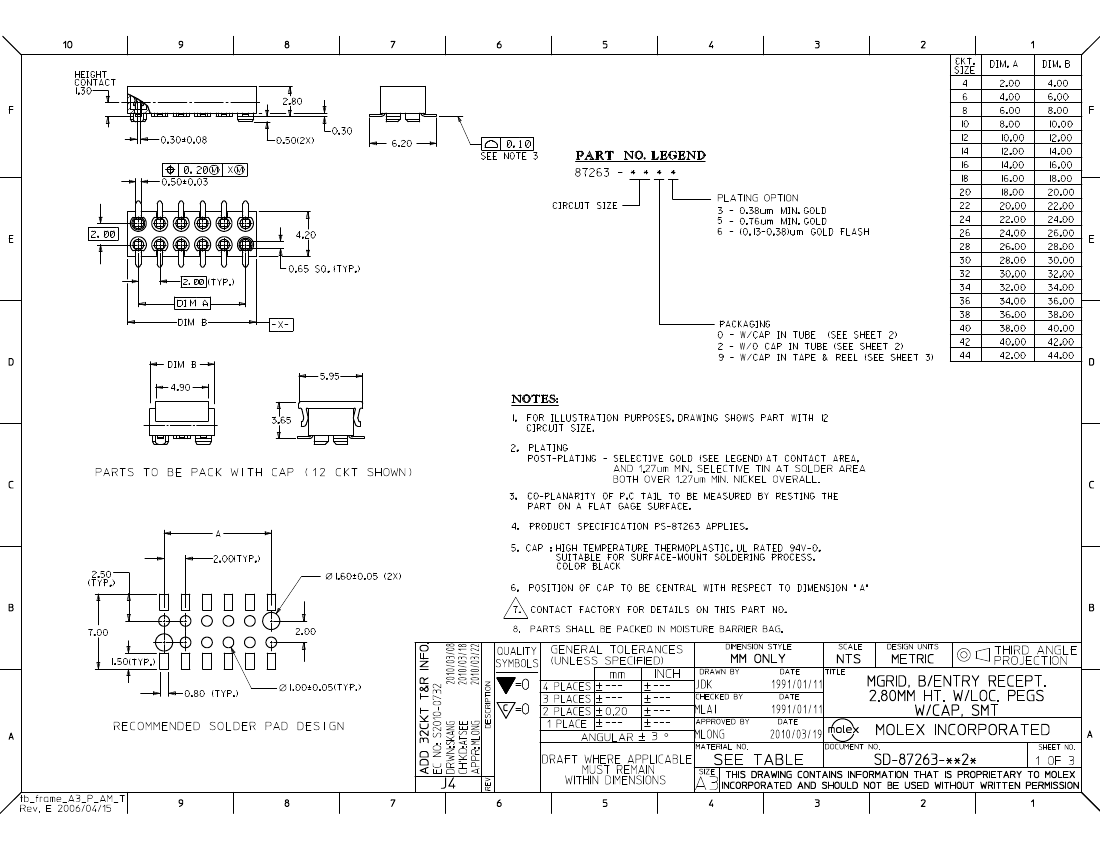

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Literature Order No

Product Name

PCB Receptacles

87263

Board-to-Board

987650-1991

Milli-Grid™

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Polarized to PCB

Robotic Placement

Temperature Range - Operating

Termination Interface: Style

Black

94V-0

None

Gold

Tin

High Temperature Thermoplastic

Bottom Entry

Yes

None

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

15.2

0.38

Yes

Pick and Place Cap

-55°C to +105°C

Surface Mount

Search Parts in this Series

87263Series

Mates With

87759 Vertical, Surface Mount, Stackable

PCB Headers, 87760 Right Angle, Through

Hole, Stackable PCB Headers, 87758

Vertical, Through Hole, Stackable PCB

Headers

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-87263-**2*
