EQUA34C3D1H-10.250MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQUA34C3D1H-10.250MTR

EQUA34C3D1H-10.250MTR: DescriptionTCVCXO, CLOCK, 10.25 MHz, CMOS OUTPUT; CategoryPassive components oscillator; File Size985KB，12 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EQUA34C3D1H-10.250MTR Overview

TCVCXO, CLOCK, 10.25 MHz, CMOS OUTPUT

EQUA34C3D1H-10.250MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	_compli
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	8 ppm
frequency stability	5%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	10.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.7mm
longest rise time	3 ns
Maximum supply voltage	2.94 V
Minimum supply voltage	2.66 V
Nominal supply voltage	2.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

Ecliptek | EQUA34 Series Oscillator

http://www.ecliptek.com/oscillators/EQUA34/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

EQUA34 Series Oscillator

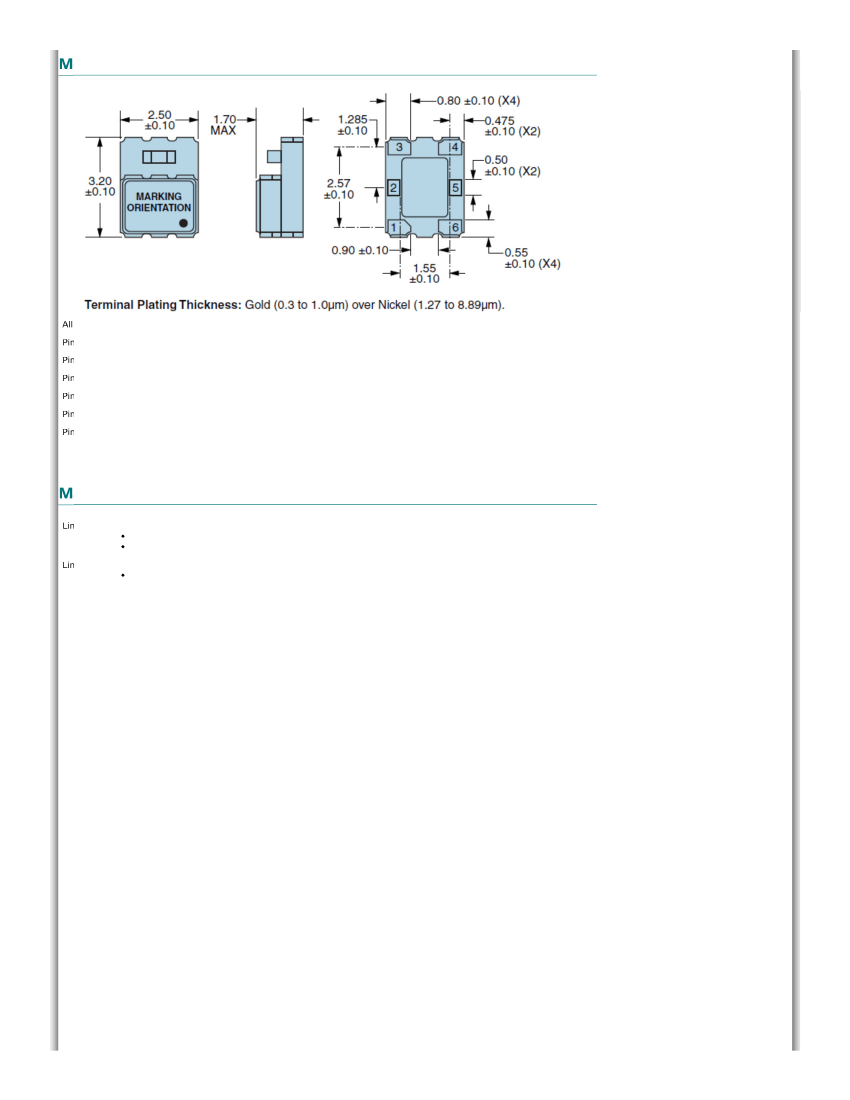

Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO LVCMOS (CMOS) 2.8Vdc 6 Pad 2.5mm

x 3.2mm Ceramic Surface Mount (SMD)

2011/65 +

2015/863

168 SVHC

Revision A 09/09/2015

Electrical Specifications

Nominal Frequency

10.000MHz to 200.000MHz

Some frequencies within this range may not be available.

Frequency Stability

Inclusive of Operating Temperature Range, at V

=2.8V

, at

=1.5V

±5.0ppm Maximum

±3.0ppm Maximum

±2.5ppm Maximum

±2.0ppm Maximum

±1.5ppm Maximum

±1.0ppm Maximum

At 25°C ±2°C, at V

=2.8V

, at V

=1.5V

±0.1V

, Pre-Reflow

±2.0ppm Maximum

±1.5ppm Maximum

±1.0ppm Maximum

±0.2ppm Maximum (±5%)

±0.2ppm Maximum (±2pF)

±1.0ppm Maximum (at 25°C, 24 hours after reflow, 1 time)

±1ppm/Year Maximum (at 25°C)

0°C to +50°C

-10°C to +60°C

0°C to +70°C

-20°C to +70°C

-30°C to +60°C

-30°C to +75°C

-30°C to +85°C

-40°C to +85°C

2.8V

±5%

Unloaded

20mA Maximum over Nominal Frequency of 10MHz to 50MHz

25mA Maximum over Nominal Frequency of 50.000001MHz to 100MHz

30mA Maximum over Nominal Frequency of 100.000001MHz to

200MHz

IOH = -4mA

90% of V

Minimum

IOL = +4mA

10% of V

Maximum

Measured at 10% to 90% of Waveform

3nSec Maximum

Measured at 50% of Waveform

50 ±5(%)

Frequency Stability vs. Frequency

Tolerance

Frequency Stability vs. Input Voltage

Frequency Stability vs. Load

Frequency Stability vs. Reflow

Frequency Stability vs. Aging

Operating Temperature Range

Supply Voltage

Input Current

Output Voltage Logic High (Voh)

Output Voltage Logic Low (Vol)

Rise/Fall Time

Duty Cycle

1 of 12

28-Jan-2016 2:36 PM
