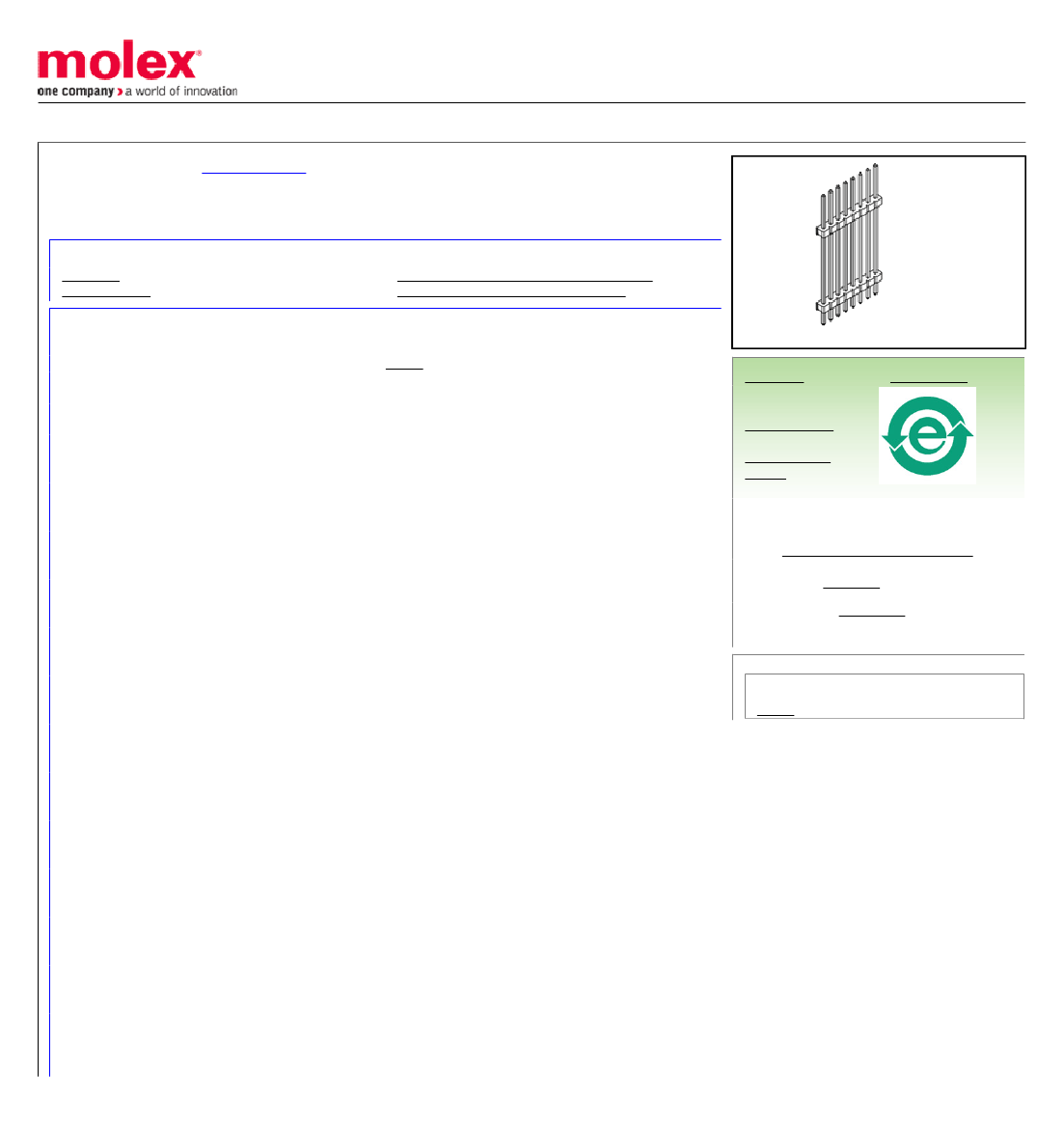

This document was generated on 04/20/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0877550800

Active

2.00mm (.079") Pitch PCB Header, Through Hole, Single Row Dual Body, Vertical, 8

Circuits, Tin (Sn) Overall, 19.00mm (.748") Stacking Height, Tray Packaging, Lead-free

Documents:

3D Model

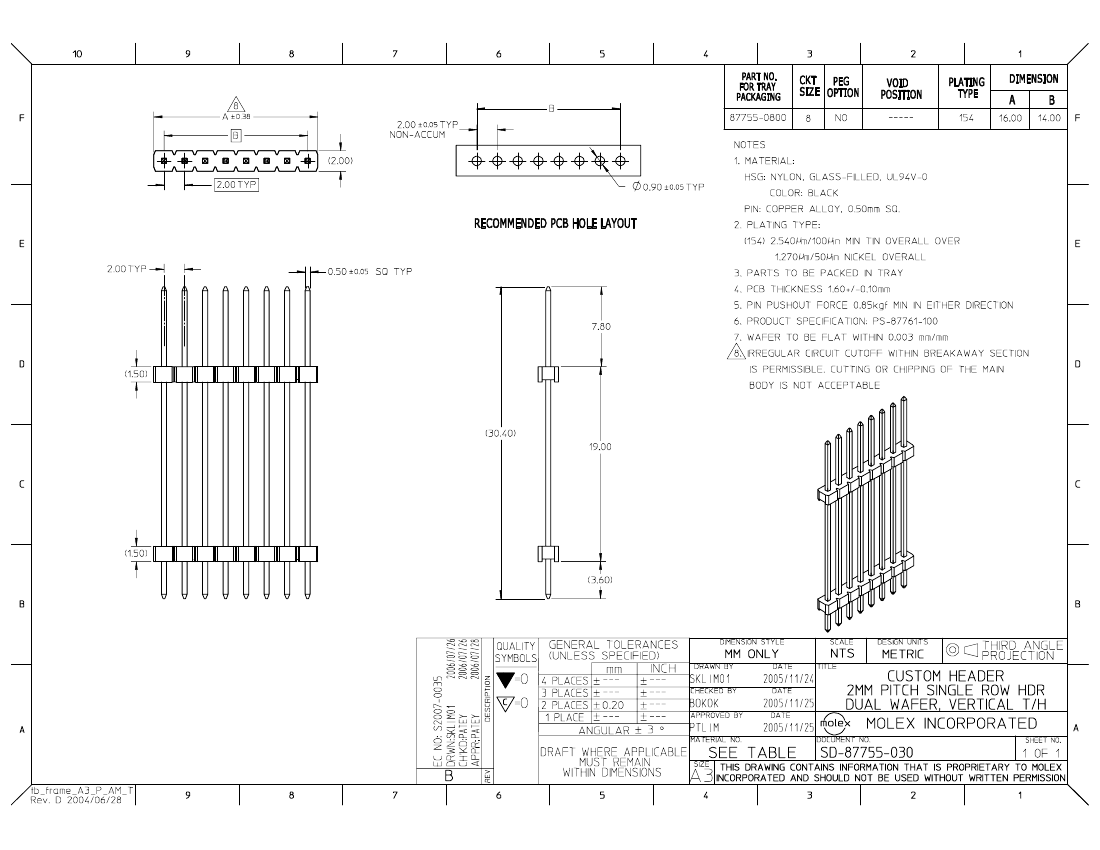

Drawing (PDF)

Product Specification PS-87761-100 (PDF)

RoHS Certificate of Compliance (PDF)

Series

PCB Headers

87755

Board-to-Board

Dual Body

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Product Name

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height (in)

Mated Height (mm)

Material - Metal

Material - Plating Mating

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Yes

Black

None

0.748 In

19.00 mm

Copper Alloy

Tin

Nylon

Vertical

0.142 In

3.60 mm

None

0.062 In

1.60 mm

Tray

0.079 In

2.00 mm

0.079 In

2.00 mm

100

2.54

Yes

-55°C to +105°C

Through Hole

Search Parts in this Series

87755Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

125V
