This document was generated on 05/26/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0877602618
Active
milligrid
2.00mm (.079") Pitch Milli-Grid™ Header, Right Angle, Through Hole, 26 Circuits,
2.54µm (100µ) Tin (Sn) Plating, Tray, Lead-free
Documents:
3D Model
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
Agency Certification
CSA
UL
LR19980
E29179

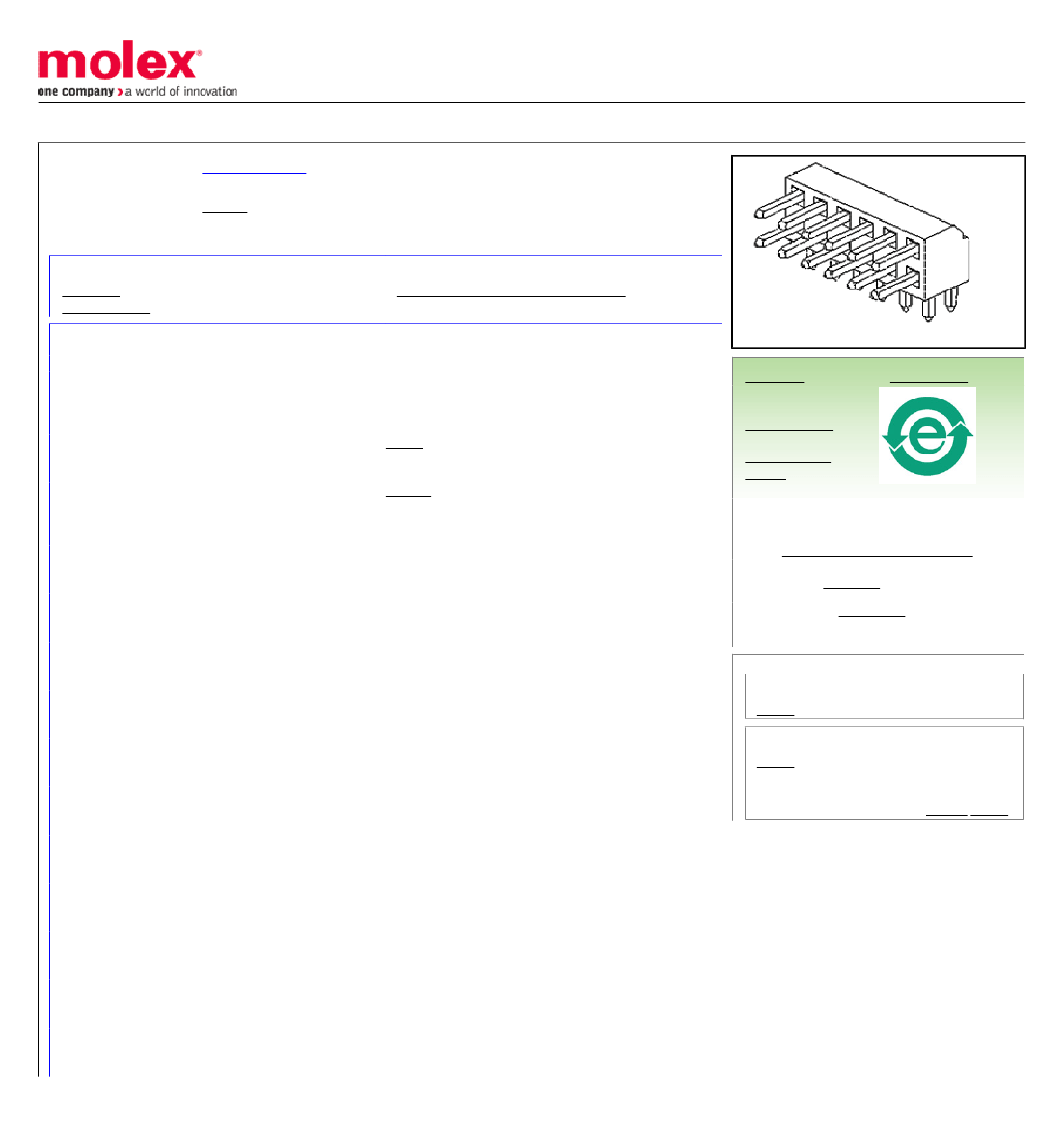

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Name
PCB Headers
87760
Board-to-Board, Wire-to-Board
Lead-free version of 87049 series
milligrid
Milli-Grid™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
No
26
26
Black
No
94V-0
No
No
None
None
0.157 In
4.00 mm
Phosphor Bronze
Tin
Nickel
High Temperature Thermoplastic
2
Right Angle
0.102 In
2.60 mm
No
None
0.062 In
1.60 mm
Tray
0.079 In
2.00 mm
0.079 In
2.00 mm
101.6
2.54
50
1.27
Search Parts in this Series
87760Series
Mates With
79107 Milli-Grid™ Receptacle, Vertical,
Through Hole. 79108 Milli-Grid™ Flex-to-
Board, Vertical Receptacle. Milli-Grid™
Receptacle, Surface Mount. 79109. 87381
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
No
No
No
Yes
-55°C to +105°C
Through Hole
Electrical
Current - Maximum per Contact
Voltage - Maximum
2A
125V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
14
Wave Capable (TH only)
1
265
Material Info
Reference - Drawing Numbers
Sales Drawing

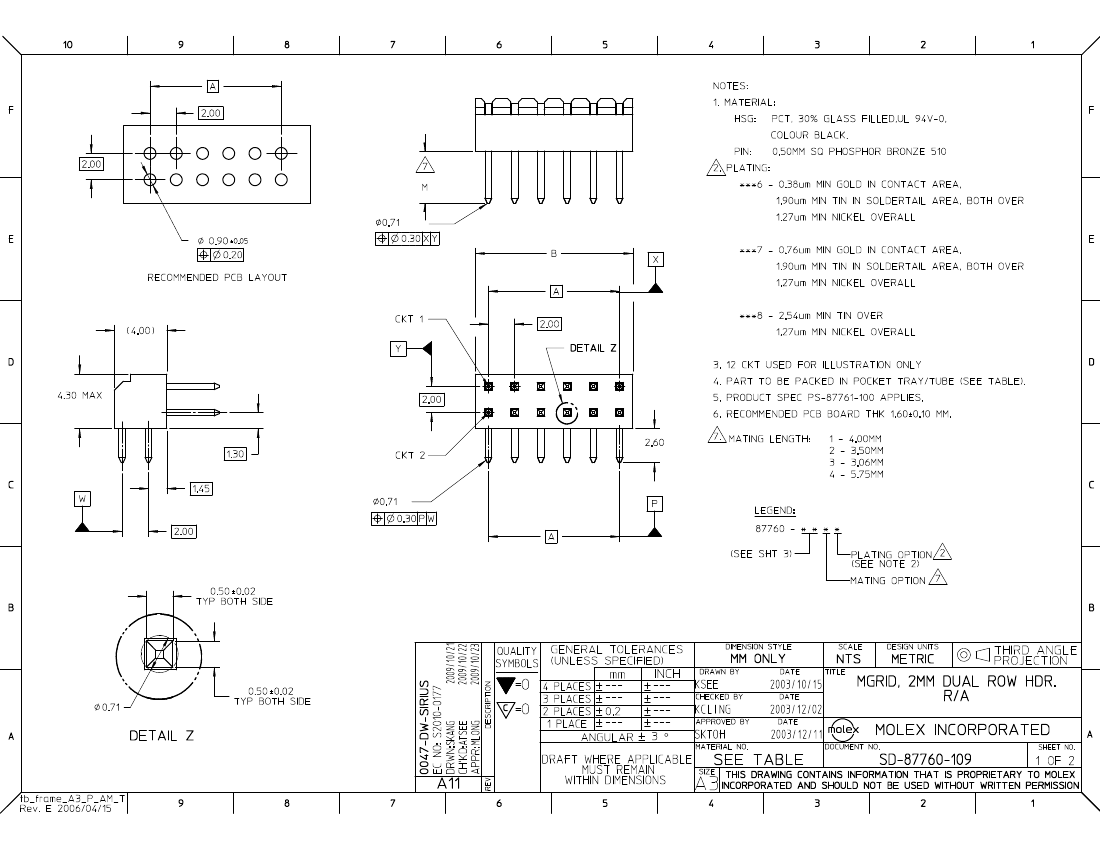

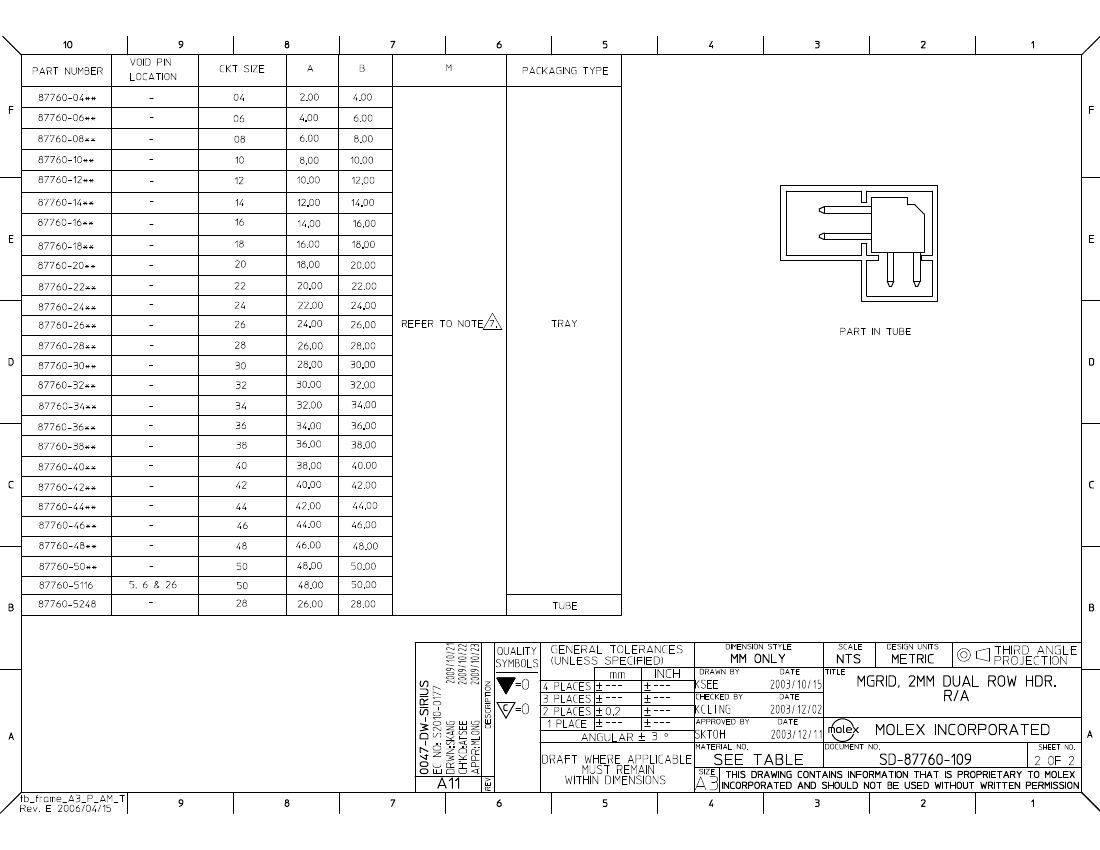

SD-87760-109
