0878313828 datasheet, PDF - EEWORLD Datasheet

0878313828: Description2.00mm (.079) Pitch Milli-Gridâ¢ Header, Vertical, Through Hole, Shrouded, Lead-free, 38 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Plating, Center Polarization Slot; File Size192KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

0878313828 Overview

2.00mm (.079) Pitch Milli-Gridâ¢ Header, Vertical, Through Hole, Shrouded, Lead-free, 38 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Plating, Center Polarization Slot

Preview

Download Datasheet

View All

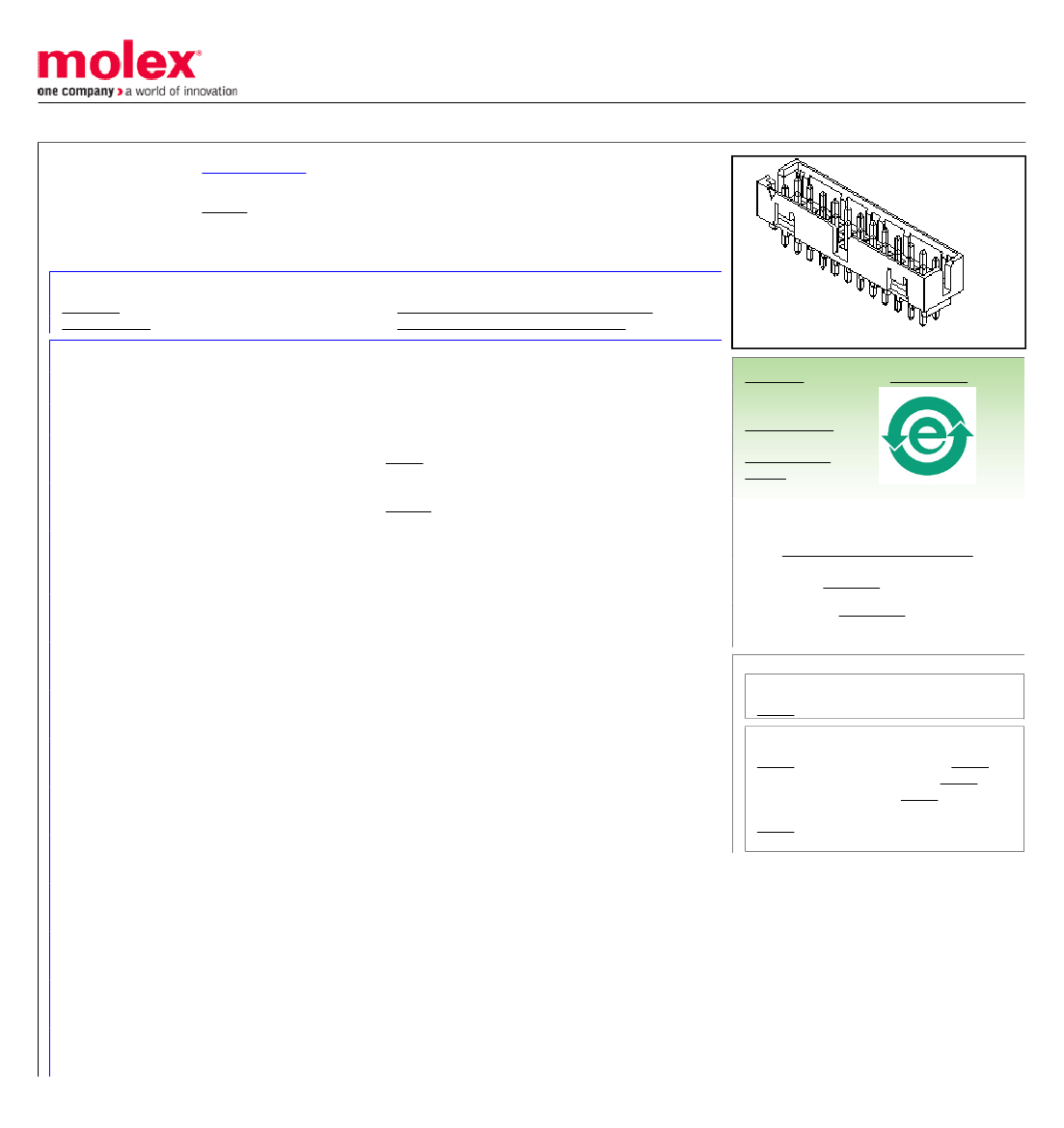

This document was generated on 05/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878313828

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Vertical, Through Hole, Shrouded, Lead-free,

38 Circuits, 0.38µm (15µ") Gold (Au) Plating, Center Polarization Slot, with Locking

Windows, PCB Locator, Tube

Documents:

3D Model

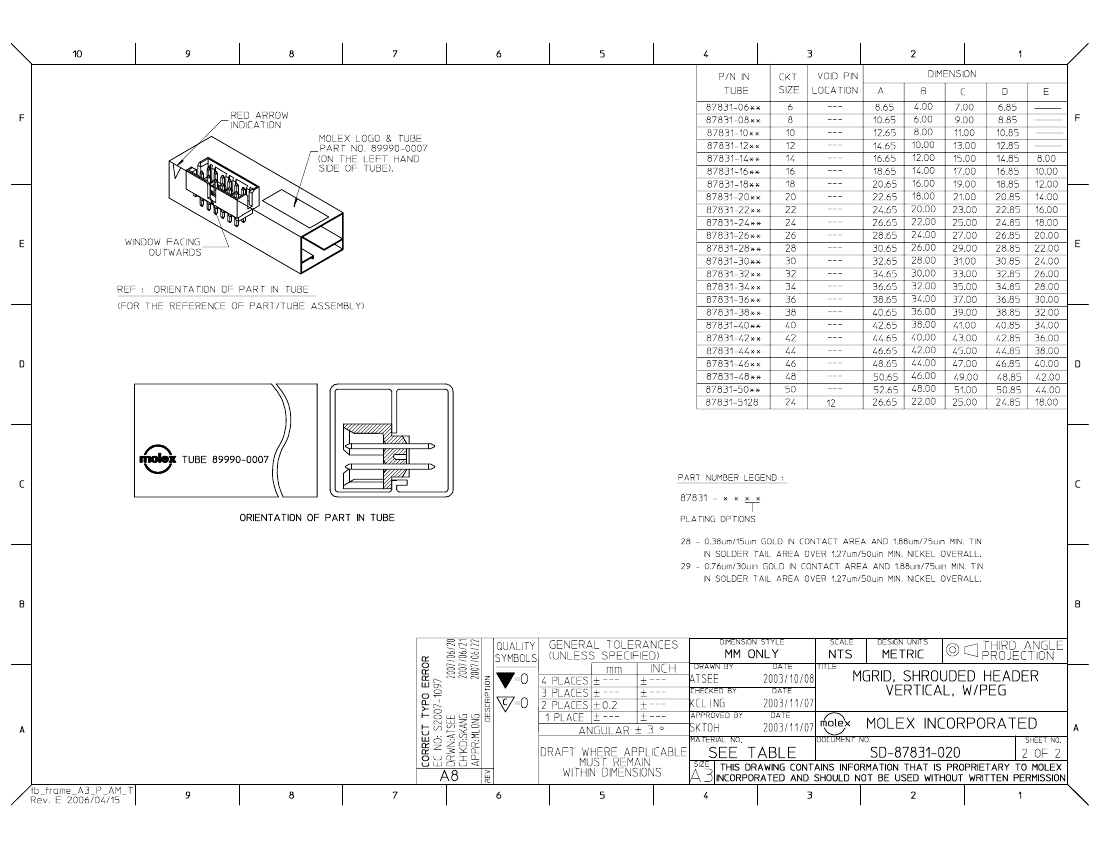

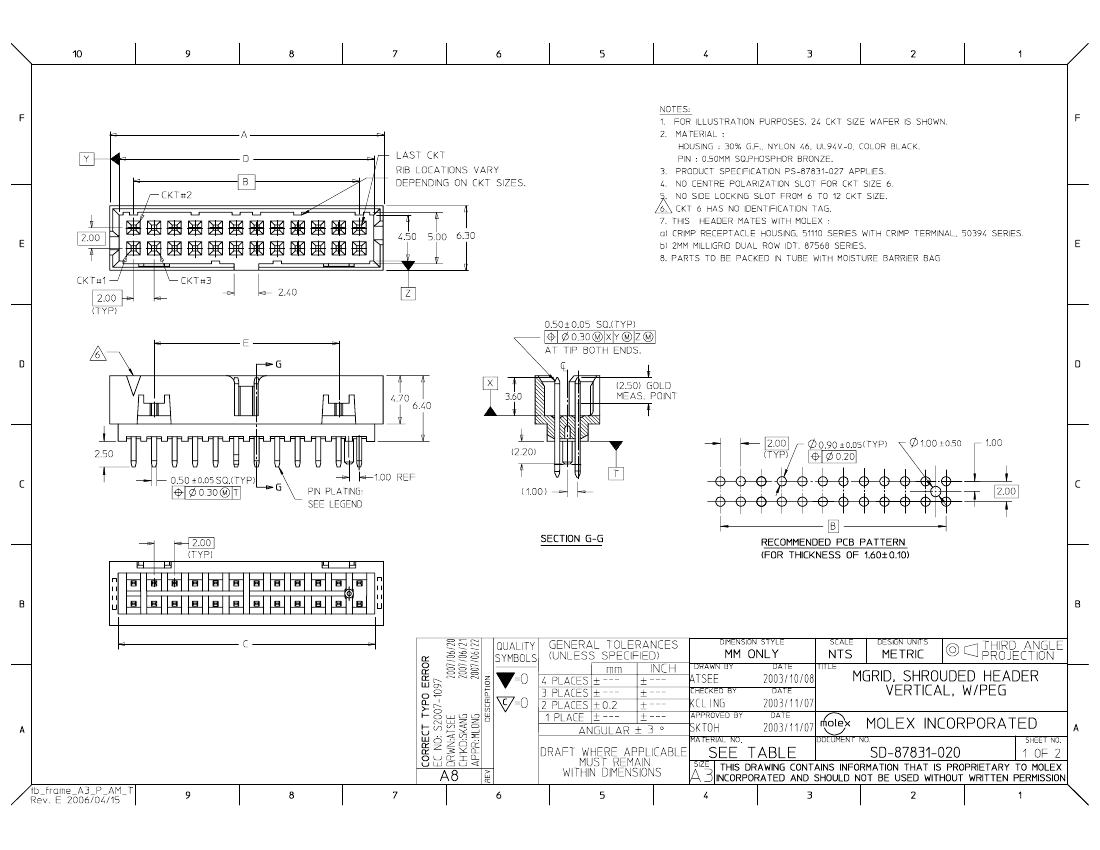

Drawing (PDF)

Product Specification PS-87831-027 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

Agency Certification

CSA

LR19980

E29179

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87831

Wire-to-Board

Contact Molex for application in automotive industry

milligrid

Milli-Grid™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Black

94V-0

None

Yes

Brass, Phosphor Bronze

Gold

Tin

Nylon

Vertical

0.098 In

2.50 mm

Yes

None

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.38

1.88

Side Slots (2)

Search Parts in this Series

87831Series

Mates With

50394 Wire-to-Board Terminals. 51110

Wire-to-Board Crimp Housing. 87568 Wire-

to-Board IDT Housings. 79107 Board-to-

Board Top Entry Through Hole Receptacle.

79108 Board-to-Board FFC/FPC Top Entry

Through Hole Receptacle. L

0878313828 Related Products

	0878313828	87831-3828
Description	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Vertical, Through Hole, Shrouded, Lead-free, 38 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Plating, Center Polarization Slot	2.00mm (.079) Pitch Milli-Gridâ¢ Header, Vertical, Through Hole, Shrouded, Lead-free, 38 Circuits, 0.38Î¼m (15Î¼) Gold (Au) Plating, Center Polarization Slot
