0878333219: Description32 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size141KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

0878333219 Overview

32 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 05/25/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0878333219

Active

milligrid

2.00mm (.079") Pitch Milli-Grid™ Header, Right Angle, Fully Shrouded, Lead-free, 32

Circuits, Gold (Au) Flash Plating, without PCB Locator, without Locking Window, Center

Polarization Slot, Tube

Documents:

3D Model

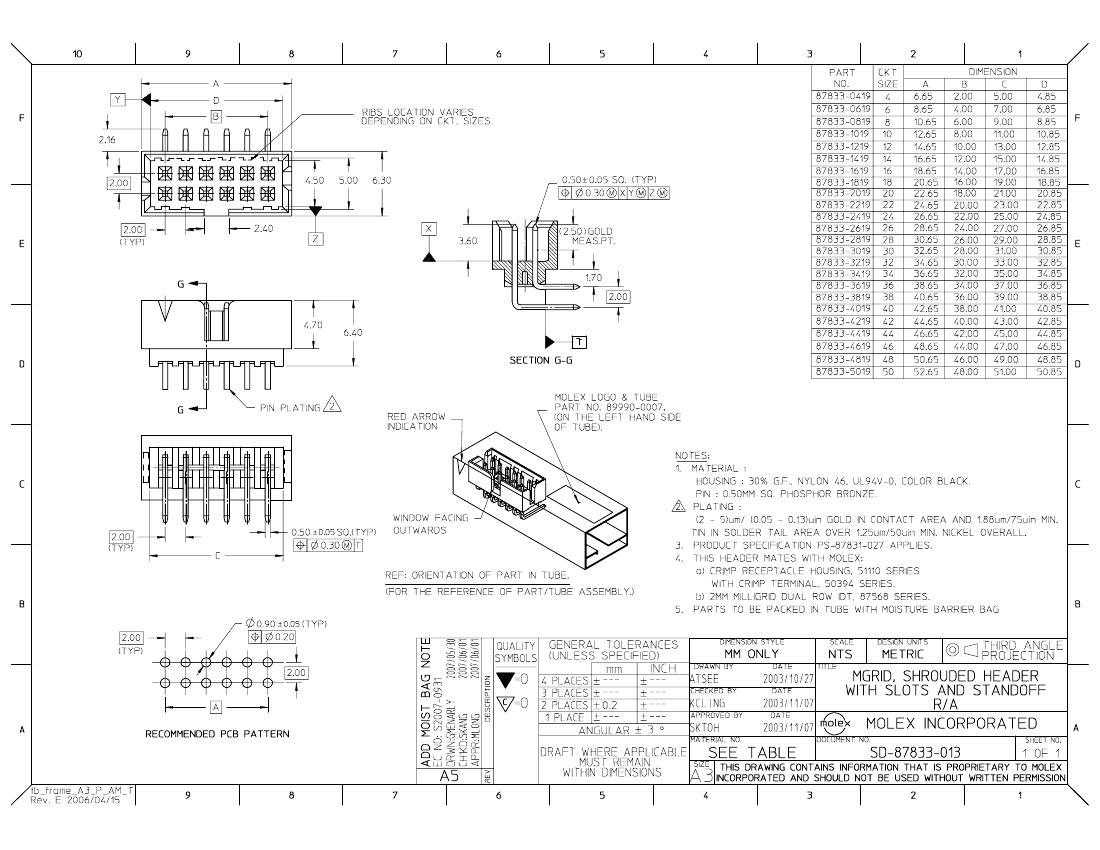

Drawing (PDF)

Product Specification PS-87831-027 (PDF)

RoHS Certificate of Compliance (PDF)

image - Reference only

Series

General

Product Family

Series

Application

Comments

Overview

Product Name

PCB Headers

87833

Wire-to-Board

Contact Molex for application in automotive industry

milligrid

Milli-Grid™

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Black

100

None

Phosphor Bronze

Gold

Tin

Nylon

Right Angle

0.085 In

2.16 mm

None

0.062 In

1.60 mm

Tube

0.079 In

2.00 mm

0.079 In

2.00 mm

0.05

1.88

Side Slots (2)

Fully

Yes

Search Parts in this Series

87833Series

Mates With

50394 Wire-to-Board Terminals. 51110

Wire-to-Board Crimp Housing. 87568 Wire-

to-Board IDT Housings. 79107 Board-to-

Board Top Entry Through Hole Receptacle.

79108 Board-to-Board FFC/FPC Top Entry

Through Hole Receptacle. L
