CERAMIC CAPACITORS
Soft Termination MLCC for Automotive / Industrial Applications
TMJ316BB7474MLHT
Features
Item Summary
25V, X7R, 0.47μF, ±20%, 1206
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
1206/3216
25V
0.47μF
±20%
100 MΩ・μF min.
3.5%MAX
X7R/-
-55 to +125℃/-
±15/-%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
3.2mm ±0.30
1.6mm ±0.30
1.6mm ±0.30
0.6mm +0.4/-0.3
2015.02.23
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

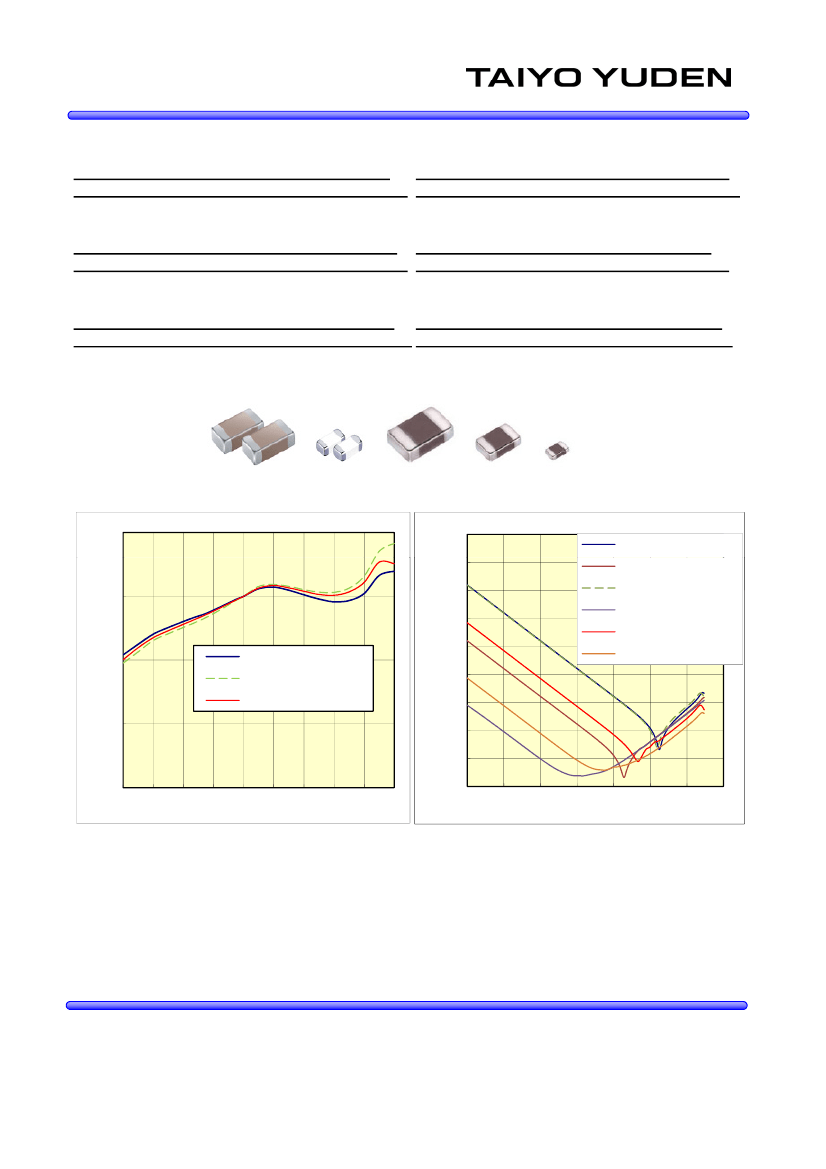

Multi Layer Ceramic Capacitor
○QMJ212KB7102K(M)DHT
-Electrical Characteristics Data-
Mar-2014
RoHS compliance product
○HMJ212BB7104K(M)GHT
250V 2012 X7R 1000pF +/-10(20)% t=1.0mmMAX
100V 2012 X7R 0.1uF +/-10(20)% t=1.45mmMAX
250V 0805 X7R 1000pF +/-10(20)% t=0.039inchMAX 100V 0805 X7R 0.1uF +/-10(20)% t=0.057inchMAX
○SMJ316B7102K(M)FHT
○LMJ316BB7226K(M)LHT
630V 3216 X7R 1000pF +/-10(20)% t=1.25mmMAX 10V 3216 X7R 22uF +/-10(20)% t=1.9mmMAX
630V 1206 X7R 1000pF +/-10(20)% t=0.049inchMAX 10V 1206 X7R 22uF +/-10(20)% t=0.075inchMAX
○SMJ325B7223K(M)NHT
○HMJ325AB7225K(M)MHT
630V 3225 X7R 0.022uF +/-10(20)% t=2.1mmMAX
100V 3225 X7R 2.2uF +/-10(20)% t=2.8mmMAX
630V 1210 X7R 0.022uF +/-10(20)% t=0.083inchMAX 100V 1210 X7R 2.2uF +/-10(20)% t=0.11inchMAX
10
Capacitance Temp.
③
10000000
1000000
100000
10000
Impedance Freq.
①QMJ212KB7102_DHT
②HMJ212BB7104_GHT
0
①
③
⑤
②
⑥
④
③SMJ316B7102_FHT
③SMJ316B7102
FHT
④LMJ316BB7226_LHT
⑤SMJ325B7223_NHT
⑥HMJ325AB7225_MHT
dC/C[%] .
①
-10
Z[OHM] .
1000
100
10
1
0.1
①HMJ212BB7104_GHT
②
②SMJ316B7102_FHT
③SMJ325B7223_NHT
-20
-30
-55
-35
-15
5
25
45
65
85
105
125
0.01
0.001
0.01
0.1
1
10
100
1000
10000
Temperature[degreeC]
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
