ECS-119.99-20-46XAEL datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-119.99-20-46XAEL

ECS-119.99-20-46XAEL: DescriptionParallel - Fundamental Quartz Crystal, 11.999MHz Nom,; CategoryPassive components Crystal/resonator; File Size571KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-119.99-20-46XAEL Overview

Parallel - Fundamental Quartz Crystal, 11.999MHz Nom,

ECS-119.99-20-46XAEL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECS
Reach Compliance Code	compli
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	25 ppm
load capacitance	20 pF
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	11.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L6.8XB4.0XH1.8 (mm)/L0.268XB0.157XH0.071 (inch)
Series resistance	200 Ω
surface mount	NO

Preview

Download Datasheet

View All

Cost effective

Low profile

Pb Free/RoHS Compliant

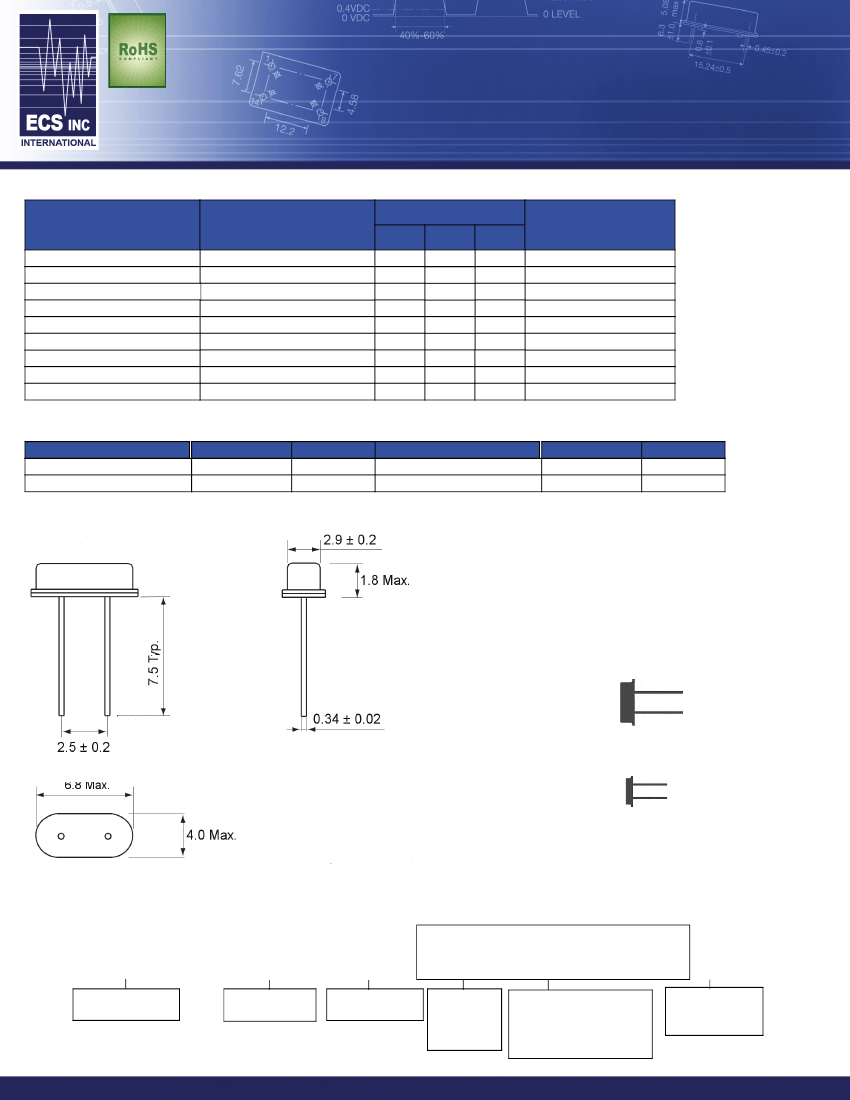

HC-46X

Quartz Crystal

The HC-46X is the miniature low profile resistance weld type

Thru Hole quartz crystal. Reduces footprint of HC-49USX

by 50%.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

ref @ 25°C

Shunt Capacitance

Load Capacitance (CL)

Drive Level

Operating Temperature

Storage Temperature

Aging (First Year)

CONDITIONS

HC-46X

MIN

6.000

TYP

MAX

40.000

± 30

± 50

Series

100

+70

+85

±5

UNITS

MHz

ppm

µW

°C

ppm

at +25°C

Standard -10 to +70°C

Specify in P/N

Standard

@ +25°C ±3°C

-10

-40

EQUIVALENT SERIES RESISTANCE/MODE OF OSCILLATION

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

FREQUENCY RANGE

(MHz)

MODE OF OSC MAX ESR

Ω

6.000 ~ 11.999

Fundamental

200

16.000 ~ 29.999

Fundamental

12.000 ~ 15.999

Fundamental

30.000 ~ 40.000

Fundamental

PACKAGE DIMENSIONS (mm)

Actual Size

HC-49USX

HC-46X

Figure 2) Size Comparison

Figure 1) Side, Bottom and End views

PART NUMBERING GUIDE: Example ECS-200-20-46X

ECS - Frequency Abbreviation - Load Capacitance - Package

200 = 20.000 MHz

See P/N Guide

20 =20 pF

S=Series

46X = HC-46X

Tolerance

A= ±25 ppm

J= ±20 ppm

R= ±15 ppm

C= ±10 ppm

Custom Options

Stability

Temp Range

L= -10 ~ +70°C

D= ±100 ppm W= ±15 ppm

M= -20 ~ +70°C

E= ±50 ppm

K= ±10 ppm

N= -40 ~ +85°C

G= ±30 ppm

H= ±25 ppm

*Consult Factory for available stability

T= ±20 ppm

options over extended temp range.

www.ecsxtal.com

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787

Fax: 913.782.6991
