L7581BAE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> L7581BAE

L7581BAE: DescriptionTelecom Circuit, 1-Func, PDSO16, PLASTIC, SOG-16; CategoryWireless rf/communication Telecom circuit; File Size36KB，2 Pages; ManufacturerLegerity

Download Datasheet Parametric View All

L7581BAE Overview

Telecom Circuit, 1-Func, PDSO16, PLASTIC, SOG-16

L7581BAE Parametric

Parameter Name	Attribute value
Maker	Legerity
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknow
JESD-30 code	R-PDSO-G16
length	10.3 mm
Number of functions	1
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.67 mm
Nominal supply voltage	5 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

Preview

Download Datasheet

View All

Product Brief

June 2000

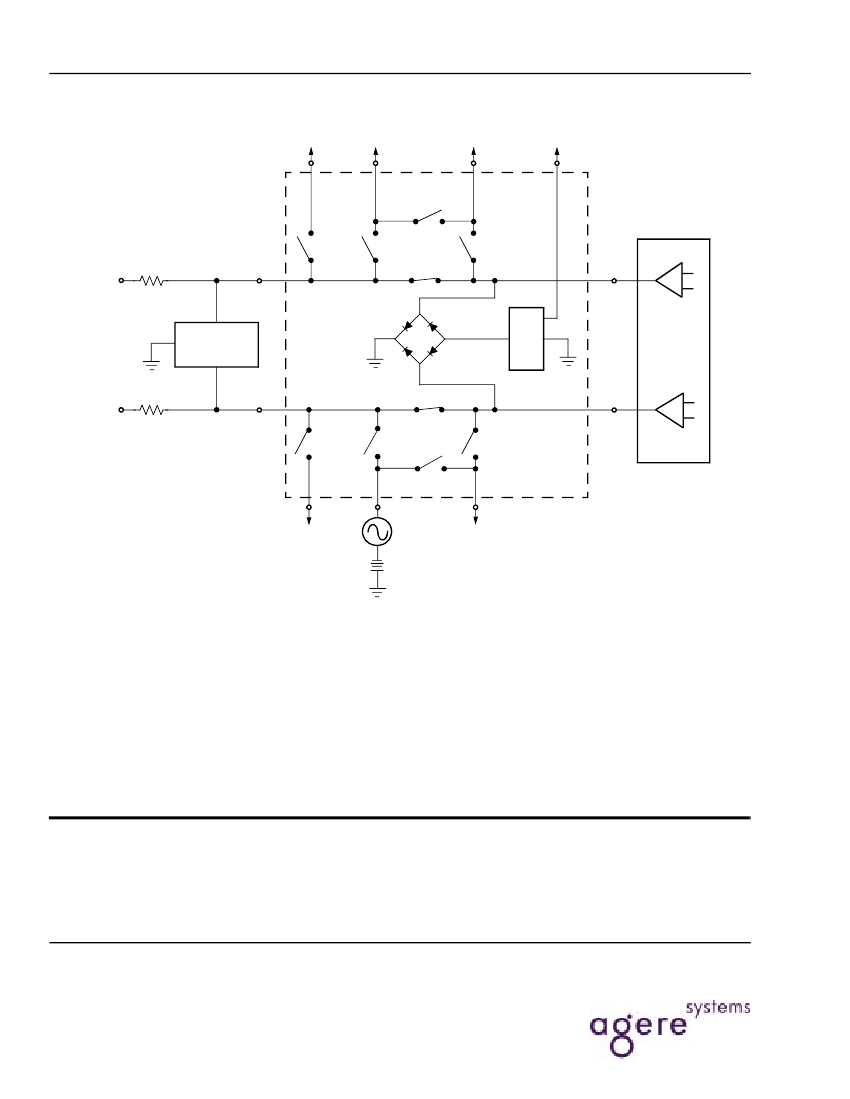

L7581/2/3 and L8581

Ringing, Tip/Ring, and Line Card Access Switches

Features

Description

The L7581/8581 provides solid-state access for

power ringing applications. The L7582 provides

access for power ringing and line test. The L7583

line card access switch (LCAS) provides power ring-

ing, line test, and self-test access.

Incorporated into the L758xA is a diode bridge/SCR

clamping circuit, current-limiting circuitry, and thermal

shutdown mechanism. The L758xB provides a diode

bridge clamping circuit, current-limiting circuitry, and

thermal shutdown mechanism.

A single external protection device is required. Agere

Systems Inc. has available characterized protection

devices designed to work with Agere LCAS devices

(contact a Agere account representative for informa-

tion about these products).

Agere LCAS devices require a 5 V supply to operate.

Additionally, a battery monitor circuit is included,

which forces an all-off state if the battery is lost.

The L7581 device is packaged in a 16-pin, plastic

DIP package (L7581AC/BC) and a 16-pin, plastic

SOG package (L7581AAE/BAE). These devices are

pin compatible with the L7541 device.

The L7582 device is packaged in a 16-pin, plastic

DIP package (L7582AC/BC) and a 16-pin,

plastic SOG package (L7582AAE/BAE). The

L7582AAE/BAE are pin compatible with the

L7542AAE/BAE.

The L7583A/B/C/D device is packaged in a 24-pin,

plastic DIP (L7583AF/BF/CF/DF) and a 28-pin,

plastic SOG package (L7583AAJ/BAJ/CAJ/DAJ).

Small size/surface-mount packaging

Monolithic IC reliability

Low impulse noise

Make-before-break, break-before-make operation

Clean, bounce-free switching

Low, matched ON resistance

Built-in current limiting, thermal shutdown, and

SLIC protection

5 V only operation, very low power consumption

Battery monitor, all OFF state upon loss of battery

No EMI

Latched logic level inputs, no drive circuitry

Only one external protector required

Applications

Central office

DLC

PBX

DAML

HFC/FITL

Recommended Resources

Minimum system interface circuit based on AT89C52 microcontroller

LR371M (video recorder) infrared remote control transmitter circuit

CH208 color channel indication circuit

Motor automatic switching starting circuit

Electronic messenger circuit diagram

Gain programmable amplifier circuit
