142-0004-226: DescriptionRF Connector, Board Mount, Solder Terminal; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerJohnson Components; Environmental Compliance

Download Datasheet Parametric View All

142-0004-226 Overview

RF Connector, Board Mount, Solder Terminal

142-0004-226 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Johnson Components
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 316 DS; RG 188 DS
Connector type	RF CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	142-0004
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

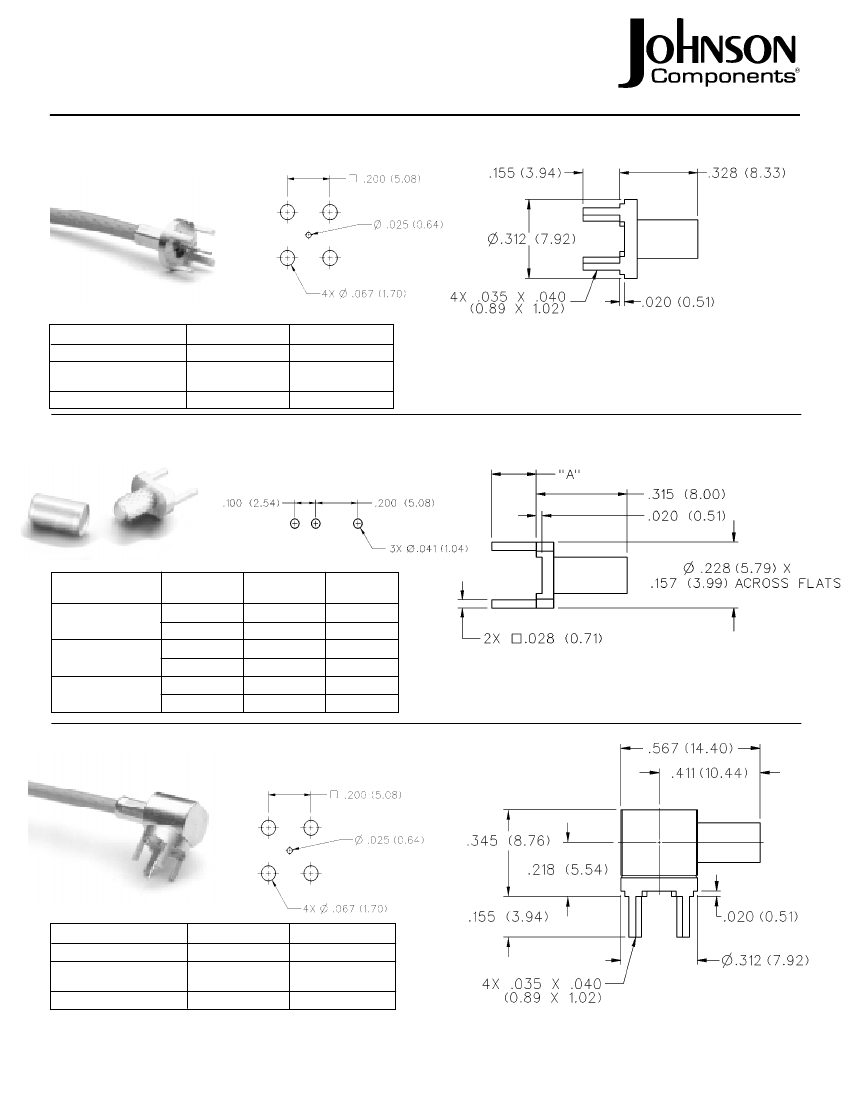

Shielded Cable Termination

PC Mount

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

Flexible Cable - Straight Crimp Type

CABLE TYPE

RG-178/U, 196

RG-161/U, 174, 179, 187,

188, 316

RG-316 DS, RG-188 DS

GOLD PLATED

142-0002-201

142-0003-201

142-0004-201

NICKEL PLATED

142-0002-206

142-0003-206

142-0004-206

Flexible Cable - Straight Crimp Type

CABLE

TYPE

RG-178/U,

196

RG-316/U, 188,

174, 161, 179, 187

RG-316 DS,

188 DS

GOLD

PLATED

142-0002-211

142-0002-221

142-0003-231

142-0003-241

142-0004-211

142-0004-221

NICKEL

PLATED

142-0002-216

142-0002-226

142-0003-236

142-0003-246

142-0004-216

142-0004-226

"A"

.155 (3.94)

.110 (2.79)

.155 (3.94)

.110 (2.79)

.155 (3.94)

.110 (2.79)

Flexible Cable - Right Angle Crimp Type

CABLE TYPE

RG-178/U, 196

RG-161/U, 174, 179, 187,

188, 316

RG- 316 DS, 188 DS

GOLD PLATED

142-0002-301

142-0003-301

142-0004-301

NICKEL PLATED

142-0002-306

142-0003-306

142-0004-306

Mounting hole layout figure 3 page 174.

2

Johnson Components

®

• P.O. Box 1732 • Waseca, MN 56093-0832 • 1-800-247-8256 • Fax: 507-835-6287 • www.johnsoncomp.com
