142-0407-006 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 142-0407-006

142-0407-006: DescriptionRF SMA Connector, Male, Cable Mount, Crimp Terminal, Receptacle; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerJohnson Components; Environmental Compliance

Download Datasheet Parametric View All

142-0407-006 Overview

RF SMA Connector, Male, Cable Mount, Crimp Terminal, Receptacle

142-0407-006 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Johnson Components
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG-58/U; 141; 303, INSERTION LOSS MAX AT 6 GHZ, CAPTIVE CONTACT
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.21 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	12.4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.39

Preview

Download Datasheet

View All

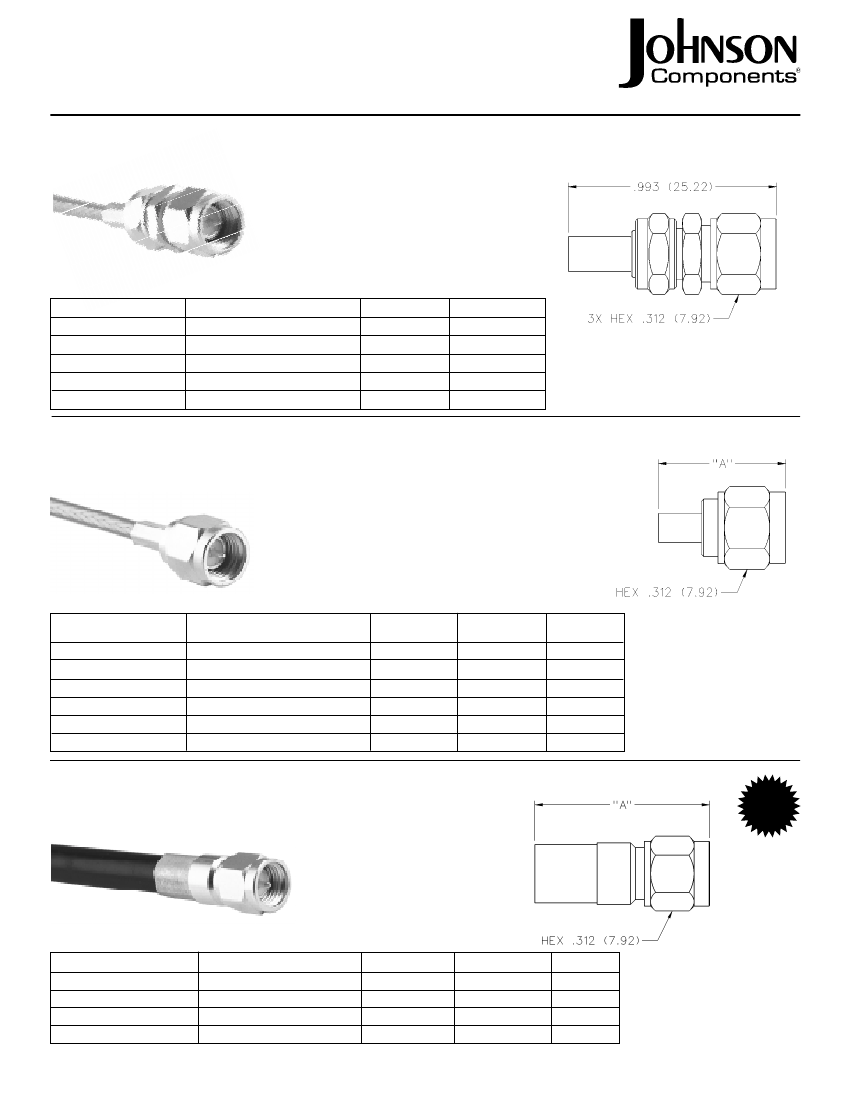

SMA - 50 Ohm Connectors

For Flexible Cable

INCHES (MILLIMETERS)

CUSTOMER DRAWINGS AVAILABLE UPON REQUEST

Straight Crimp Type Plug - Captivated Contact

CABLE TYPE

RG-178/U, 196

RG-161/U, 174,188, 316

RG-188 DS, RG-316 DS

RG-58/U, 141, 303

RG-55/U, 142, 223, 400

VSWR & FREQ. RANGE

1.20 + .025 f (GHz) 0-12.4 GHz

1.15 + .02 f (GHz) 0-12.4 GHz

1.15 + .01 f (GHz) 0-12.4 GHz

GOLD PLATED NICKEL PLATED

142-0402-001

142-0403-001

142-0404-001

142-0407-001

142-0408-001

142-0402-006

142-0403-006

142-0404-006

142-0407-006

142-0408-006

Straight Crimp Type Plug (3-piece) -

Solder or Crimp Captivated Contact

CABLE

TYPE

RG-178/U, 196

RG-161/U, 174,188, 316

RG-188 DS, RG-316 DS

RG-58/U, 141, 303

RG-55/U, 142, 223, 400

RG-179/U, 187

VSWR &

FREQ. RANGE

1.20 + .025 f (GHz) 0-12.4 GHz

1.15 + .02 f (GHz) 0-12.4 GHz

1.15 + .01 f (GHz) 0-12.4 GHz

N/A

GOLD

PLATED

142-0402-011

142-0403-011

142-0404-011

142-0407-011

142-0408-011

142-0433-011

NICKEL

PLATED

142-0402-016

142-0403-016

142-0404-016

142-0407-016

142-0408-016

142-0433-016

“A”

.591 (15.01)

.706 (17.93)

Straight Crimp Type Plug (3-piece) - Captivated Contact

Low Loss Cable

NEW

CABLE TYPE

VSWR & FREQ. RANGE

0-12.4 GHz

GOLD PLATED

142-0403-011

142-0407-011

142-0439-001

142-0435-001

NICKEL PLATED

142-0403-016

142-0407-016

142-0439-006

142-0435-006

“A”

.706 (17.93)

.844 (21.44)

LMR-100, HPF-100, RF-100 1.15 + .02f (GHz)

LMR-195, HPF-195, RF-195 1.15 + .01f (GHz) 0-12.4 GHz

LMR-200, HPF-200, RF-200 1.10 + .03f (GHz) 0-12.4 GHz

LMR-240, HPF-240, RF-240 1.10 + .03f (GHz)

0-12.4 GHz

Johnson Components

• P.O. Box 1732 • Waseca, MN 56093-0832 • 1-800-247-8256 • Fax: 507-835-6287 • www.johnsoncomp.com
