142-5307406

Description
PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, CRIMP/SOLDER, JACK
CategoryThe connector    The connector
File Size74KB,1 Pages
ManufacturerJohnson Components
Environmental Compliance
Download Datasheet Parametric View All

142-5307406 Overview

PANEL MOUNT, CABLE TERMINATED, FEMALE, SMA CONNECTOR, CRIMP/SOLDER, JACK

142-5307406 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerJohnson Components
Reach Compliance Codeunknow
Other featuresAPPLICABLE CABLES: RG 58/U; RG 141; RG 303
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact to complete cooperationNICKEL
Contact completed and terminatedNICKEL
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.21 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial numberSMA
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency12.4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCRIMP/SOLDER
voltage standing wave ratio1.27

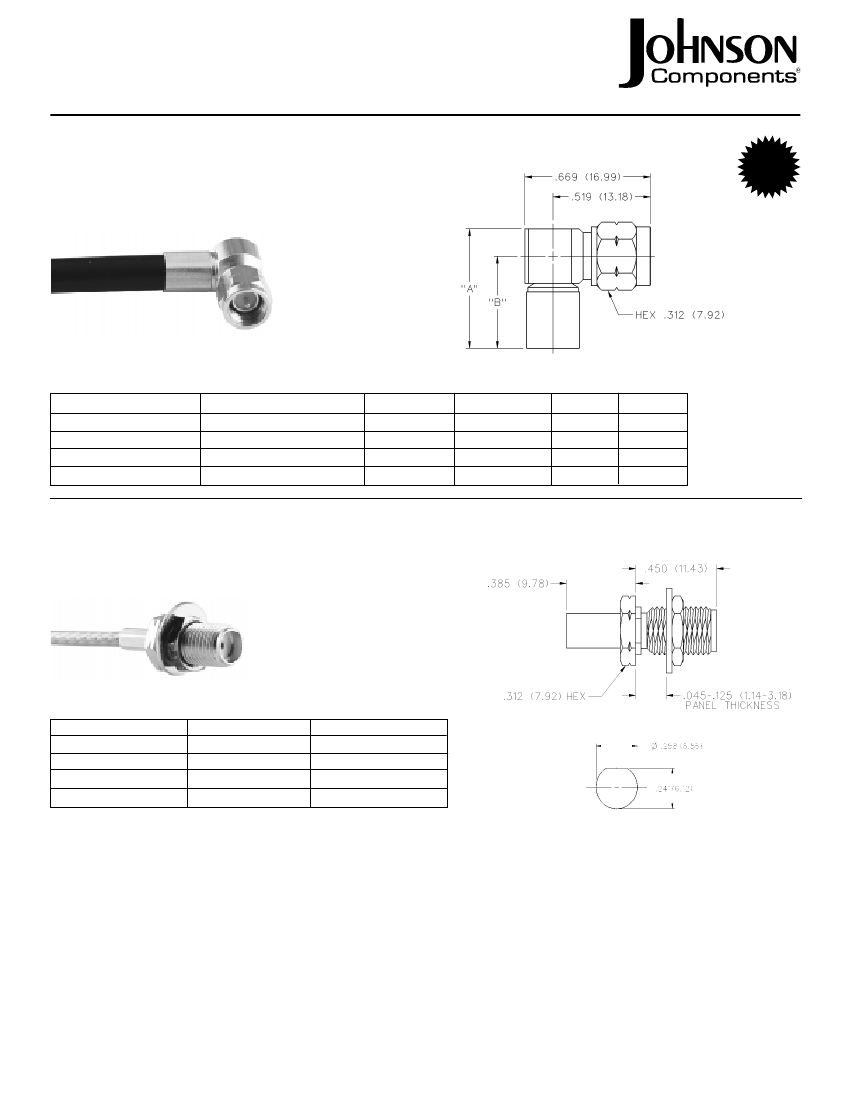

SMA Reverse Thread - 50 Ohm
For Flexible Cable
INCHES (MILLIMETERS)
CUSTOMER DRAWINGS AVAILABLE UPON REQUEST
Right Angle Crimp Type Plug - Captivated Contact
Low Loss Cable
NEW
CABLE TYPE
VSWR & FREQ. RANGE
0-12.4 GHz
GOLD PLATED NICKEL PLATED
142-5403-101
142-5407-101
142-5439-101
142-5435-101
142-5403-106
142-5407-106
142-5439-106
142-5435-106
“A”
“B”
LMR-100, HPF-100, RF-100 1.15 + .03f (GHz)
.611 (15.52) .470 (11.94)
.611 (15.52) .470 (11.94)
.611 (15.52) .470 (11.94)
.635 (16.13) .490 (12.45)
LMR-195, HPF-195, RF-195 1.15 + .02f (GHz) 0-12.4 GHz
LMR-200, HPF-200, RF-200 1.10 + .06f (GHz) 0-12.4 GHz
LMR-240, HPF-240, RF-240 1.10 + .06f (GHz)
0-12.4 GHz
Straight Crimp Type Bulkhead Jack - Solder or Crimp
Captivated Contact
CABLE TYPE
RG 316/U, 188, 174, 161
RG 316 DS, 188DS
RG 58/U, 141, 303
RG 142/U, 55, 223, 400
GOLD PLATED
142-5303-401
142-5304-401
142-5307-401
142-5308-401
NICKEL PLATED
142-5303-406
142-5304-406
142-5307-406
142-5308-406
4
Johnson Components
®
• P.O. Box 1732 • Waseca, MN 56093-0832 • 1-800-247-8256 • Fax: 507-835-6287 • www.johnsoncomp.com
