30-10-2513-10 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 30-10-2513-10

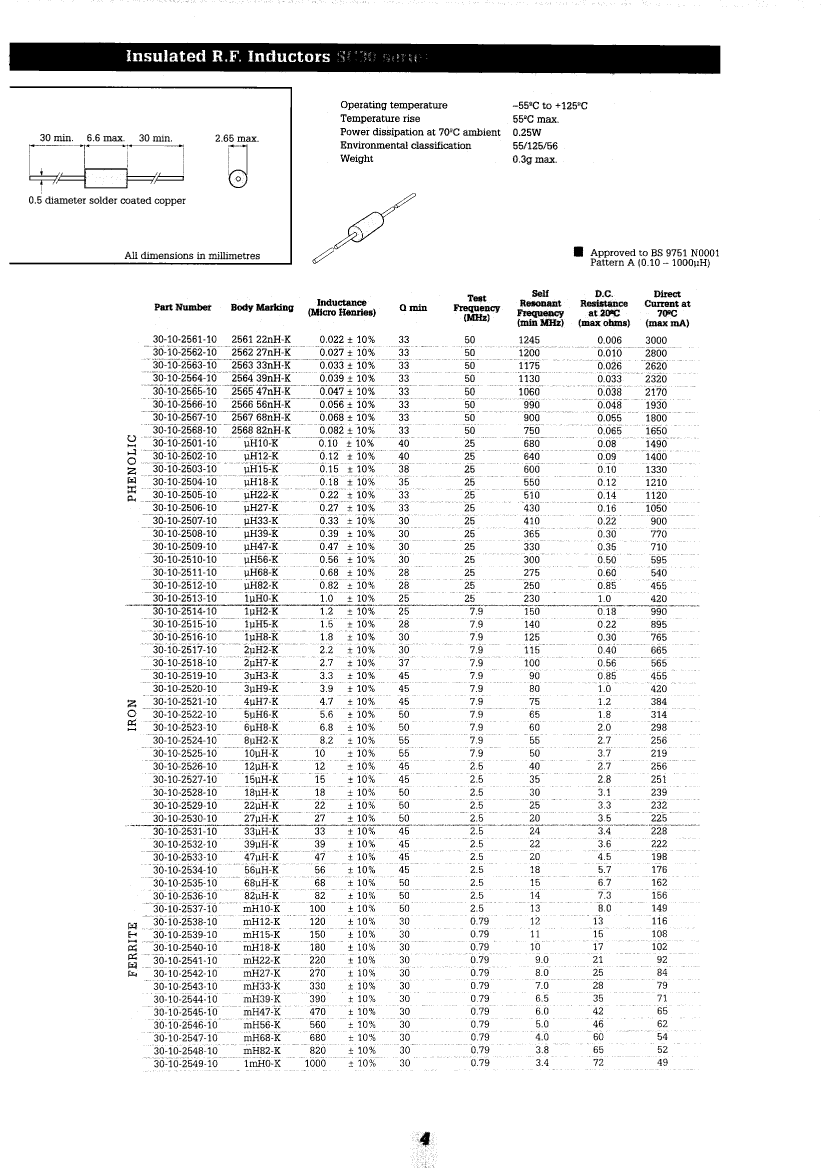

30-10-2513-10: DescriptionGeneral Purpose Inductor, 1uH, 10%, 1 Element, Phenolic-Core; CategoryPassive components inductor; File Size114KB，1 Pages; ManufacturerSigma Products Ltd

Download Datasheet Parametric Compare View All

30-10-2513-10 Overview

General Purpose Inductor, 1uH, 10%, 1 Element, Phenolic-Core

30-10-2513-10 Parametric

Parameter Name	Attribute value
Maker	Sigma Products Ltd
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Tubul
core material	PHENOLIC
DC Resistance	1 Ω
Nominal inductance(L)	1 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	0.5 mm
Lead length	30 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	2.65 mm
Package length	6.6 mm
Package form	Axial
Minimum quality factor (at nominal inductance)	25
Maximum rated current	0.42 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	25 MHz
Tolerance	10%

Preview

Download Datasheet

View All

30-10-2513-10 Related Products

	30-10-2513-10	30-10-2506-10	30-10-2511-10	30-10-2507-10	30-10-2514-10	30-10-2565-10	30-10-2566-10	30-10-2567-10	30-10-2530-10	30-10-2531-10
Description	General Purpose Inductor, 1uH, 10%, 1 Element, Phenolic-Core	General Purpose Inductor, 0.27uH, 10%, 1 Element, Phenolic-Core	General Purpose Inductor, 0.68uH, 10%, 1 Element, Phenolic-Core	General Purpose Inductor, 0.33uH, 10%, 1 Element, Phenolic-Core	General Purpose Inductor, 1.2uH, 10%, 1 Element, Iron-Core	General Purpose Inductor, 0.047uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 0.056uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 0.068uH, 10%, 1 Element, Ferrite-Core	General Purpose Inductor, 27uH, 10%, 1 Element, Iron-Core	General Purpose Inductor, 33uH, 10%, 1 Element, Ferrite-Core
Maker	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Tubul	Tubul	Tubul	Tubul	Tubul	Tubul	Tubul	Tubul	Tubul	Tubular
core material	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	IRON	FERRITE	FERRITE	FERRITE	IRON	FERRITE
DC Resistance	1 Ω	0.16 Ω	0.6 Ω	0.22 Ω	0.18 Ω	0.038 Ω	0.048 Ω	0.055 Ω	3.5 Ω	3.4 Ω
Nominal inductance(L)	1 µH	0.27 µH	0.68 µH	0.33 µH	1.2 µH	0.047 µH	0.056 µH	0.068 µH	27 µH	33 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Lead length	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package diameter	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm
Package length	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm	6.6 mm
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Minimum quality factor (at nominal inductance)	25	33	28	30	25	33	33	33	50	45
Maximum rated current	0.42 A	1.05 A	0.54 A	0.9 A	0.99 A	2.17 A	1.93 A	1.8 A	0.225 A	0.228 A
Shape/Size Description	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE	TUBULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	25 MHz	25 MHz	25 MHz	25 MHz	7.9 MHz	50 MHz	50 MHz	50 MHz	2.5 MHz	2.5 MHz
Tolerance	10%	10%	10%	10%	10%	10%	10%	10%	10%	10%
