50-10-3526-10 datasheet, PDF - EEWORLD Datasheet

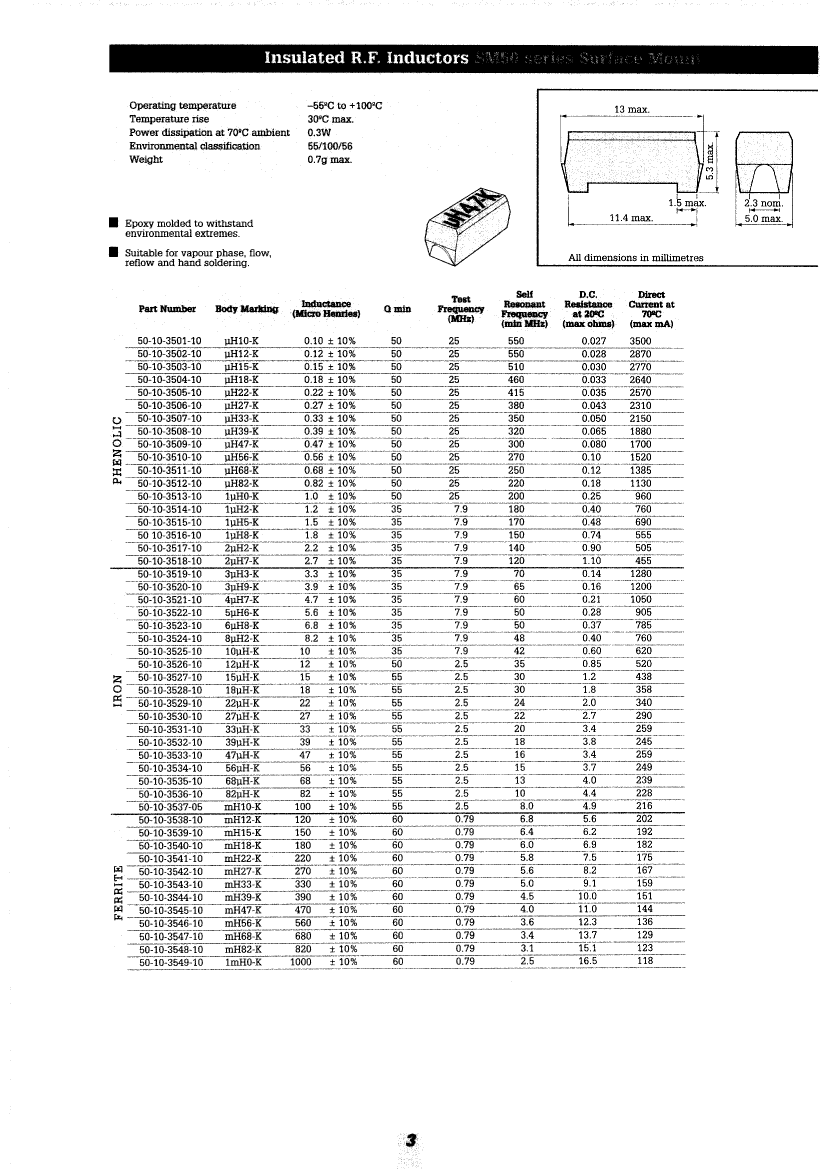

50-10-3526-10: DescriptionGeneral Purpose Inductor, 12uH, 10%, 1 Element, Iron-Core, SMD; CategoryPassive components inductor; File Size153KB，1 Pages; ManufacturerSigma Products Ltd

Download Datasheet Parametric Compare View All

50-10-3526-10 Overview

General Purpose Inductor, 12uH, 10%, 1 Element, Iron-Core, SMD

Parameter Name	Attribute value
Maker	Sigma Products Ltd
Reach Compliance Code	unknow
ECCN code	EAR99
core material	IRON
DC Resistance	0.85 Ω
Nominal inductance(L)	12 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.52 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Test frequency	2.5 MHz
Tolerance	10%

	50-10-3526-10	50-10-3513-10	50-10-3547-10
Description	General Purpose Inductor, 12uH, 10%, 1 Element, Iron-Core, SMD	General Purpose Inductor, 1uH, 10%, 1 Element, Phenolic-Core, SMD	General Purpose Inductor, 680uH, 10%, 1 Element, Ferrite-Core, SMD
Maker	Sigma Products Ltd	Sigma Products Ltd	Sigma Products Ltd
Reach Compliance Code	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
core material	IRON	PHENOLIC	FERRITE
DC Resistance	0.85 Ω	0.25 Ω	13.7 Ω
Nominal inductance(L)	12 µH	1 µH	680 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Minimum quality factor (at nominal inductance)	50	50	60
Maximum rated current	0.52 A	0.96 A	0.129 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO
surface mount	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	J BEND	J BEND	J BEND
Test frequency	2.5 MHz	25 MHz	0.79 MHz
Tolerance	10%	10%	10%
