B72250-L551-K100 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> B72250-L551-K100

B72250-L551-K100: DescriptionRESISTOR, VOLTAGE DEPENDENT, 745V, 1820J, CHASSIS MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size280KB，12 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B72250-L551-K100 Overview

RESISTOR, VOLTAGE DEPENDENT, 745V, 1820J, CHASSIS MOUNT, RADIAL LEADED

B72250-L551-K100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Circuit maximum DC voltage	745 V
Circuit RMS maximum voltage	550 V
Maximum energy absorption capacity	1820 J
JESD-609 code	e3
Manufacturer's serial number	B72250L0551K100
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	1.5 W
Resistor type	VARISTOR
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

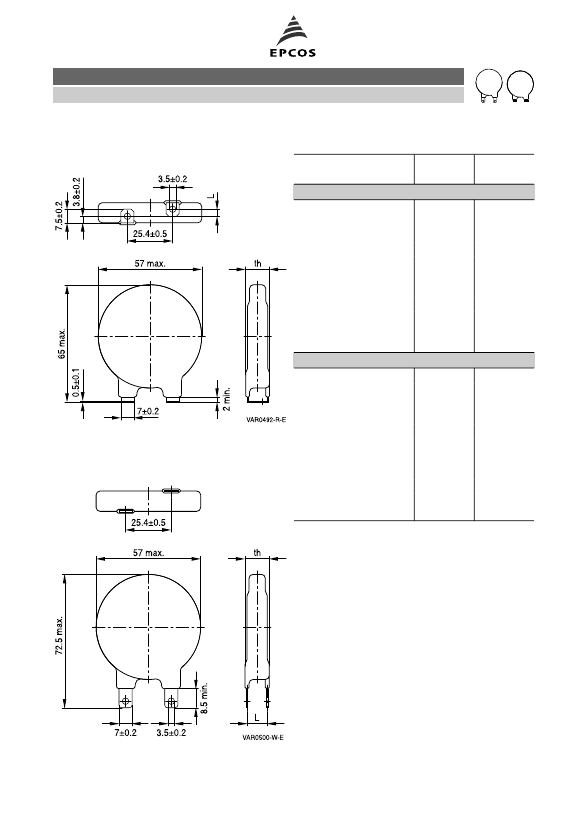

SIOV metal oxide varistors

Strap varistors, HighE, standard, LS50 series

Series/Type:

Date:

B722*

April 2011

information contained therein without EPCOS' prior express consent is prohibited.

B72250-L551-K100 Related Products

	B72250-L551-K100	B72250-L271-K100	B72250-L131-K100	B72250-L151-K100	B72250-L321-K100
Description	RESISTOR, VOLTAGE DEPENDENT, 745V, 1820J, CHASSIS MOUNT, RADIAL LEADED	RESISTOR, VOLTAGE DEPENDENT, 350V, 860J, CHASSIS MOUNT, RADIAL LEADED	RESISTOR, VOLTAGE DEPENDENT, 170V, 490J, CHASSIS MOUNT, RADIAL LEADED	RESISTOR, VOLTAGE DEPENDENT, 200V, 570J, CHASSIS MOUNT, RADIAL LEADED	RESISTOR, VOLTAGE DEPENDENT, 420V, 1000J, CHASSIS MOUNT, RADIAL LEADED
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)
Reach Compliance Code	compli	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Circuit maximum DC voltage	745 V	350 V	170 V	200 V	420 V
Circuit RMS maximum voltage	550 V	275 V	130 V	150 V	320 V
Maximum energy absorption capacity	1820 J	860 J	490 J	570 J	1000 J
JESD-609 code	e3	e3	e3	e3	e3
Manufacturer's serial number	B72250L0551K100	B72250L0271K100	B72250L0131K100	B72250L0151K100	B72250L0321K100
Installation features	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT	CHASSIS MOUNT
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Rated power dissipation(P)	1.5 W	1.5 W	1.5 W	1.5 W	1.5 W
Resistor type	VARISTOR	VARISTOR	VARISTOR	VARISTOR	VARISTOR
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	BINDING POST	BINDING POST	BINDING POST	BINDING POST	BINDING POST
