PT768_15

Description
DIODE
File Size109KB,2 Pages
ManufacturerNI
Websitehttps://www.ni.com
Download Datasheet Compare View All

PT768_15 Overview

DIODE

DIODE

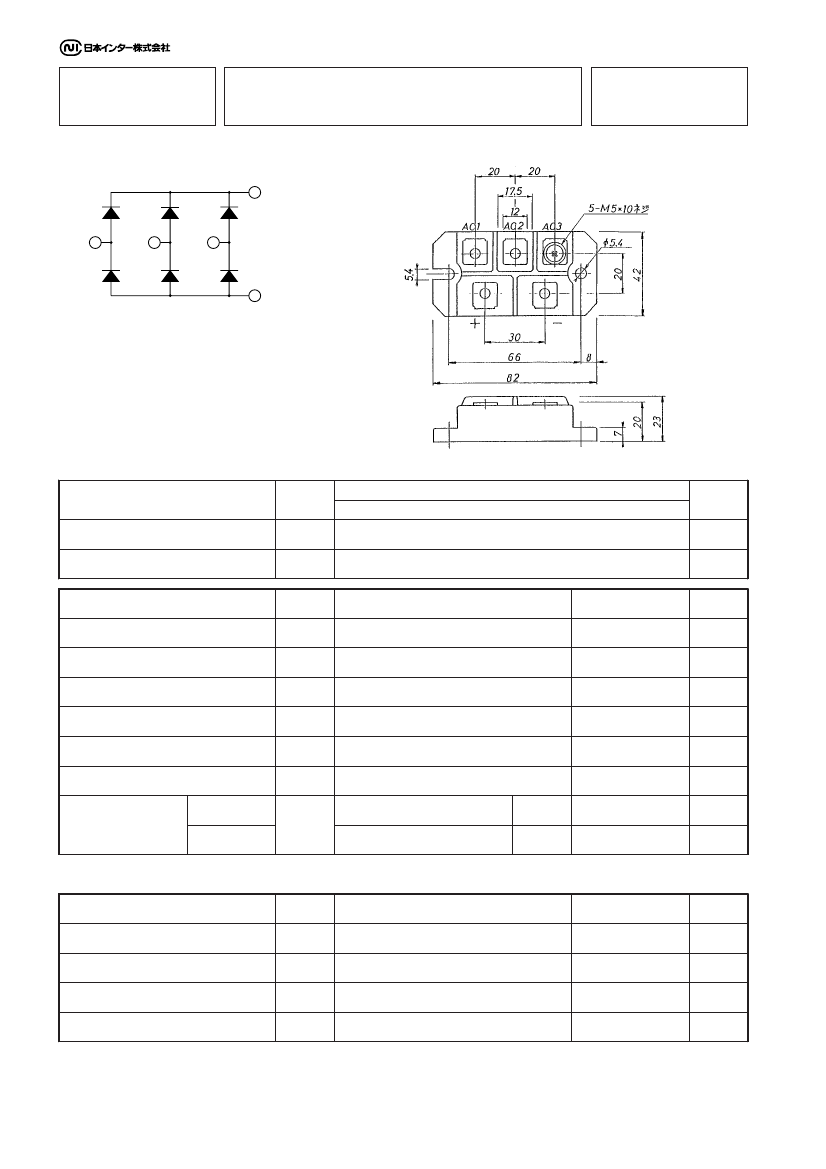

■回路図 CIRCUIT
75A Avg 800 Volts
■外½寸法図 OUTLINE DRAWING
PT768
(単½ Dimension:mm)
AC1
AC2
AC3
■最大定格 Maximum Ratings
項   目
Parameter
くり返しピーク逆電圧
*1
Repetitive Peak Reverse Voltage
非くり返しピーク逆電圧
*1
Non Repetitive Peak Reverse Voltage
項   目
Parameter
平均出力電流
Average Rectified Output Current
サージ順電流
*1
Surge Forward Current
電流二乗時間積
*1
I Squared t
動½接合温度範囲
Operating Junction Temperature Range
保存温度範囲
Storage Temperature Range
絶縁耐圧
Isolation Voltage
ベース部
Mounting
締付トルク
Mounting Torque
主端子部
Terminal
記号
Symbol
V
RRM
V
RSM
記号
Symbol
I
0
(AV)
I
FSM
I
2
t
T
jw
T
stg
V
iso
端子−ベース間,AC1分間
Terminal to Base, AC1min.
サーマルコンパウンド塗布
Greased
条   件
Conditions
三相全波整流
T
c
=112℃
3-Phase Full Wave, Rectified
50Hz正弦半波,1サイクル,非くり返し
Half Sine Wave, 1Pulse, Non-Repetitive
2∼10ms
耐圧クラス Grade
PT768
800
1000
定格値
Max. Rated Value
75
1000
5000
−40∼+150
−40∼+125
2000
M5
M5
2.4∼2.8
2.4∼2.8
単½
Unit
V
V
単½
Unit
A
A
A
2
s
V
N m
N m
F
■電気的特性 Electrical Characteristics
項   目
Parameter
ピーク逆電流
Peak Reverse Current
ピーク順電圧
Peak Forward Voltage
熱抵抗
Thermal Resistance
接触熱抵抗
Thermal Resistance
質量…約180g
Approximate Weight
*1
*1
記号
Symbol
I
RM
V
FM
R
th
(j-c)
R
th
(c-f)
条   件
Conditions
T
j
=150℃,V
RM
=V
RRM
T
j
=25℃,I
FM
=75A
接合部−ケース間(トータル)
Junction to Case, Total
ケース−フィン間
(トータル)サーマルコンパウンド塗布
Case to Fin, Total, Greased
特性値(最大)
Maximum Value
10
1.2
0.24
0.06
単½
Unit
mA
V
℃/W
℃/W
*1:1アーム½りの値 Value Per 1 Arm.
