154152: DescriptionD Subminiature Connector, 37 Contact(s), Female, Surface Mount Terminal,; CategoryThe connector The connector; File Size52KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

154152 Overview

D Subminiature Connector, 37 Contact(s), Female, Surface Mount Terminal,

154152 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compli
Other features	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SURFACE MOUNT
Total number of contacts	37

Preview

Download Datasheet

View All

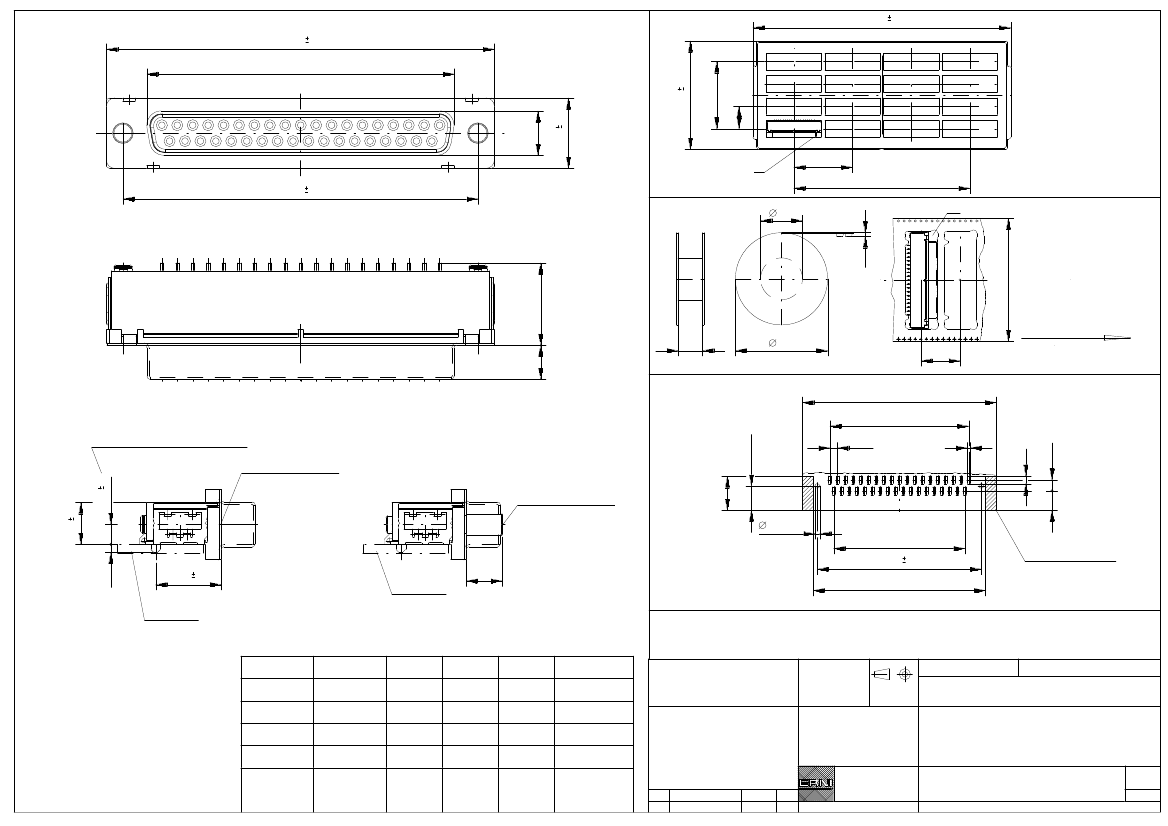

322,6

69.3

0,3

0,25

Verpackt in Tray

Verpackungseinheit 16 St.

55.3

-0,2

0,25

3x28= 84

tray packaging

packaging unit 16 pcs

135,9

-0,2

12,6

8

0,3

28

1

63,5

0,2

73,5

3x73,5= 220,5

150

1

Verpackt in Gurt

13,8

Verpackungseinheit 125 St.

88

14,7

6.3

-0,3

88.5

330

28

tape & reel packaging

packaging unit 125 pcs

Abspulrichtung

reel off direction

Layout

-0,2

69,3

18x2.76= 49,68

Gewinde /

0,1

thread

Bolzen / bolt :

8,7

19

1

12,1

M3 / #4-40 x 5,6

Gewinde /

thread

M3 / #4-40 x 6

2,8

20

17x2.76= 46,92

58,7

0,05

0,1

37

1,7

-0,05

7,5

Leiterplattenkante

PCB edge

1,4

11,7

0,2

6,4

LP / PCB

61,7

LP / PCB

Fehlende Masse und Angaben siehe DIN 41652 /

Sonstige Angaben siehe Fertigungsunterlagen /

Missing information and dimensions according to DIN 41652

Additional indications please see the production documentation

Scale

All Dimensions

in mm

174431

Anschlussbereich verzinnt

terminal area tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

class: 2

ø3,2

#4-40

Consider protection memo from DIN 34

Information:

Tolerances

ISO 2768-m

2:1

154154

154153

154152

154151

Ident-Nr

part-no.

tape & reel

#4-40

M3

ohne

without

Mutter

thread

M3

Ident-Nr

part-no.

tray

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-S 37-SMD-Eurostyle

Bolzen

bolt

Bemerkung

remark

www.ERNI.com

g

Index

12.11.2004

Date

H:00044083.SZA

144850

TMCS

6,95

3,6

3,95

Einbauhöhe /

mounting height

2,76

1

I

154152 Related Products

	154152	154151
Description	D Subminiature Connector, 37 Contact(s), Female, Surface Mount Terminal,	D Subminiature Connector, 37 Contact(s), Female, Surface Mount Terminal,
Maker	ERNI	ERNI
Reach Compliance Code	compli	compli
Other features	STANDARD: DIN 41652	STANDARD: DIN 41652
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Housing size	4/C	4/C
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	37	37
