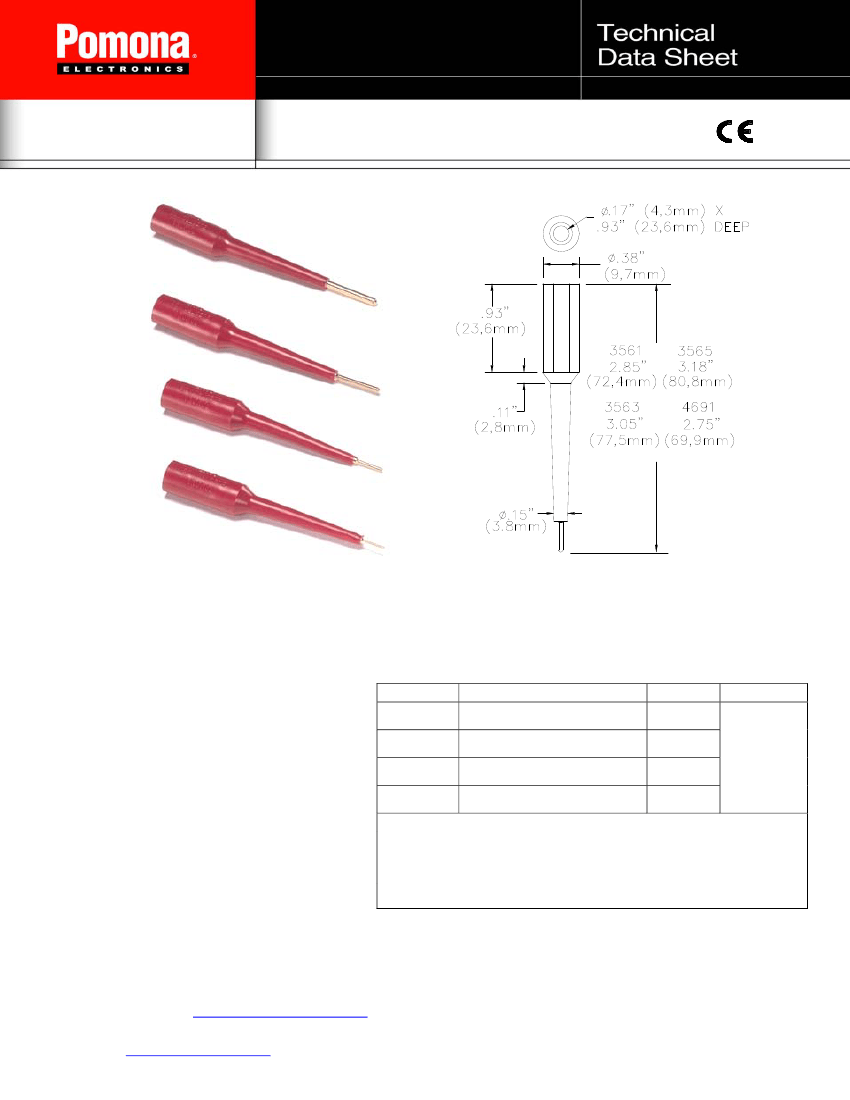

Model 3561, 3563, 3565, 4691
Banana Jack to #12, 16, 20 & 22 Pin
Features
•
•
•
Ideal test adapters for rapid testing of the hard-to-get to sockets of multi-socket connectors.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact damage.
Model
4691
3561
3563
Contact Size
22 AWG .030” (.76mm)
20 AWG .040” (1.02mm)
16 AWG .063” (1.60mm)
Type
Pin
Pin
Pin
3 Amps
Current
Materials
Insulation: Polyvinyl Chloride (PVC)
Banana Jack Body (upper connector)
Material:
Brass.
Finish:
Bright Tin Plated
Pin (lower connector)
Material:
Brass
Finish:
Gold Plated over Nickel Plating
Ordering Information
Model:
3561-*, 3563-*, 3565-*, 4691-*
* = Color: -0 Black, -2 Red
Ordering Example: 3561-2 (red adapter)
12 AWG .093” (2.36mm)
3565
Pin
Voltage Rating:
For
CE Compliance
and for personal safety, do not hold in hand
when voltages exceed 33 Vrms/70 Vdc. Maximum voltage for
hands free use:
2500 Vrms Max.
Operating Temperature: +55ºC (+131ºF) Max.
Test Kit 6481:
contains 18 pieces, one red and one black adapter of each adapter: 3560, 3561, 3562, 3563, 3564, 3565,
4690, 4691 and one set of model 6358 test leads.
For banana jack to test sockets, see models:
3560, 3562, 3564, 4690
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D1093953 Rev. 101
Page 1 of 2

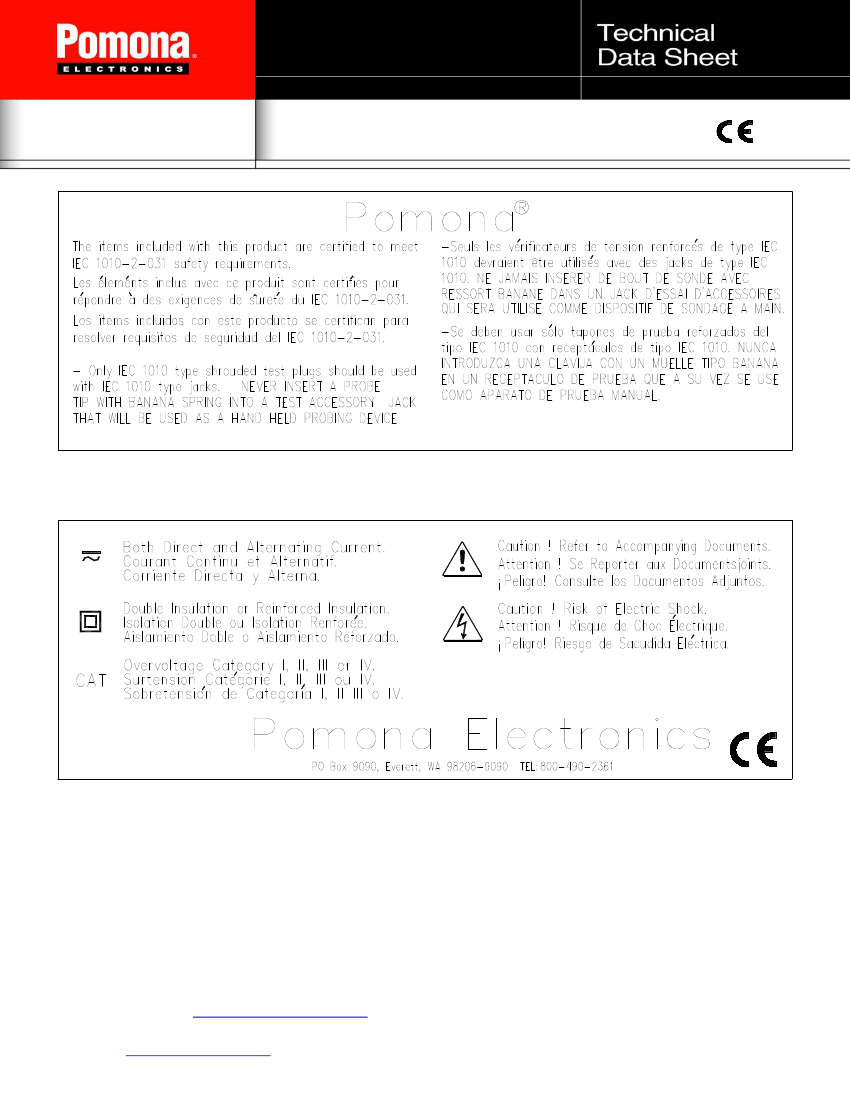

Model 3561, 3563, 3565, 4691
Banana Jack to #12, 16, 20 & 22 Pin
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
USA:
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),
.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks are
the property of their respective companies.
Copyright © 2009
D1093953 Rev. 101
Page 2 of 2
