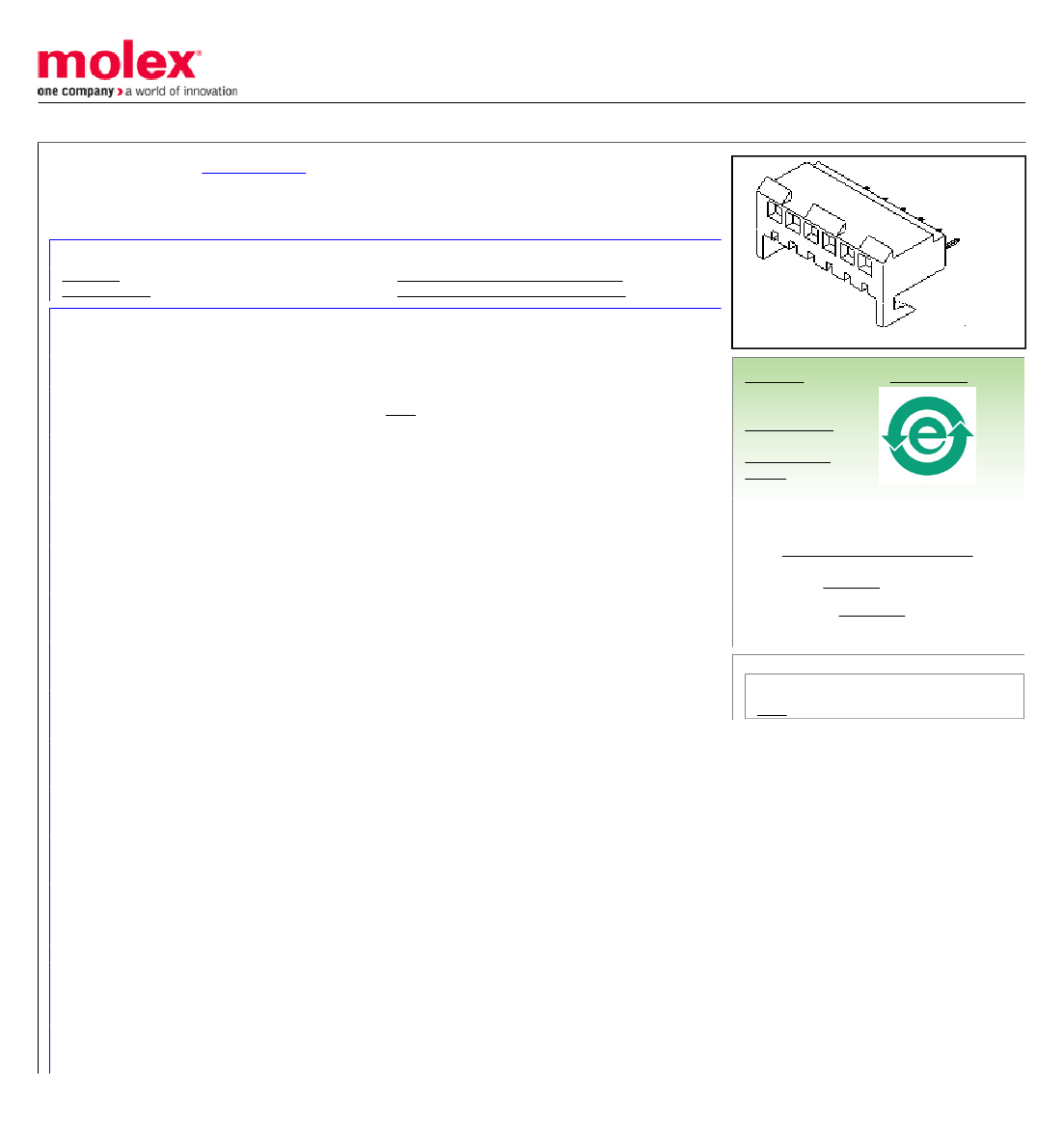

Part Number:
Status:
Description:
0009626025
Active
3.96mm (.156") Pitch KK® PC Board Connector, Top Entry, Nylon Connector, 5.0µm
(200µ") Tin (Sn), 2 Circuits
Documents:
3D Model

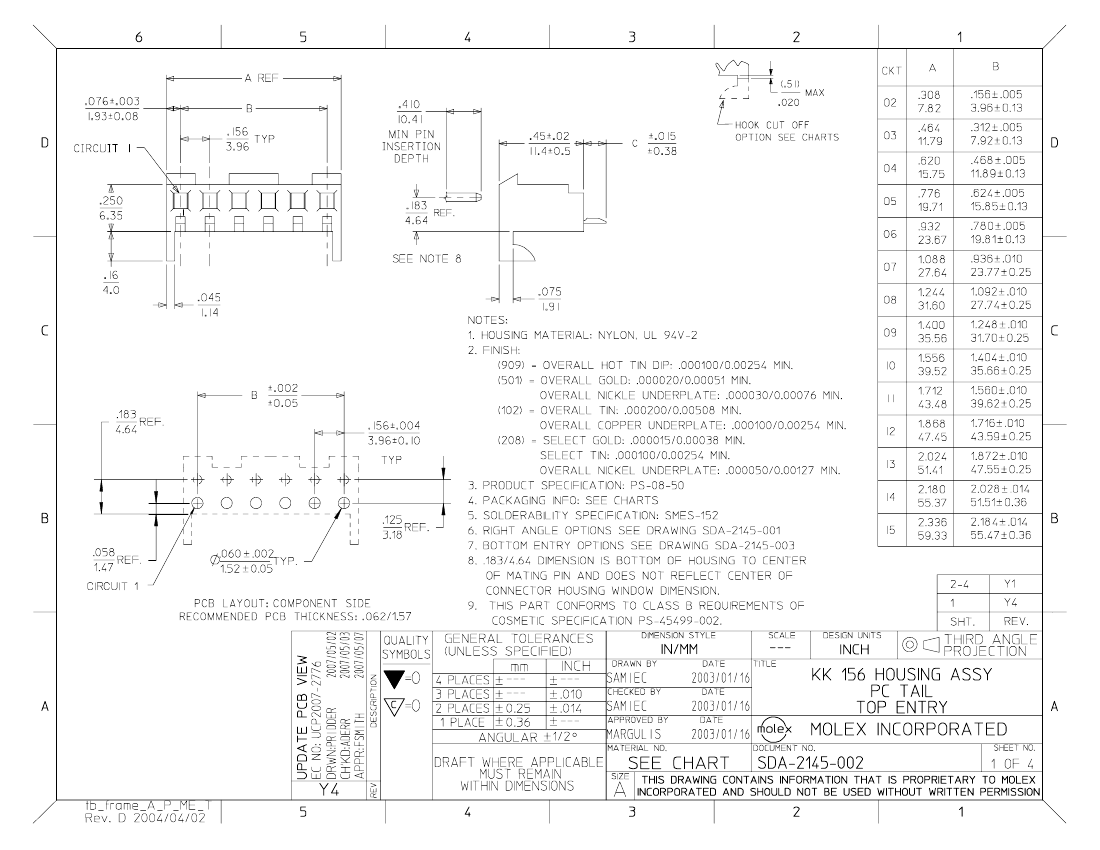

Drawing (PDF)
Product Specification PS-08-50 (PDF)
RoHS Certificate of Compliance (PDF)
Series
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
UL
General
Product Family
Series
Application
Product Name
PCB Receptacles
2145
Board-to-Board
KK®
Physical
Circuits (Loaded)
Color - Resin
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
2
Natural
94V-2
No
Yes
Phosphor Bronze
Tin
Tin
Nylon
1
Vertical
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.156 In
3.96 mm
200
5
200
5
No
0°C to +75°C
Through Hole
Search Parts in this Series
2145Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
5A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
235
