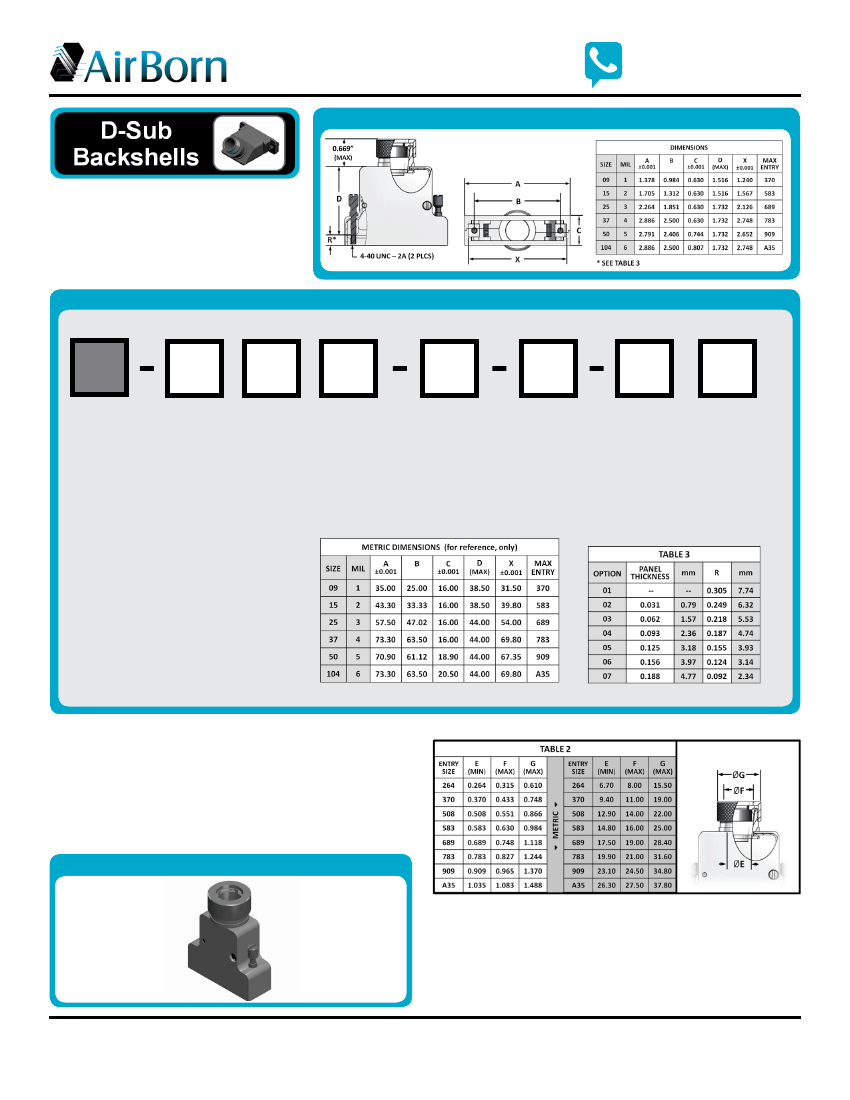

DF 1 – Cone Clamp, Split-Shroud
Backshell with Circular Top Entry
and Plain Nut
For use with D-Subminiature and
MIL-DTL-24308 connectors.
ORDER FORM
ENTER
CODE
ENTER
CODE
ENTER
CODE
Sample Part Number Format: DF-112-015-XXX-SH00
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
DF
SERIES
Cone Clamp, Split-
Shroud Backshells
for D-Subminiature
Connectors
MATERIAL
1 – Aluminum
alloy
STYLE
1 – Circular top
entry with
plain nut
PLATING
2 – Nickel-plated
aluminum
3 – Cadmium-plated
aluminum ‡
D – Cadmium, olive
drab ‡
Z – Zinc cobalt over
nickel
SIZE
009 – 9 Contacts
015 – 15 Contacts
025 – 25 Contacts
037 – 37 Contacts
050 – 50 Contacts
104 – 104 Contacts
ENTRY SIZE
See Table 2 below
HARDWARE
SH – Slot head
screw with clip
AH – Allen head
screw with clip
OPTIONS
01 – Front panel mount
02 – Rear panel mount
03 – Rear panel mount
04 – Rear panel mount
05 – Rear panel mount
06 – Rear panel mount
07 – Rear panel mount
(See Table 3 below)
NOTES
‡ Option not RoHS-compliant
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
MATERIALS and FINISHES
Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy
Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½
Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2
Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel
Zinc cobalt over electroless nickel with olive drab chromate conversion
Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or
AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2
Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M
Passivated per SAE AMS-2700, Method 2
METRIC
(for reference, only)
DF-112-015-XXX-SH00
DF1-PNB-1
