DF-16Z-015-370-AH03 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> DF-16Z-015-370-AH03

DF-16Z-015-370-AH03: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size1MB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

DF-16Z-015-370-AH03 Overview

Connector Accessory

DF-16Z-015-370-AH03 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	DF

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

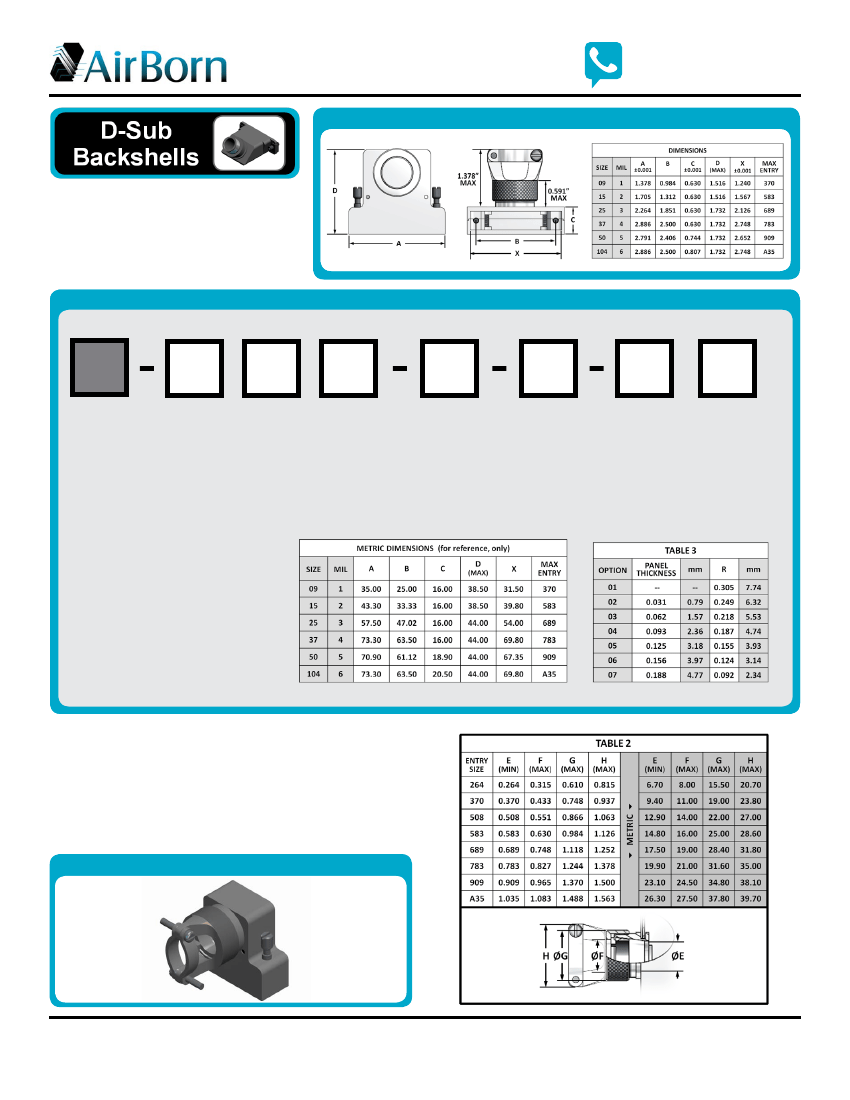

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

DF 6 – Cone Clamp, Split-Shroud

Backshell with Circular Side Entry

and Cable Clamp

For use with D-Subminiature and

MIL-DTL-24308 connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: DF-162-015-XXX-SH00

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Cone Clamp, Split-

Shroud Backshells

for D-Subminiature

Connectors

MATERIAL

1 – Aluminum

alloy

STYLE

6 – Circular side

entry with

cable clamp

PLATING

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum ‡

D – Cadmium, olive

drab ‡

Z – Zinc cobalt over

nickel

SIZE

009 – 9 Contacts

015 – 15 Contacts

025 – 25 Contacts

037 – 37 Contacts

050 – 50 Contacts

104 – 104 Contacts

ENTRY SIZE

See Table 2 below

HARDWARE

SH – Slot head

screw with clip

AH – Allen head

screw with clip

OPTIONS

01 – Front panel mount

02 – Rear panel mount

03 – Rear panel mount

04 – Rear panel mount

05 – Rear panel mount

06 – Rear panel mount

07 – Rear panel mount

(See Table 3 below)

NOTES

‡ Option not RoHS-compliant

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel

Zinc cobalt over electroless nickel with olive drab chromate conversion

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or

AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

DF-162-015-XXX-SH00

DF6-PNB-1

www.airborn.com

(512 ) 863-5585
