Part Number:
Status:
Description:
0903257012
Active
1.27mm (.050") Pitch Picoflex® PF-50 Header, Vertical, Low Profile, with PCB Pegs, 12
Circuits, Tube Packaging
Documents:
3D Model
Drawing (PDF)
Product Specification PS-99020-0011 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
MolexKits
Product Name
PCB Headers
90325
Wire-to-Board
Low Profile
Yes
Picoflex®
Physical
Breakaway
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
12
Black
100
No
94V-0
No
No
None
Yes
Brass
Gold
Polyester
1
Vertical
Yes
0.062 In
1.60 mm
Tube
0.050 In
1.27 mm
30.4
0.76
120
3
Yes
Yes
No
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
90325Series
Mates With
90327 IDT Connector
Electrical
Current - Maximum per Contact
Voltage - Maximum
1.2A
250V
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification

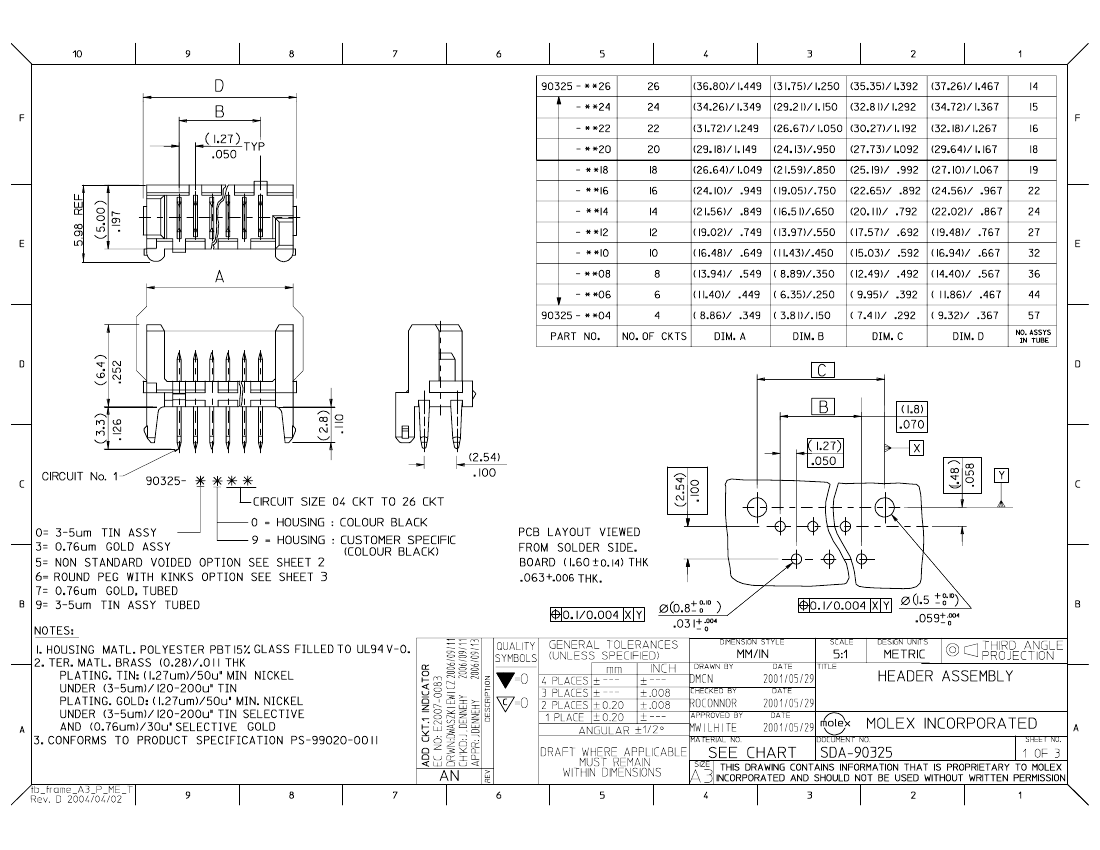

Sales Drawing
PK-90325-001
PS-99020-0011
SDA-90325
