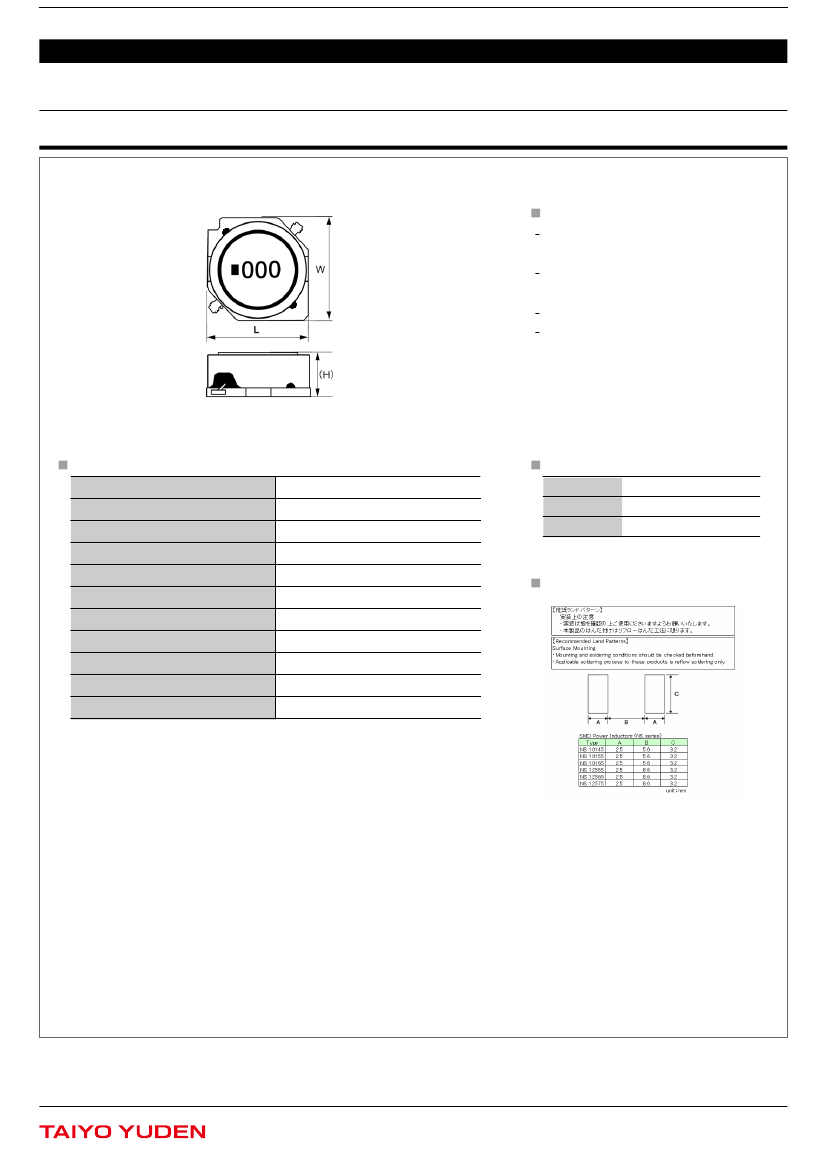

Spec Sheet
INDUCTORS (High Reliability Application)
SMD Power Inductors for Automotive / Industrial Applications (NS series)
NS12555T680MNV
Features
Item Summary
68μH(±20%), 1.81A, 2.14A
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping 2000pcs(500pcs*4reel)
Products characteristics table
CaseSize (EIA/JIS)
Inductance
Inductance Measuring Frequency
Rated Current -Saturation Current
Rated Current -Temperature Rise Current
DC Resistance (max)
Avg. of DC.Resistance
Self-resonant Frequency (min)
RoHS Compliance
Halogen Free
Soldering Method
-/125125
68μH(±20%)
100kHz
1.81A
2.14A
External Dimensions
L
W
H
12.5mm ±0.3
12.5mm ±0.3
5.5mm ±0.35
Recommended Land Patterns
0.09984Ω
0.0832Ω
7.9MHz
Yes
Yes
Reflow
2015.03.09
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor
-Electrical Characteristics Data-
2014/12/8
SMD Power Inductors for Industrial / Automotive Comfort and Safety Applications
(NS series)(AEC-Q200 qualified)
Dimension
Length :
Width :
Height :
unit : mm
12.5 + / - 0.3
12.5 + / - 0.3
5.5 + / - 0.35
unit : inch
( 0.492 + / - 0.012 )
( 0.492 + / - 0.012 )
( 0.217 + / - 0.014 )
NS12555T680MNV
Inductance :
68
uH
( test freq at 0.1MHz )
ohm ( typ / max )
DC Resistance :
0.0832
/
0.09984
Saturation Current :
1.81 A ( max )
Temp. rise Current :
2.14 A ( max )
Saturation current typical : 30% reduction from initial L value.
AEC-Q200 qualified
Temp rise Current typical : Temperature will rise by 40 deg C
DC Bias vs Inductance
150
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
600
1200
1800
2400
3000
50
40
30
20
10
0
0
600
1200
1800
2400
3000
Inductance [uH]
100
50
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
10000
Inductance [uH]
1000
100
10
0.1
1
10
100
1000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
The products are tested based on the test conditions and methods defined in AEC-Q200.
Please consult with TAIYO YUDEN for the details of the product specification and AEC-Q200 test results, etc.,
and please review and approve TAIYO YUDEN's product specification before ordering.
