This document was generated on 05/28/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0923171820
Active
picoflex
Picoflex® PF-50 IDT-to-IDT Z-Style, 18 Circuits, 0.20m (7.87") Length
Product Specification PS-99020-0011 (PDF)
RoHS Certificate of Compliance (PDF)
Series
Cable Assemblies
92317
Picoflex ® IDT-to-IDT Z Style
picoflex
Picoflex®
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Connector to Connector
Overview
Product Name
Physical
Cable Length
Circuits (Loaded)
Color - Resin
Gender
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Single Ended
Termination Interface: Style
Waterproof / Dustproof
Wire Insulation Diameter
Wire Size AWG
Wire/Cable Type
0.20m (7.87")
18
Natural
Female-Female
None
Phosphor Bronze
Tin
Tin
Polyester
Bag
0.050 In
1.27 mm
80.00
2.000
80.00
2.00
No
IDT or Pierce
No
N/A
28
PVC, Ribbon Cable
Search Parts in this Series
92317Series
Mates With
Picoflex® PF-50 Header 90325 , 90800 ,
90779 , 90715 , 90814
Electrical
Current - Maximum per Contact
Shielded
Voltage - Maximum
1.2A
No
250V
Material Info
Reference - Drawing Numbers
Product Specification

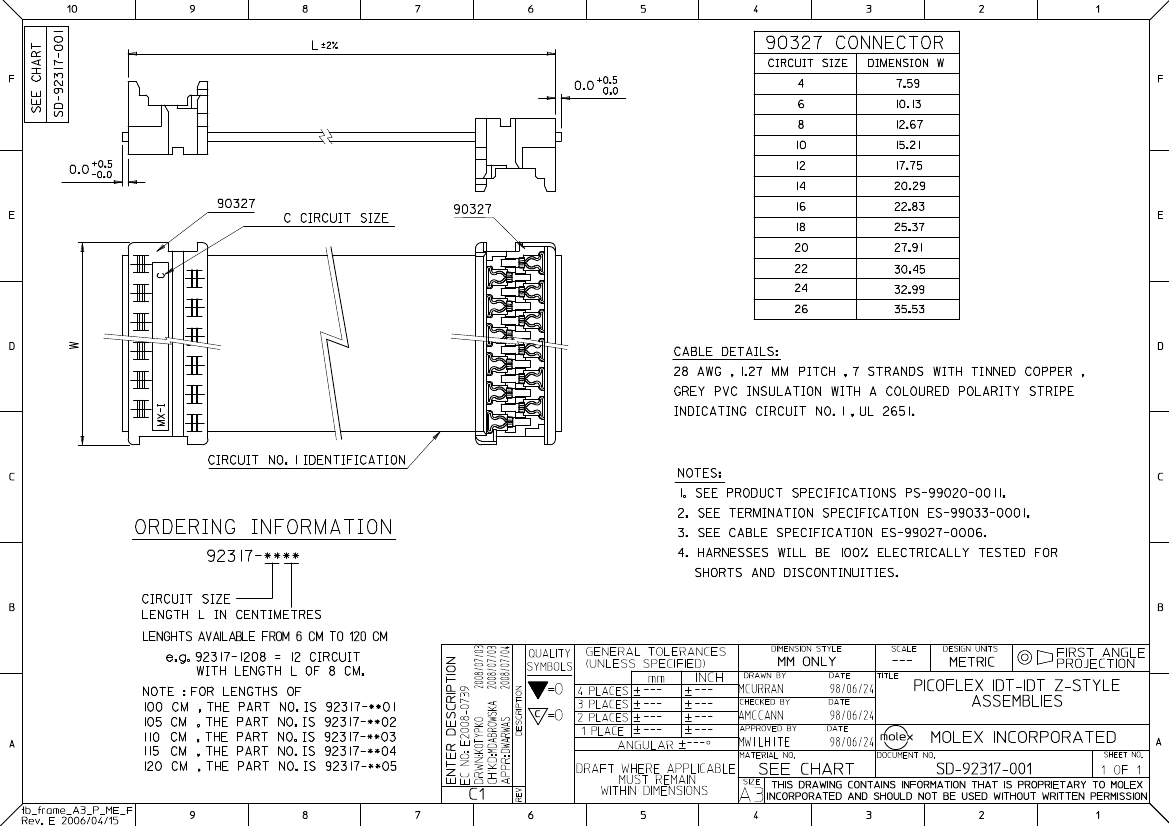

Sales Drawing
PS-99020-0011
SD-92317-001
This document was generated on 05/28/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
