PCLH-105A1MSP.000 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> PCLH-105A1MSP.000

PCLH-105A1MSP.000: DescriptionPOWER/SIGNAL RELAY, SPST, MOMENTARY, 1400mW (COIL), 15A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size316KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

PCLH-105A1MSP.000 Overview

POWER/SIGNAL RELAY, SPST, MOMENTARY, 1400mW (COIL), 15A (CONTACT), 24VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

PCLH-105A1MSP.000 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 80 V, COIL RELEASE VOLTAGE(AC): 30 V
body width	21.2 mm
body height	33.6 mm
Body length or diameter	27.5 mm
Coil current (AC) maximum value	0.036 A
Coil power	1400 mW
Coil resistance	2800 Ω
Maximum coil voltage (AC)	100 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact current (DC)	15 A
Contact (DC) maximum rated R load	15A@24VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	24 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	PCLH
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	20 ms
Maximum operating temperature	55 °C
Minimum operating temperature	-10 °C
physical size	27.5mm X 21.2mm X 33.6mm
Guideline	CSA; UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

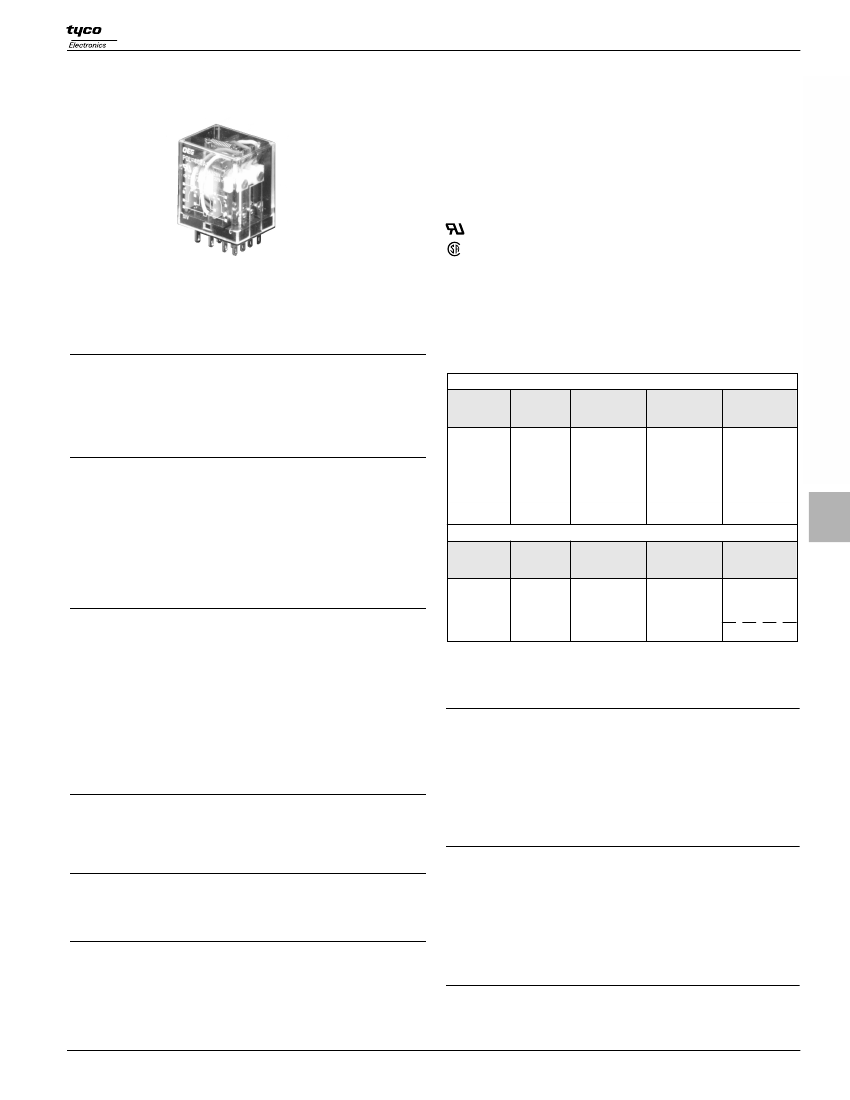

Catalog 1308242

Issued 3-03

OEG

PCL/PCLH series

3A, 5A, 10A, 15A General Purpose

Miniature Relay

Factory Automation, Process Controls,

Electrical Panels, etc.

UL File No. E58304

CSA File No. LR48471

Users should thoroughly review the technical data before selecting a product part

number. It is recommended that user also seek out the pertinent approvals files of

the agencies/laboratories and review them to ensure the product meets the

requirements for a given application.

Features

• Small size, 3A, 5A, 10A and 15A switching capacity.

• Meets UL and CSA requirements.

• 1 pole, 2 poles and 4 poles contact arrangements.

• AC and DC coils with UL Class F (155°C) coil insulation system standard.

• Optional flange mount case.

• Plug-in terminals or PCB terminals.

Coil Data@ 20°C

Rated Coil

Voltage

(VAC)

100

110/120

200

220/240

PCL AC Coil

Must Operate Must Release

Coil

Voltage

Resistance

Voltage

(VAC)

(ohms)±10%

(VAC)

160

600

2,800

3,400

11,000

13,600

Nominal Coil

Power

(VA)

Contact Data @ 20°C

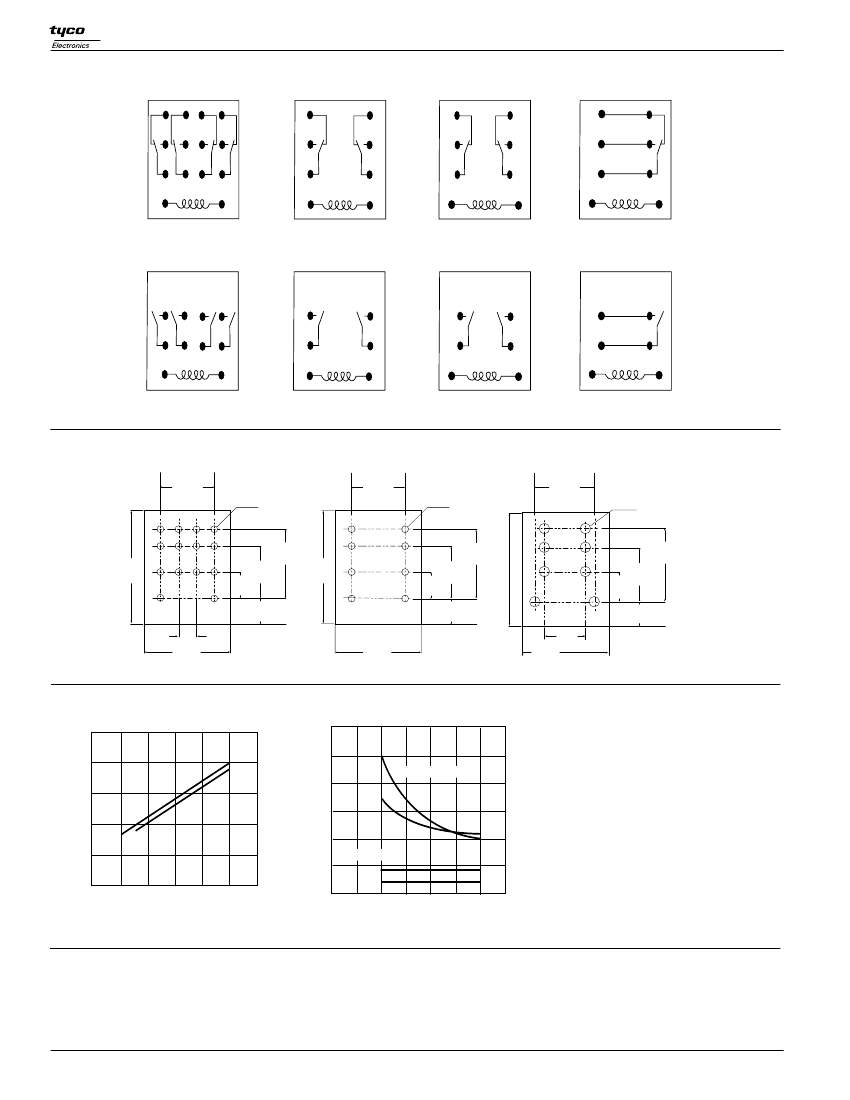

Arrangements:

1 Form A (SPST-NO),

1 Form C (SPDT),

2 Form A (DPST-NO),

2 Form C (DPDT),

4 Form A (4PST-NO),

4 Form C (4PDT).

Material:

Ag, Ag Alloy.

Max.Switching Rate:

300ops./min.(Mechanical).

30ops./min.(Electrical).

Expected Mechanical Life:

100 million operations (no load).

Expected Electrical Life:

100,000 operations (rated load).

Minimum Load:

100mA @ 5VDC.

Initial Contact Resistance:

50milliohms @ DC6V,1A.

80% max.

30% min.

abt. 1.4

PCL DC Coil

Rated Coil

Voltage

(VDC)

100/110

Coil

Must Operate

Resistance

Voltage

(ohms)±10%

(VDC)

160

650

2,600

11,000

Must Release

Voltage

(VDC)

Nominal Coil

Power

(W)

abt. 0.9

abt. 1.1

Contact Ratings

PCL-4

3A @ AC250V/DC24V resistive.

PCL-2

5A @ AC250V/DC24V resistive.

PCLH-2 15A @ AC120V resistive.

10A @ AC250V/DC24V resistive.

PCLH-1 15A @ AC250V/DC24V resistive.

Max. Switched Current:

PCL-4

3A.

PCL-2

5A.

PCLH-2

15A.

PCLH-1

15A.

Max. Switched Power:

PCL-4

660VA, 72W.

PCL-2

1,100VA, 120W.

PCLH-2

3,168VA, 240W.

PCLH-1

3,300VA, 360W.

Ratings:

80% max.

10% min.

Operate Data @ 20°C

Must Operate Voltage:

AC 80% of nominal voltage or less.

DC 80% of nominal voltage or less.

Must Release Voltage:

AC 30% of nominal voltage or more.

DC 10% of nominal voltage or more.

Operate Time:

AC 20ms max.

DC 15ms max.

Release Time:

AC 20ms max.

DC 8ms max.

Initial Dielectric Strength

Between Open Contacts:

1,000VAC 1minute.

Between Adjacent Contact Terminals:

1,500VAC 1minute.

Between Contacts and Coil:

2,000VAC 1minute.

Surge Voltage (Coil-Contact):

3,000V(1.2/50µs).

Environmental Data

Temperature Range:

Operating:

-10°C to +55°C.

Humidity:

45 to 85%. (Non-condensing).

Vibration, Operational:

10 to 55Hz 1.0mm double amplitude.

Mechanical:

10 to 55Hz 1.0mm double amplitude.

Shock, Operational:

100m/s

(abt. 10G).

Mechanical:

1,000m/s

(abt. 100G).

Initial Insulation Resistance

Between Open Contacts:

1,000Mohms @ 500VDC.

Between Adjacent Contact Terminals:

1,000Mohms @ 500VDC.

Between Contacts and Coil:

1,000Mohms @ 500VDC.

Coil Data

Voltage:

AC 6 - 240V.

DC 6 - 110V.

Nominal Power:

AC abt. 1.4VA/1.2VA (50Hz/60Hz).

DC abt. 0.9W.

Coil Temperature Rise:

AC 60°C max.

DC 50°C max.

Max. Coil Power:

110% of nominal voltage.

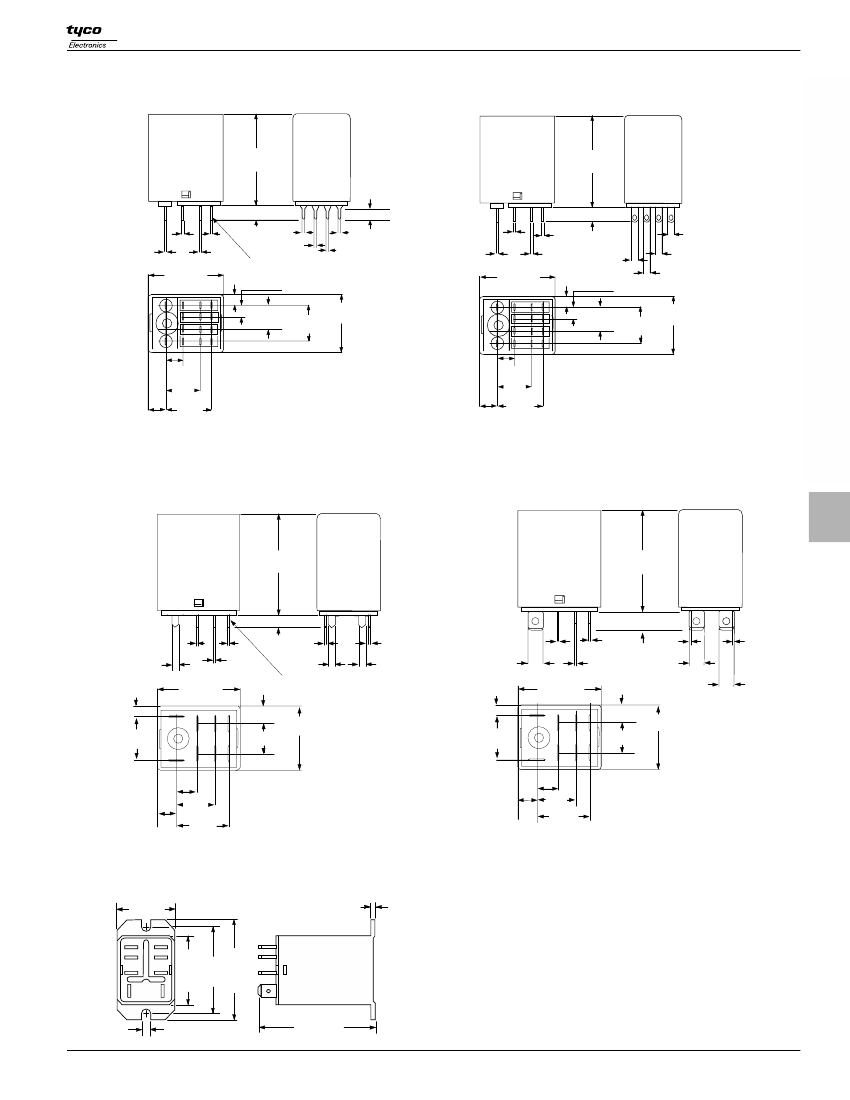

Dimensions are shown for

reference purposes only.

Dimensions are in inches over

(millimeters) unless otherwise

specified.

Mechanical Data

Termination:

Plug-in, PCB.

Enclosure:

Snap-on cover.

Weight:

1.26 oz (32g) approximately.

Specifications and availability

subject to change.

www.tycoelectronics.com

Technical support:

713

Refer to inside back cover.
