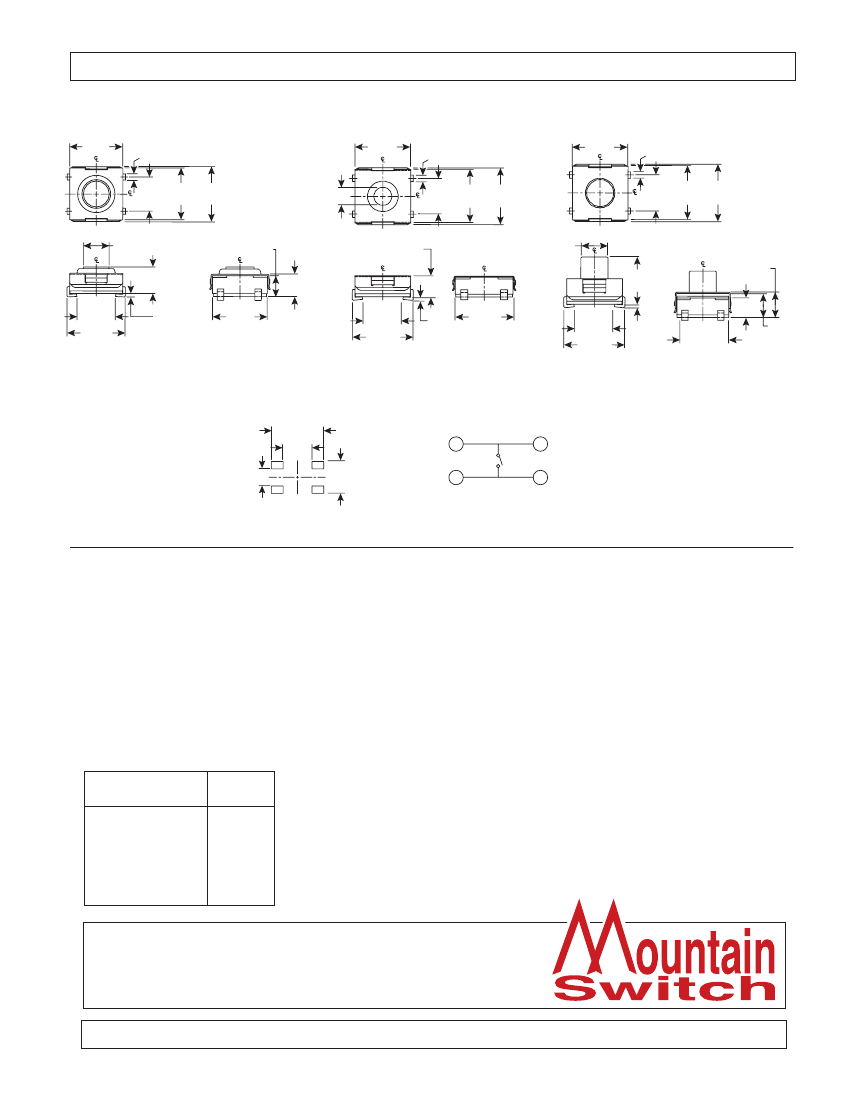

Last Update:
1-5-06
Dimensions: mm (In)
6.20
(.244)
6.20
(.244)
6.20
(.244)
Ref. #:
MS-100637
.70
(.027)
4
6
6.30
(.157) (.236) (.248)
ø2
(.079)
.70
(.027)
4
6
6.30
(.157) (.236) (.248)
.70
(.027)
4
6
6.30
(.157) (.236) (.248)
ø3
(ø.118)
ø3.10±.20
(ø1.22±.008)
4.50
(.177)
6.80
(.268)
.40
(.016)
2.20
(.087)
2.35
(.093)
5.80
(.228)
ø3.10±.20
(ø1.22±.008)
ø3
(ø.118)
H.20
(.008)
2.85
(.112)
2.20
(.087)
5.80
(.228)
2.70
(.106)
4.50
(.177)
6.80
(.268)
.40
(.016)
5.80
(.228)
4.50
(.177)
6.80
(.268)
.40
(.016)
PCB Layout
8.60 (.34)
4
(.157)
2.60
(.102)
5.40
(.212)
Circuit Diagram
T1
T3
T2
T4
Electrical Specifications:
•
Electrical Life:
100K cycles (min.): TS6923T1601
500K cycles (min.): TS6923T1803, TS6923T1805,
TS6923T2603, TS6923T2604,
TS6923T2605, TS6923T3604,
TS6923T3605
Rating: 50mA/12VDC
Contact Resistance: 100mΩ max.
Insulation Resistance: 100MΩ min. @ 500VDC
Dielectric Strength: 250VAC/minute
Mechanical Specifications:
•
Operating Force:
160gf (silver): TS6923T1601
180gf (brown): TS6923T1803, TS6923T1805
260gf (red):
TS6923T2603, TS6923T2604
TS6923T2605
360gf (clear): TS6923T3604, TS6923T3605
Materials:
•
Cover: Stainless steel
•
Contact Disc: Phosphor bronze with
•
•
•
•
•
•
silver cladding
Terminal: Brass with silver cladding
Base: UL94V-0 Nylon high-temp.
thermoplastic, black
Stem: High-temp thermoplastic
nylon UL 94V-0 (66N)
Adhesive Tape: Resin based
Metal Stem: Brass w/ nickel plated
Sealed Rubber: Silicone rubber
•
•
•
•
•
•
•
•
•
Stop Strength: Max 3kgf vertical static load cont. for
15 sec.
Stroke: 0.25 +0.20/-0.1mm, 66N, 68S
0.45 ±0.2mm, 69, 67, 65N(R)
0.6 ±0.2mm, 69, 65, 67T
Operating Temperature: -25°C to +70°C
Storage Temperature: -30°C to +80°C
Type: SPST
Mouser
Stock No.
101-TS6923T1803-EV
101-TS6923T2603-EV
101-TS6923T2604-EV
101-TS6923T3604-EV
101-TS6923T1805-EV
101-TS6923T2605-EV
101-TS6923T3605-EV
H
3.5mm
3.5mm
3.8mm
3.8mm
5.2mm
5.2mm
5.2mm
Note:
•
RoHs Compliant and process
compatible with 260° solder
Tactile Switches (SMT)
101-TS6923T1601-EV
101-TS6923T1803-EV
101-TS6923T2603-EV
101-TS6923T2604-EV
101-TS6923T3604-EV
101-TS6923T1805-EV
101-TS6923T2605-EV
101-TS6923T3605-EV
Available from Mouser Electronics
www.mouser.com
1-800-346-6873
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
