DAC
CONNECTOR
Disconnectable Crimp style Wire-to-wire connectors
Specifications –––––––––––––––––––
• Current rating: Signal circuit/ 1.5A AC, DC (AWG #27, #26)
Power supply circuit/ 6A AC, DC (AWG #18)
• Voltage rating: Signal circuit/ 50V AC, DC
Power supply circuit/ 300V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Applicable wire: Signal circuit Condector size/ AWG #30 to #26
Power supply circuit Condeuctor size/ AWG #22 to #18
Plug side sheath O.D./ 5 to 8.2mm
• Number of circuits: Signal circuit/ 14 circuits
Power supply circuit/ 5 circuits
• Applicable PC board thickness: 1.0 to 2mm
• Mating/unmating life: 100 cycles
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

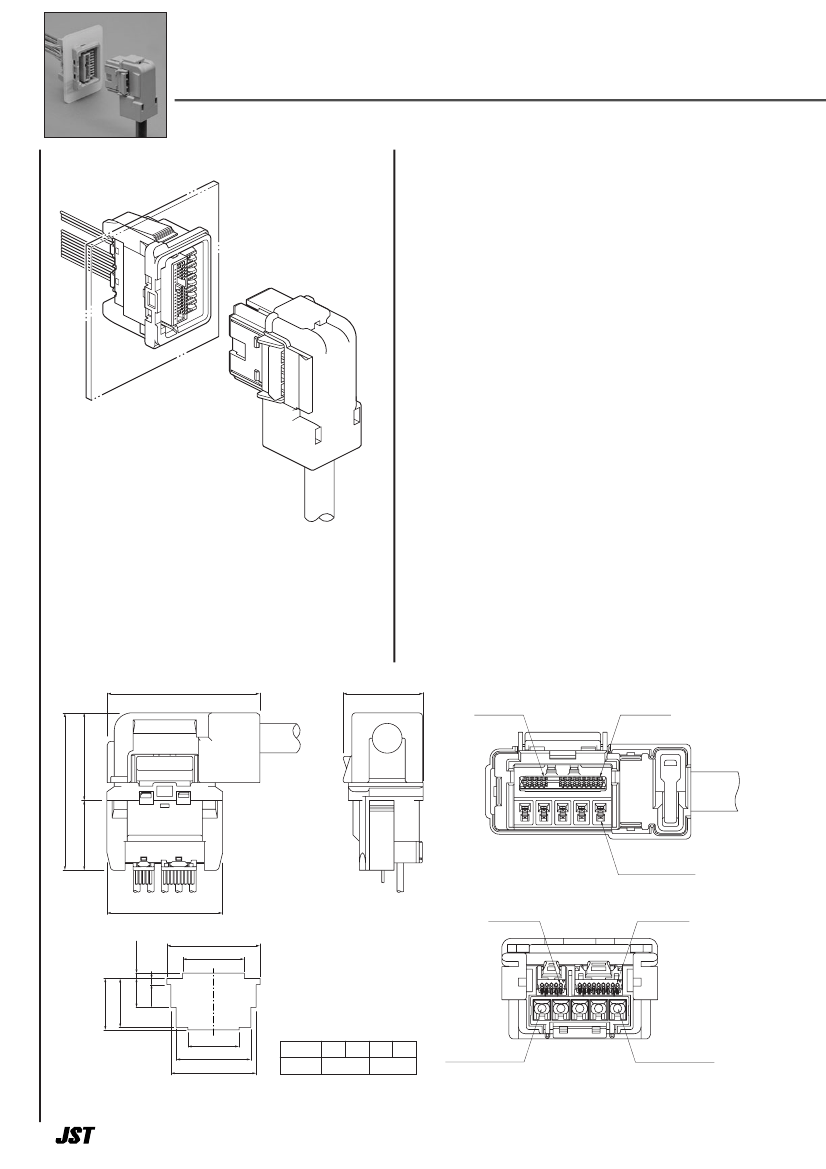

Hybrid type I/O connector with combined
signal and power supply circuits.
• Signal circuit 1.0mm pitch lever-locking type
• Curtailment of number of component
• Space saving
• Locking mechanism
43.6
22.8
Standards ––––––––––––––––––––––
2
J50219161
0
Recognized E60389
Signal line B/
Circuit No. 1
Plug side
Signal line A/
Circuit No. 1
44.9
25
H JST
19.9
Power supply circuit/
Circuit No. 1
33
Signal line B/
Circuit No. 1
33.2
±0.1
22
±0.2
B1
A1
Signal line A/
Circuit No. 1
1.9
±0.1
10.3
±0.2
2.2
±0.2
+0.2
0
+0.2
0
18.3
17.4
18.3
±0.2
26.6
±0.2
A
±0.05
Panel
thickness
A
dimension
t 1.0
t 1.2
t 1.6
t 2.0
Power supply circuit/
GND
30.2
30.4
Receptacle side
Note: 1. Punch holes in the panel according to the figures shown above. Burrs must be removed.
2. The strength of the panel must be considered when punching two or more holes.
3. The connector must be inserted from the same side as the hole is punched.
1
1
2
3
9
4
5G
5
Power supply circuit/
Circuit No. 1

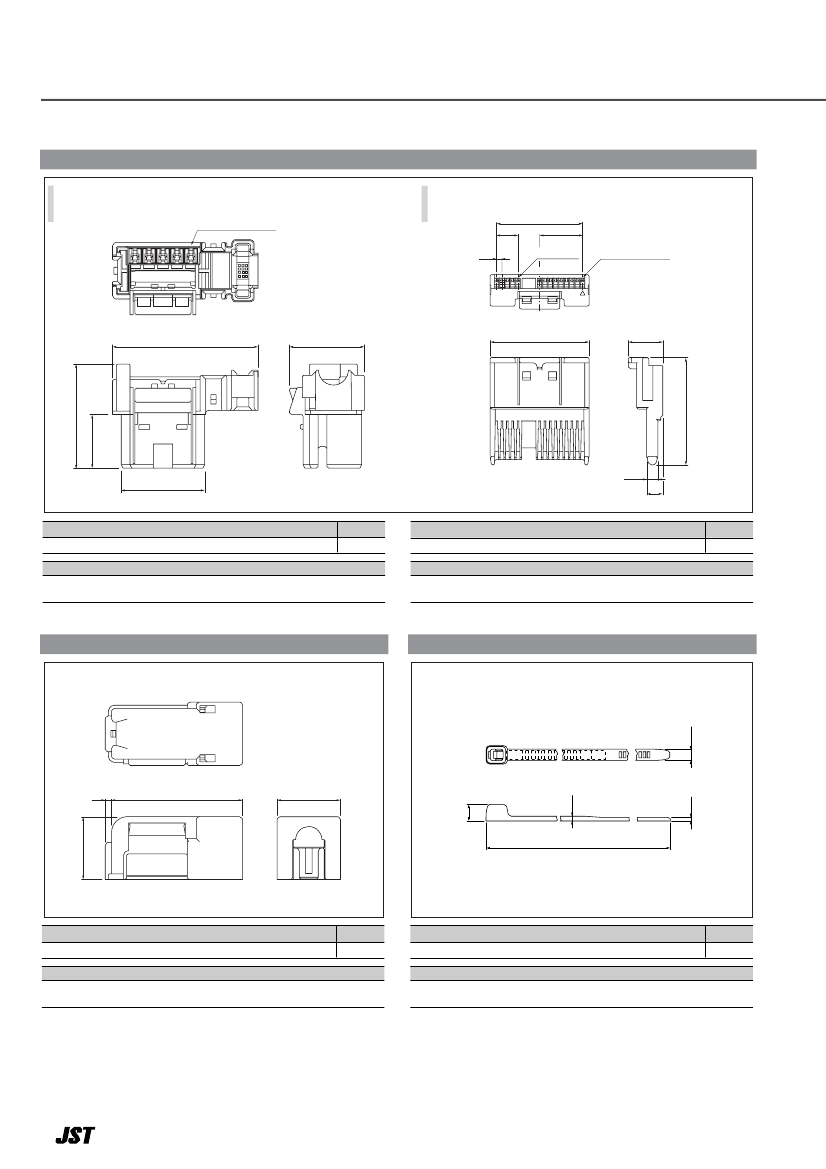

DAC CONNECTOR
Plug contact for power supply circuit
1.4
Receptacle contact for power supply circuit
2.2
12.6
17.6
0.5
1.9
4.3
4.3
Model No.
SSM-21T-P1.4
Applicable wire
mm
2
AWG #
22 to 18
Insulation O.D.
(mm)
1.5 to 2.5
Q'ty /
reel
6,000
Model No.
SDACF-21T-P1.4
Applicable wire
mm
2
AWG #
22 to 18
Insulation O.D.
(mm)
1.5 to 2.5
Q'ty /
reel
6,000
0.3 to 0.75
0.3 to 0.75
Material and Finish
Copper alloy, tin-plated
Material and Finish
Copper alloy, tin-plated
RoHS compliance
Applicator
Dies
MK/SSF/M-21-14
−
−
RoHS compliance
Crimping
machine Crimp applicator
MKS-L
−
−
Contact
Crimping
machine Crimp applicator
MKS-L
−
−
Crimp applicator with dies
APLMK SSF/M21-14
−
−
Contact
Applicator
Dies
MK/SSF/M-21-14
−
−
Crimp applicator with dies
APLMK SSF/M21-14
−
−
SSM-21T-P1.4
AP-K2N
SDACF-21T-P1.4
AP-K2N
Plug
Plug contact for signal
0.7
Model No.
SDACP-002T-M0.9
Applicable wire
mm
2
AWG #
30 to 26
Insulation O.D.
(mm)
0.6 to 0.8
Q'ty /
reel
18,000
0.05 to 0.13
Material and Finish
Copper alloy, nickel-undercoated, tin-plated (reflow treatment)
13.2
RoHS compliance
This product displays (LF)(SN) on a label.
Applicator
Dies
−
−
1.6
Contact
Crimping
machine Crimp applicator
MKS-L-10-3
−
−
Crimp applicator with dies
−
−
2.1
SDACP-002T-M0.9
AP-K2N
MK/SRFCP-002-09 APLMK SRFCP002-09
2

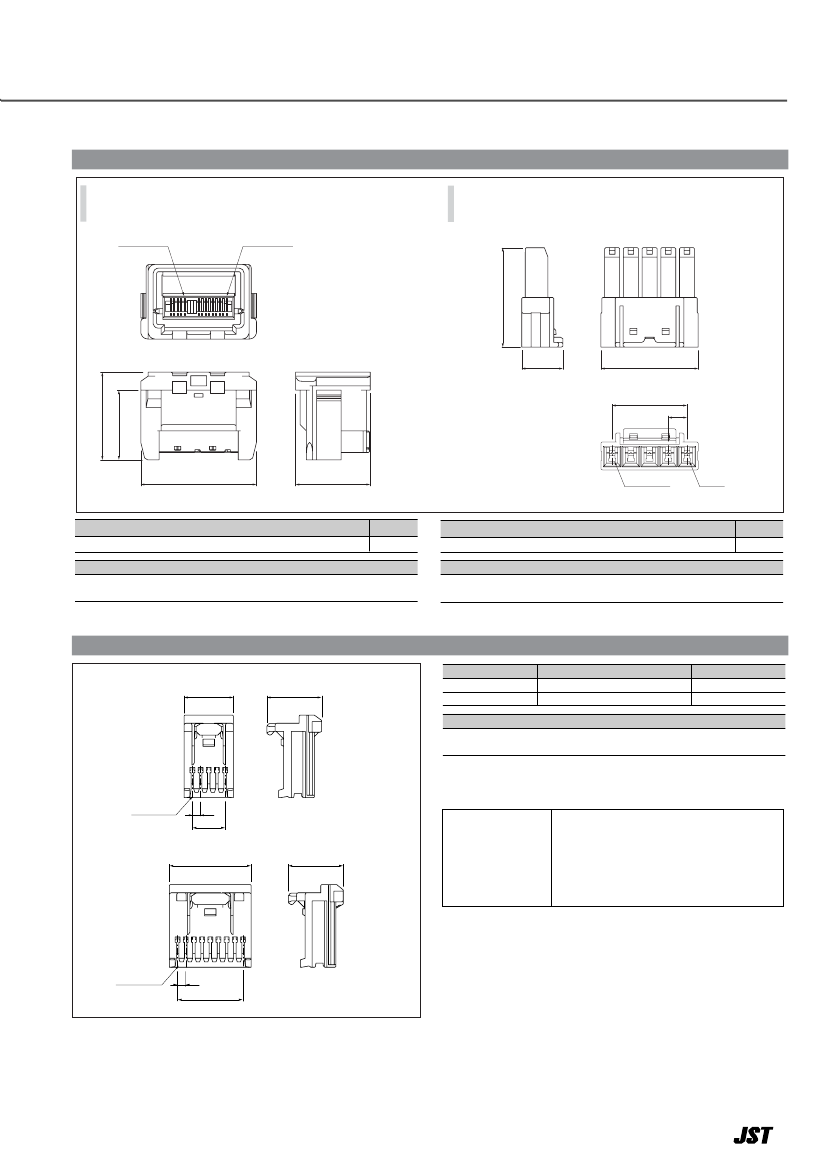

DAC CONNECTOR
Receptacle
Signal 14 circuits / power 5 circuits
Signal line B/
Circuit No. 1
Signal line A/
Circuit No. 1
Power supply unit
21.25
8.8
H JST
20.8
16
25
19.9
4
1
2
3
4
5G
33
21.3
Circuit No.1
GND
Model No.
14P5RA-DAC-HT
Material and Finish
Q'ty / box
240
Model No.
DACYR-P5-5G-H
Material
PBT, UL94V-0, gray
Q'ty / box
120
Contact: Copper alloy, nickel-undercoated, tin-plated (reflow treatment)
Housing: PBT, UL94V-0, gray
RoHS compliance
This product displays (LF)(SN) on a label.
RoHS compliance
CSR connector socket
Circuits
(5 circuits)
6
6.7
5
9
Model No.
05CSR-8PK
09CSR-8PK
Material and Finish
Contact: Copper alloy, tin-plated
Housing: PBT, UL94V-0, pink
Q'ty / box
9,000
5,400
RoHS compliance
Circuit No.1
1
4
(9 circuits)
10
6.7
UL11079, UL3619, UL3855, UL11030
(Contact JST for details regarding other UL style.)
Applicable wire
AWG#27, #28
Conductor/ 7 strands, tin-coated annealed copper
Insulation O.D./ 0.65 to 0.73mm
Circuit No.1
1
8
4
