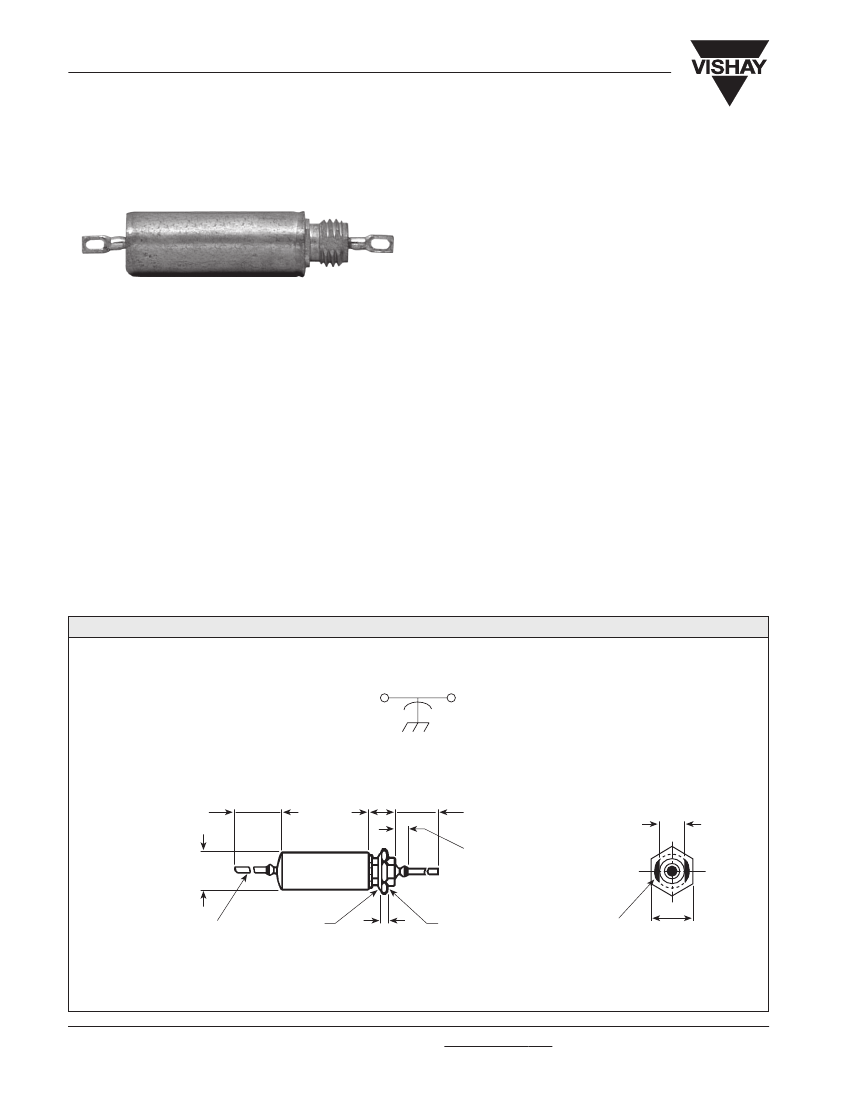

Type 103P
Vishay Sprague
Paper Capacitors
Metal Case, Film/Foil, 10 Ampere
Thru-Pass, Subminiature
FEATURES
•
Bulkhead mounting
•
Excellent RFI specifications
•
Hermetically encased
•
Low inductance connection
•
Low insertion loss
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55°C to + 125°C.
Capacitance Range:
0.001µF to 1.0µF.
Capacitance Tolerance:
±
20%,
±
10%.
Voltage Rating:
200 WVDC to 600 WVDC.
Current Rating:
10 ampere maximum.
Dissipation Factor:
1.0% maximum.
DC Resistance:
0.01 ohm maximum.
Voltage Test:
200% of rated voltage for 1 minute.
Insulation Resistance:
At + 25°C: 20,000 Megohm -
Microfarads or 30,000 Megohm minimum. At + 85°C:
200 Megohm - Microfarads or 300 Megohm minimum.
DC Life Test:
140% of rated voltage for 250 hours
@ + 125°C. No open or short circuits. No visible damage.
Maximum
∆
Cap.:
±
5%. Minimum I.R. = 30% of initial
limit. Maximum D.F. = 1.5%.
Moisture Resistance:
MIL-STD-202, Method 106E,
10 cycles. No visible damage. Maximum
∆
Cap.:
±
5%.
Minimum I.R. = 30% of initial limit. Maximum D.F. = 1.5%.
Thermal Shock and Immersion Cycling:
No visible
damage. Maximum
∆
Cap.:
±
5%. Minimum I.R. = 30% of
initial limit. Maximum D.F. = 1.5%.
PHYSICAL CHARACTERISTICS
Lead Pull:
5 pounds (2.3 kilograms) for one minute.
No physical damage.
Lead Bend:
After three complete consecutive bends,
no damage.
Marking:
Sprague
®
trademark, type or part number,
capacitance and voltage.
ENVIRONMENTAL CHARACTERISTICS
Vibration Test (Condition A):
No mechanical damage,
short, open or intermittent circuits.
DIMENSIONS
in inches [millimeters]
Circuit
Diagram
0.312
±
0.031
[7.92
±
0.79]
1.625 + 1.000 - 0.0
[41.28 + 25.40 - 0.0]
L
±
0.031 [0.79]
1.625 + 1.000 - 0.0
[41.28 + 25.40 - 0.0]
0.255 [6.48]
0.250 [6.35]
Across Flats
D
+ 0.015 [0.38]
- 0.005 [0.130]
Dia.
External
Toothed
Lockwasher
Pt. No. 2-123
0.125 [3.18]
Max.
0.040 + 0.004 - 0.001
[1.02 + 0.10 - 0.02]
Dia.
No. 18 AWG
Solid Tinned Leads
0.125
±
0.015
[3.18
±
0.38]
Nut
5/16 [7.938]
24 UNF-2A
Pt. No. 6-113
Straddle Milled Flats
on Thread for Locking
on Mounting Surface
0.437
±
0.015
[11.10
±
0.38]
Across Flats
www.vishay.com
96
For technical questions, contact spresale@vishay.com
Document Number: 42032
Revision 17-Nov-03
Type 103P
Vishay Sprague
DIMENSIONS
in inches [millimeters]
Tab Terminals
C
L
0.020
±
0.005
[0.51
±
0.13]
0.255 [6.48]
0.250 [6.35]
C
L
Across Flats
0.020
±
0.005
[0.51
±
0.13]
C
L
C
L
0.125
±
0.015
[3.18
±
0.38]
Slot
0.062 x 0.125
[1.58 x 3.18]
Slot
0.060 [1.52]
0.050 [1.27]
x 0.125 [3.18]
0.125
±
0.015
[3.18
±
0.38]
0.296
±
0.062
[7.52
±
1.57]
0.187
±
0.015
[4.75
±
0.38]
0.296
±
0.015
[7.52
±
0.38]
0.187
±
0.015
[4.75
±
0.38]
0.156
±
0.015
[3.96
±
0.38]
.312
±
0.031
[7.92
±
0.79]
0.156
±
0.015
[3.96
±
0.38]
5/16 [7.938] -
24 UNF -
2A THD
STANDARD RATINGS
in inches [millimeters]
CAPACITANCE
(
µ
F)
PART NUMBER*
TAB TERMINAL
WIRE LEAD
200 WVDC
0.047
0.10
0.22
0.47
1.00
103P473X0200T
103P104X0200T**
103P224X0200T
103P474X0200T**
103P105X0200T
103P473X0200S
103P104X0200S
103P224X0200S
103P474X0200S
103P105X0200S
300 WVDC
0.047
0.10
0.22
0.47
103P473X0300T
103P104X0300T
103P224X0300T
103P474X0300T
103P473X0300S
103P104X0300S
103P224X0300S
103P474X0300S
400 WVDC
0.047
0.10
0.22
0.47
103P473X0400T
103P104X0400T**
103P224X0400T**
103P474X0400T
103P473X0400S
103P104X0400S*
103P224X0400S*
103P474X0400S
600 WVDC
0.001
103P102X0600S
0.400 x 0.750 [10.16 x 19.05]
103P102X0600T
0.0047
103P472X0600T**
103P472X0600S*
0.400 x 0.750 [10.16 x 19.05]
0.01
0.400 x 0.750 [10.16 x 19.05]
103P103X0600T**
103P103X0600S*
0.047
103P473X0600T
103P473X0600S
0.400 x 1.375 [10.16 x 34.93]
0.10
103P104X0600T**
103P104X0600S*
0.562 x 1.375 [14.27 x 34.93]
0.22
103P224X0600T**
103P224X0600S*
0.670 x 1.875 [17.02 x 47.63]
0.47
103P474X0600T
103P474X0600S
0.750 x 2.375 [19.05 x 60.32]
* The Part Numbers given are for capacitance tolerance of
±
20%. To specify
±
10% tolerance, change X0 to X9.
**
All standard inventoried Part Numbers will be stocked with a
±
10% tolerance (X9).
0.400 x 1.375 [10.16 x 34.93]
0.562 x 1.125 [14.27 x 28.58]
0.562 x 1.875 [14.27 x 47.63]
0.750 x 2.125 [19.05 x 53.98]
0.400 x 1.125 [10.16 x 28.58]
0.400 x 1.375 [10.16 x 34.93]
0.562 x 1.375 [14.27 x 34.93]
0.670 x 1.875 [17.02 x 47.63]
0.400 x 0.875 [10.16 x 22.23]
0.400 x 1.125 [10.16 x 28.58]
0.562 x 1.125 [14.27 x 28.58]
0.562 x 1.875 [14.27 x 47.63]
0.750 x 2.125 [19.05 x 53.98]
NOMINAL CASE SIZE
DxL
ORDERING INFORMATION
103P
TYPE
473
CAPACITANCE
This is expressed in picofarads.
The first two digits are the
significant figures. The third is
the number of zeros to follow.
X0
CAPACITANCE
TOLERANCE
X0 =
±
20%
X9 =
±
10%
(Inventoried)
200
DC VOLTAGE
RATING
This is expressed
in volts.
S
TERMINAL
S = Wire Leads
T = Soldering Tab
Document Number: 42032
Revision 17-Nov-03
For technical questions, contact spresale@vishay.com
www.vishay.com
97
