T496D106M025ATE600C-7280 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T496D106M025ATE600C-7280

T496D106M025ATE600C-7280: DescriptionTantalum Capacitor, Polarized, Tantalum, 25V, 20% +Tol, 20% -Tol, 10uF, 2917; CategoryPassive components capacitor; File Size1MB，6 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T496D106M025ATE600C-7280 Overview

Tantalum Capacitor, Polarized, Tantalum, 25V, 20% +Tol, 20% -Tol, 10uF, 2917

T496D106M025ATE600C-7280 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 2917
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	10 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	600 mΩ
high	2.8 mm
JESD-609 code	e3
length	7.3 mm
Manufacturer's serial number	T496(25V,MTOL)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, 13 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
series	T496(25 V,M TOL)
size code	2917
Terminal surface	Matte Tin (Sn)
width	4.3 mm

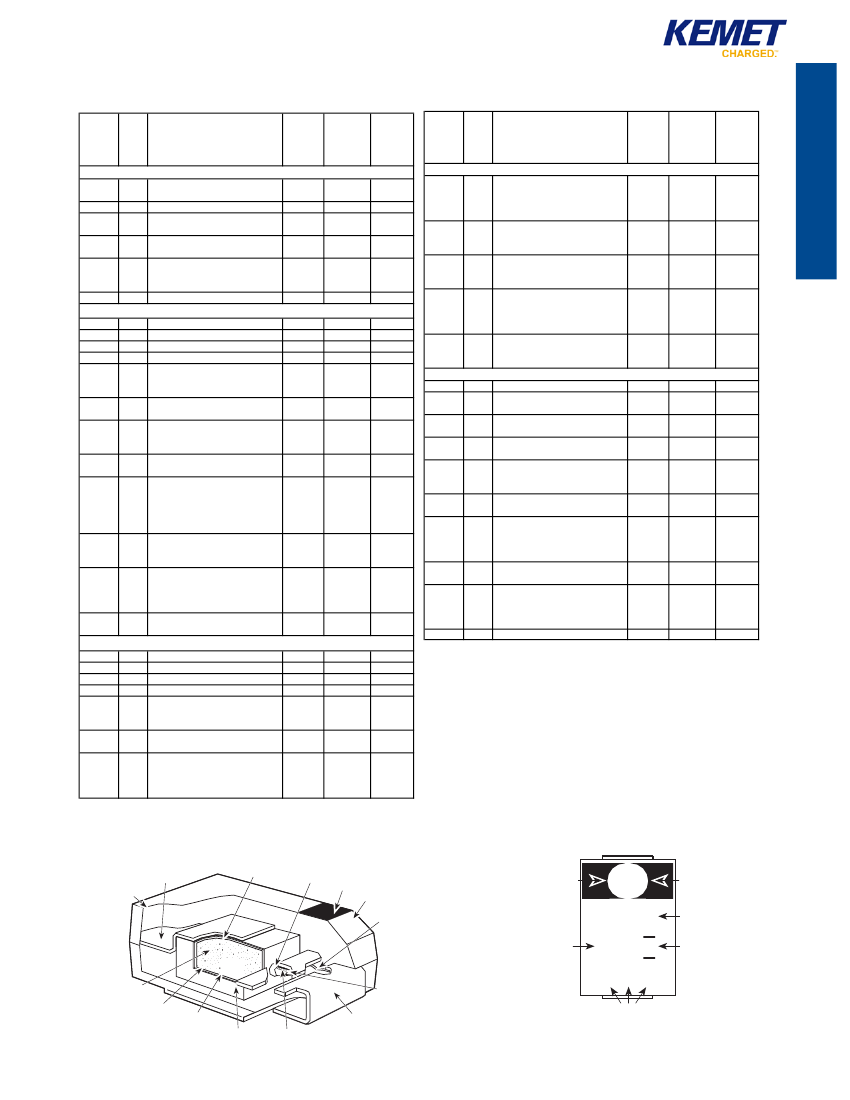

Preview

Download Datasheet

View All

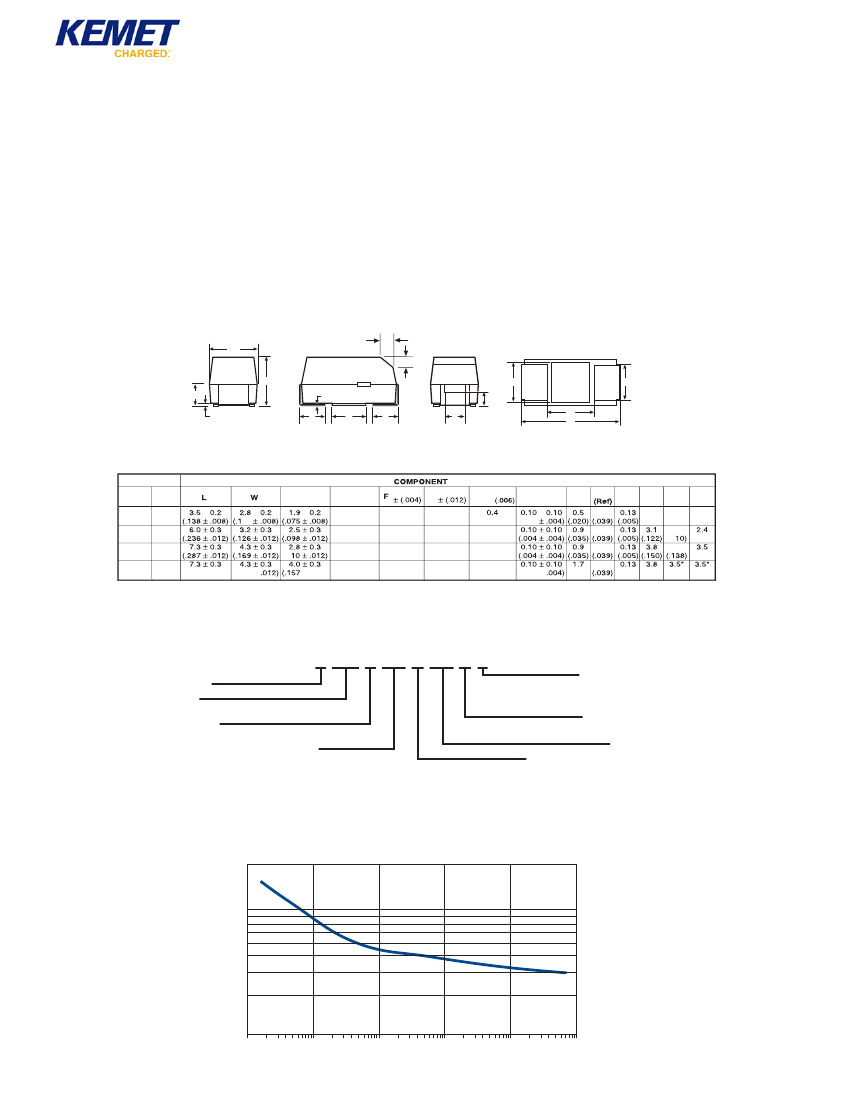

SOLID TANTALUM CHIP CAPACITORS

T496 SERIES—Fail-Safe Fused

FEATURES

•

Built-in fuse protects against damaging short

circuit failure mode

Precision-molded, laser-marked case

Symmetrical, compliant terminations

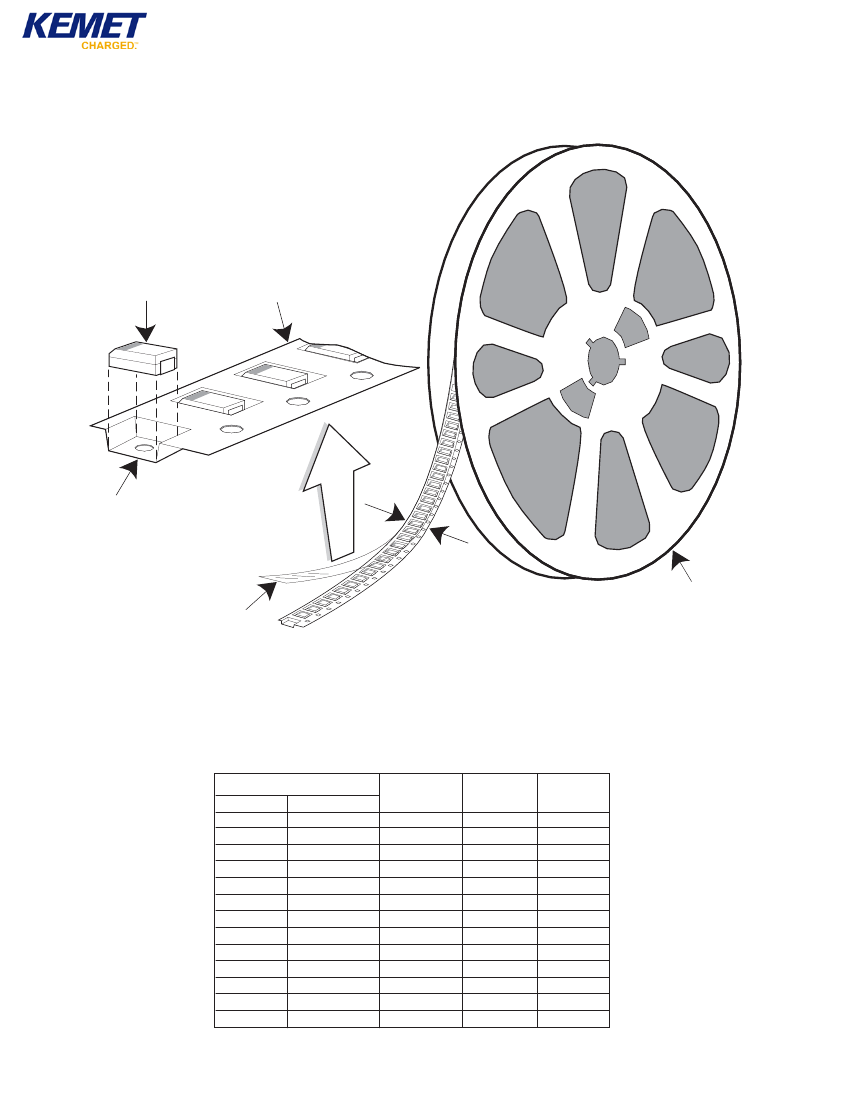

Taped and reeled per EIA 481-1

Case geometry and footprints equivalent to

Industrial Grade T491 Series. (Case sizes

B, C, D and X only)

100% Surge Current test on C, D, X sizes

Patented fuse assembly

Operating Temperature: -55˚C to +125˚C

CATHODE (-) END

VIEW

SIDE VIEW

Test Tab

0.15(0.006) Max.

•

Fuse actuation, 25 C: within 1 second at fault

currents of 4 amps and higher.

Continuous current capability: 0.75 amps

Post-actuation resistance,

25 C: 10 megohms minimum

Test tabs on the sides of the case bypass the

capacitor element to allow direct testing of the

fuse assembly.

RoHS Compliant & Leadfree Terminations (See

www.kemet.com for lead transition)

OUTLINE DRAWINGS

ANODE (+) END

VIEW

BOTTOM VIEW

Termination

cutout at

KEMETs

Option,

either end

DIMENSIONS —

Millimeters (Inches)

CASE SIZE

KEMET

EIA

3528-21

6032-28

7343-31

0.20

(.008)

1.1

(.043)

1.4

(.055)

1.5

(.059)

2.3

(.091)

0.1

2.2

(.087)

2.2

(.087)

2.4

(.094)

2.4

(.094)

0.3

0.8

(.031)

1.3

(.051)

1.3

(.051)

1.3

(.051)

(Ref)

0.15

(.1

7343-43

(.287

.012) (.169

.012)

(.016)

0.5

(.020)

0.5

(.020)

0.5

(.020)

(Ref)

(.004

(Ref)

1.0

(Ref) (Min) (Ref) (Ref)

2.1

1.8

2.2

(.083) (.071) (.087)

2.8

(.1

(.094)

3.5

(.138)

(.005) (.150) (.138) (.138)

(.004

(.067)

Notes:

1. Metric dimensions govern.

2. (Ref) - Dimensions provided for reference only.

* Round glue pad: 2.9 ± 0.1mm (.114" ± .004") in diameter at KEMET’s option.

T496 Series – ORDERING INFORMATION

T 496 B 105 M 025 A S

Tantalum

Series

T496 - Precision Molded, Fail-safe

Lead Material

- 100% Sn (Tin) Plated

- Tin/Lead (SnPb - 5% Pb minimum)

**S

= Not Recommended

new designs

“S”

Not recommended for

Case Size

B, C, D, X

Failure Rate

A - Not Applicable

Capacitance Picofarad Code

First two digits represent significant figures.

Third digit specifies number of zeros to follow.

termination codes do not quarantee Pb-free product.

Voltage

Capacitance Tolerance

20%

10%

*Part

Number Example: T496B105M025AS

spaces). See www.kemet.com for Pb Free transition.

Part

number example: T496B105M025AT (14 digits - no

(14 digits

finishes. Orders including “S” suffix

no spa es)

** “S” Termination codes are converting from

90Sn/10

Pb to 100% tin

Current (Amps)

TYPICAL FUSE ACTUATION PROFILE

*Pb-free supply is not guaranteed with

the ‘S’ termination code.

This termination code not available

effective 15 July 2007.

.0001

.001

.01

Time (Seconds)
