V275LT40CX680 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> V275LT40CX680

V275LT40CX680: DescriptionRESISTOR, VOLTAGE DEPENDENT, 453V, 320J, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size76KB，8 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

V275LT40CX680 Overview

RESISTOR, VOLTAGE DEPENDENT, 453V, 320J, THROUGH HOLE MOUNT, RADIAL LEADED

V275LT40CX680 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Littelfuse
package instruction	RADIAL LEADED
Reach Compliance Code	unknow
ECCN code	EAR99
Circuit maximum DC voltage	453 V
Circuit RMS maximum voltage	275 V
Maximum energy absorption capacity	320 J
JESD-609 code	e0
Manufacturer's serial number	C-III
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	DISK PACKAGE
Package form	Radial
method of packing	TR
Rated power dissipation(P)	1 W
Rated temperature	85 °C
Guideline	CECC42201-006
Resistor type	VARISTOR
surface mount	NO
technology	METAL OXIDE FILM
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	RADIAL
Terminal shape	WIRE

Preview

Download Datasheet

View All

C-III Series

Data Sheet

July 1999

File Number

3540.5

High Energy Radial Lead Varistors

[ /Title

(C-III

Series)

/Sub-

ject

(High

Energy

Radial

Lead

Varis-

tors)

/Autho

r ()

/Key-

words

(Har-

ris

Corpo-

ration,

Sup-

pres-

sion

Prod-

ucts,

TVS,

Tran-

sient

Sup-

pres-

sion,

Protec-

tion,

Line,

Panel,

Light-

ning

Protec-

The C-III Series of metal-oxide varistors are speciﬁcally

designed for high surge energy absorption ratings. This is

achieved through a special dielectric material formulation

which also results in higher repetitive surge ratings than

other MOV types.

The C-III series is primarily intended for use in AC line

Transient Voltage Surge Suppressor (TVSS) product

environment and other similar applications requiring high

transient energy and peak current capability in a relatively

small package size.

The C-III series is supplied in 14 and 20mm disc versions

with various lead options.

These types are shipped in bulk or Tape and Reel

packaging. Part number and brand information is provided in

the Ratings table.

Features

• Recognized as “Transient Voltage Surge Suppressors” to

UL 1449; File # E75961, Second Edition

• CSA Certification to Standard C22.2, No. 1; File #LR91788

• VDE Certiﬁed - License Number 116895E

• CECC Certiﬁed to 42201-006

• High Energy Absorption Capability

. . . . . . . . . . . . . . . . . . . . . . . . . . . 45J to 210J (2ms)

• High Pulse Life Rating

• High Peak Pulse Current Capability

. . . . . . . . . . . . . . . . . . . . . . .6000A to 9000A (8/20µs)

• Wide Operating Voltage Range

M(AC)RMS

. . . . . . . . . . . . . . . . . . . . . . . . . . 130V to 320V

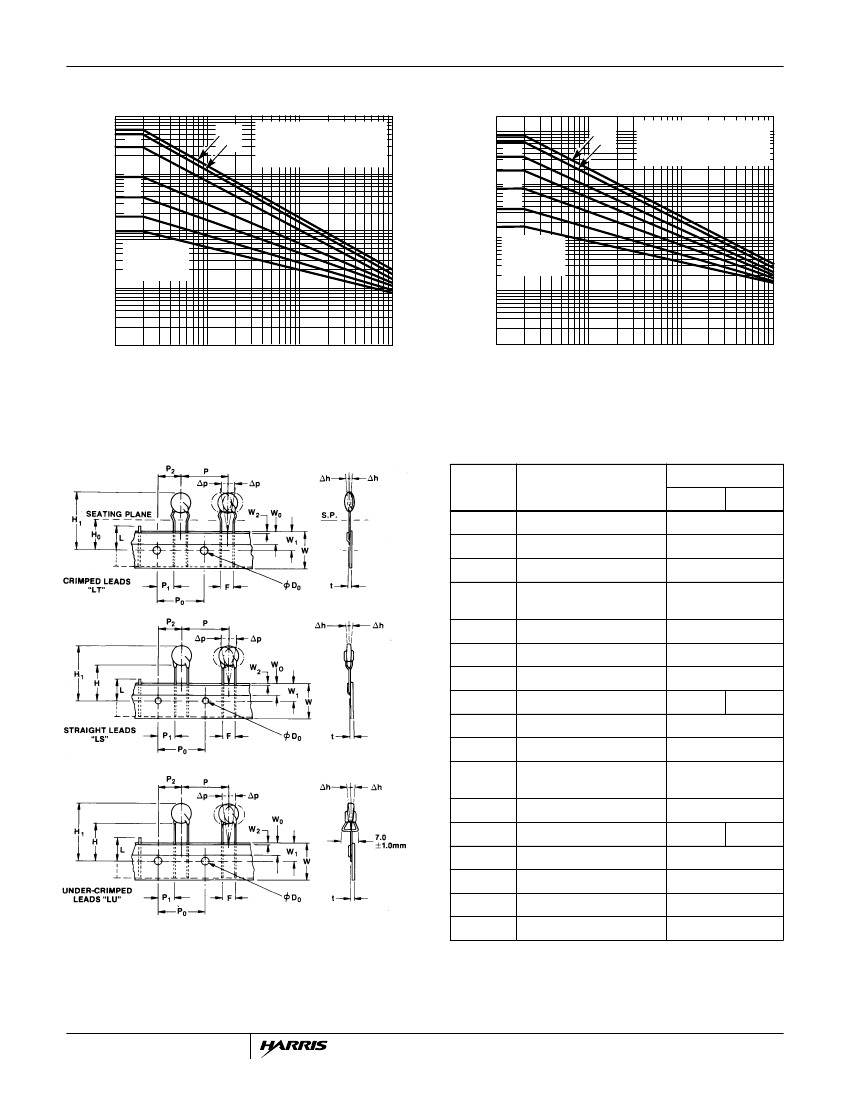

• Available in Tape and Reel for Automatic Insertion; Also

Available with Crimped and/or Trimmed Lead Styles

• No Derating Up to 85

C Ambient

Packaging

C-III SERIES

4-16

1-800-4-HARRIS or 407-727-9207

Harris Corporation 1999
