LTC1062CJ8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LTC1062CJ8

PDF

LTC1062CJ8: DescriptionSwitched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, CDIP8, CERDIP-8; CategoryAnalog mixed-signal IC filter; File Size469KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

LTC1062CJ8 Overview

Switched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, CDIP8, CERDIP-8

LTC1062CJ8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	CERDIP-8
Contacts	8
Reach Compliance Code	_compli
ECCN code	EAR99
Active filter type	SWITCHED CAPACITOR FILTER
Other features	ZERO DC ERROR
Center frequency or cutoff frequency maximum range	20 kHz
Center frequency or cutoff frequency minimum range
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-8 V
Negative supply voltage minimum (Vsup)	-2.375 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Order	5TH
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
poles and zeros	5 AND 0
power supply	+-5 V
Certification status	Not Qualified
response	LOWPASS
Maximum seat height	5.08 mm
Maximum supply current (Isup)	10 mA
Maximum supply voltage (Vsup)	8 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transfer characteristics	BUTTERWORTH
width	7.62 mm

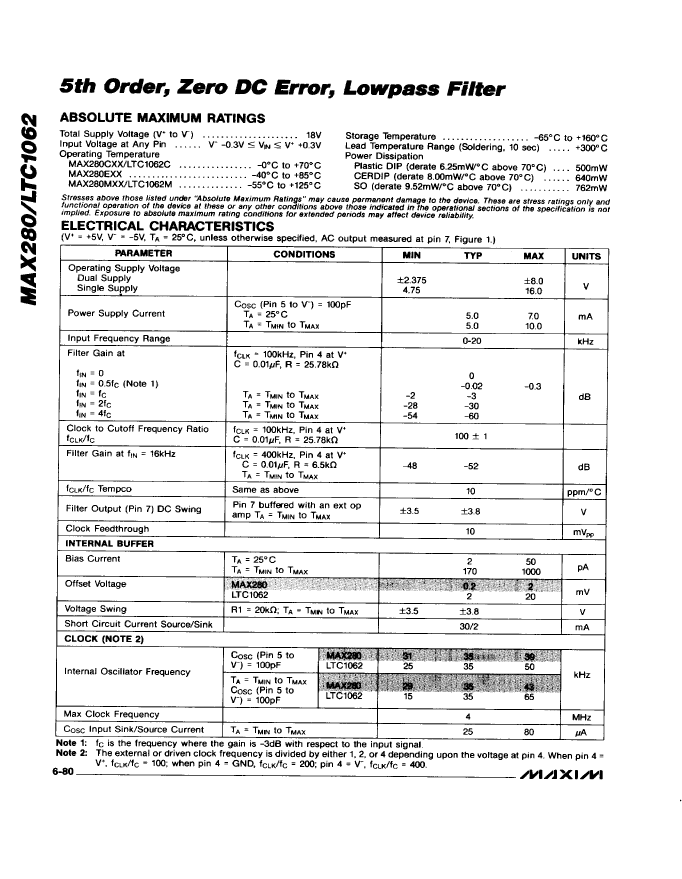

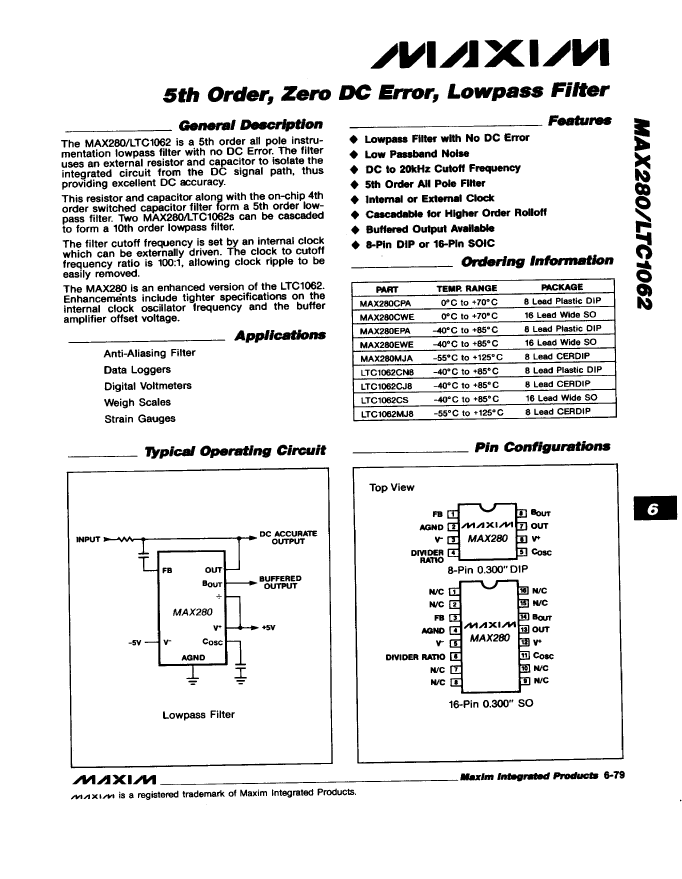

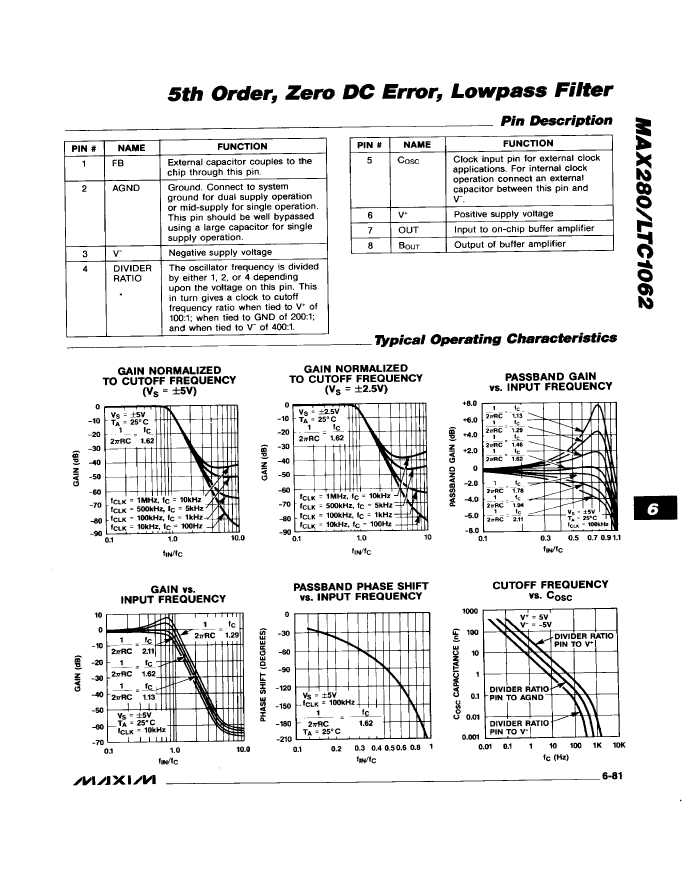

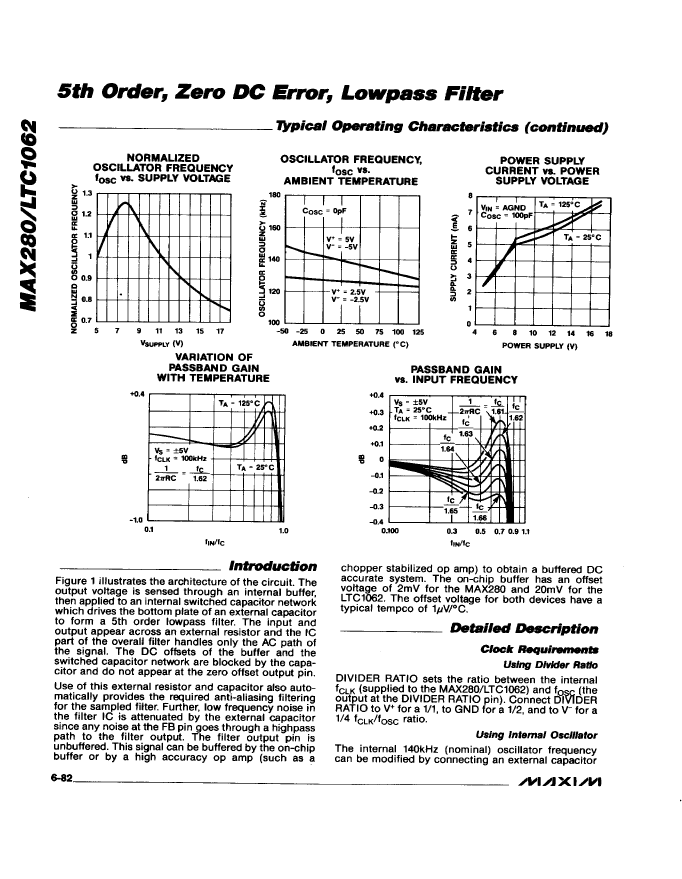

LTC1062CJ8 Preview

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LTC1062CJ8 Related Products

	LTC1062CJ8	LTC1062CN8	LTC1062MJ8
Description	Switched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, CDIP8, CERDIP-8	Switched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, PDIP8, PLASTIC, DIP-8	Switched Capacitor Filter, 1 Func, Butterworth, Lowpass, CMOS, CDIP8, CERDIP-8
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim
Parts packaging code	DIP	DIP	DIP
package instruction	CERDIP-8	PLASTIC, DIP-8	CERDIP-8
Contacts	8	8	8
Reach Compliance Code	_compli	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Active filter type	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER
Other features	ZERO DC ERROR	ZERO DC ERROR	ZERO DC ERROR
Center frequency or cutoff frequency maximum range	20 kHz	20 kHz	20 kHz
JESD-30 code	R-GDIP-T8	R-PDIP-T8	R-GDIP-T8
JESD-609 code	e0	e0	e0
Maximum negative supply voltage (Vsup)	-8 V	-8 V	-8 V
Negative supply voltage minimum (Vsup)	-2.375 V	-2.375 V	-2.375 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	70 °C	70 °C	125 °C
Order	5TH	5TH	5TH
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
poles and zeros	5 AND 0	5 AND 0	5 AND 0
power supply	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS	LOWPASS
Maximum seat height	5.08 mm	4.572 mm	5.08 mm
Maximum supply current (Isup)	10 mA	10 mA	10 mA
Maximum supply voltage (Vsup)	8 V	8 V	8 V
Minimum supply voltage (Vsup)	2.375 V	2.375 V	2.375 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transfer characteristics	BUTTERWORTH	BUTTERWORTH	BUTTERWORTH
width	7.62 mm	7.62 mm	7.62 mm
